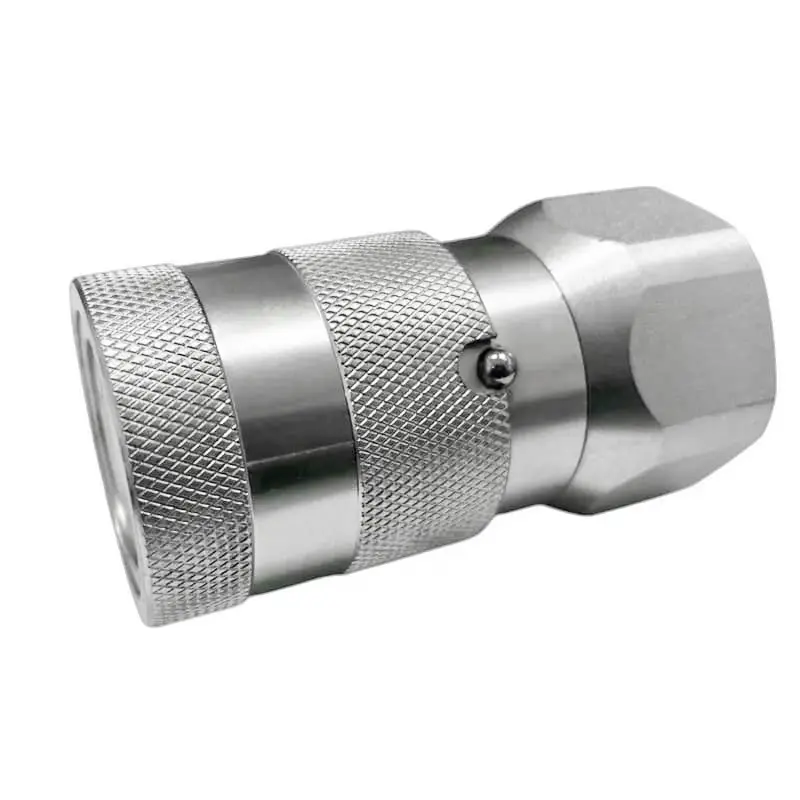

1″ Flat Face High Flow Hydraulic Quick Connect Female Coupler, 1-1/4″ NPT Thread

1″ Flat Face High Flow Hydraulic Quick Connect Female Coupler – 1-1/4″ NPT

SKU: FF1F-20N-GEM

The  1″ Flat Face High Flow Hydraulic Quick Connect Female Coupler with a 1-1/4″ NPT thread is engineered for demanding hydraulic applications, providing exceptional durability, reliability, and efficiency.

Constructed from hardened carbon steel with a galvanized treatment, this coupler offers outstanding corrosion resistance, making it ideal for agriculture, industrial, marine, construction, heavy equipment, mining, and drilling applications. Its flush face valve design minimizes fluid loss and air inclusion, ensuring cleaner and more efficient operation.

Designed for quick, single-handed connections, this coupler features a push-connect mechanism and a high-performance nipple seal that prevents blow-outs and leaks, even in high-pressure conditions. Additionally, it is fully interchangeable with ISO 16028 standard couplings, ensuring seamless integration into existing hydraulic systems.

Key Benefits:

• Durable Carbon Steel Construction – Withstands harsh working conditions and heavy-duty use.
• Galvanized Treatment – Provides superior corrosion resistance for extended service life.
• Flush Face Valve Design – Reduces fluid loss and air contamination, improving system cleanliness.
• Minimal Pressure Drop – Ensures efficient hydraulic performance.
• Single-Handed Push-Connect Design – Allows for quick and easy connections.
• Blowout-Resistant Nipple Seal – Prevents leaks and enhances system reliability.
• ISO 16028 Compatibility – Fully interchangeable with standard flat face couplers.

Technical Specifications:

• Max Pressure Rating: 5,075 PSI
• Female Face Diameter: 2.15”
• Female Length: 4.06”
• Hex Size: 1.97”
• Thread Type: NPT
• Thread Size: 1-1/4”
• Body Size: 1”
• Body Material: Hardened Steel
• Weight: 2.92 lbs

Kit Includes:

1 Female Coupler

This high-flow hydraulic coupler is designed for demanding environments where leak-free, secure, and high-efficiency hydraulic connections are essential.
