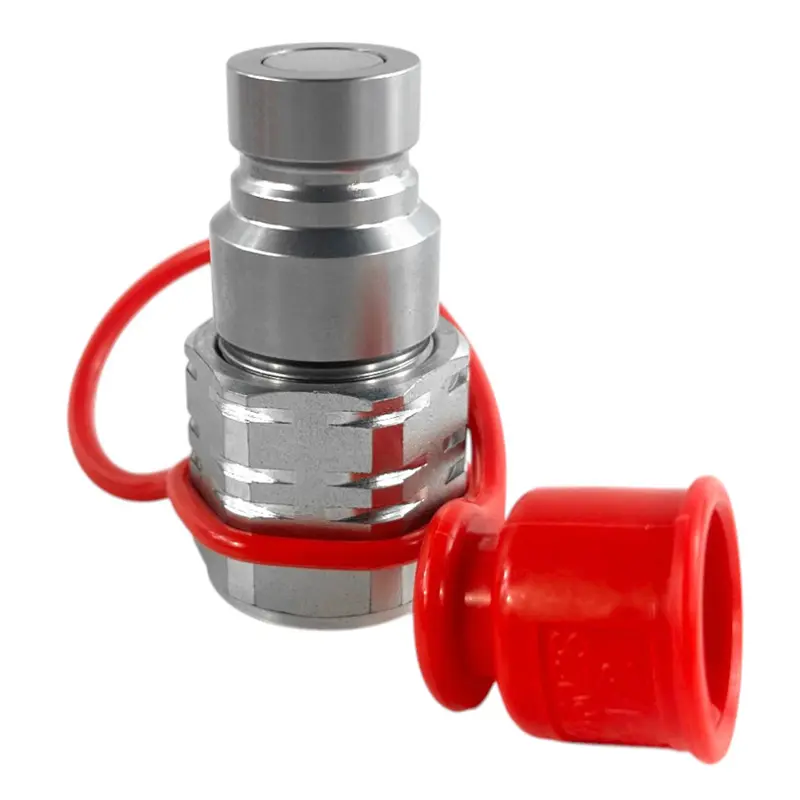

Flat Face Hydraulic Quick Connect Male Coupler – 3/4” SAE ORB Thread
SKU: FF12M-12S
ISO Body Size: 1/2”
Port Thread: 3/4″ SAE (1-1/16″ Female O-Ring Boss)
High-Performance Hydraulic Quick Coupler
The FF12M-12S is a flat face male coupler designed to meet ISO 16028 standards, ensuring compatibility with leading hydraulic systems. The flush face design significantly reduces fluid loss and air inclusion, making it ideal for construction, agriculture, and industrial machinery applications.
Key Benefits:
- Flush Face Design – Prevents fluid leaks and air contamination
- Zinc-Nickel Plating – Provides superior corrosion resistance
- 5,076 PSI Rating – Handles high-pressure applications
- Hardened Steel Construction – Ensures long-lasting durability
- Minimal Pressure Drops – Improves hydraulic efficiency
- Single-Handed Push-to-Connect – For quick and easy operation
- Interchangeable with ISO 16028 Couplings – Compatible with major brands
Technical Specifications:
- Max Working Pressure: 5,076 PSI
- Max Flow Rate: 23.78 GPM
- Nominal Flow Rate: 12 GPM
- Seal Material: Buna-N with Teflon backup ring (operates up to 250°F)
- Locking Type: Ball Lock
- ISO Standard: 16028
Dimensions:
- Face Diameter: 0.94” (24.5mm)
- Length: 2.87” (73mm)
- Hex Size: 1.42” (36mm)
- Weight: 0.68 lbs
- Package Dimensions: 6 × 3 × 3 in
Cross Reference (Compatible Replacements):
| Manufacturer | Part Number |
|---|---|
| SUMMIT | FF12M-12S |
| Parker FE Series | FEM-502-12FO |
| Safeway FFE49 Series | FFE491-4-12 |
| Faster FFH Series | FFH08 34SAE M |
| Eaton Aeroquip FD89 | FD89-1004-12-08 |
| Snap Tite 74 Series | 74N8-12EM |
| Stucchi FIRG Series | 800804009 |
| Dixon HT Series | HT4OF6 |
| DNP PLT4 Series | FF-HPG-08-12N-SAE |
| Tomco FE Series | EP4-12 |
Compatible Equipment:
- Bobcat (2001 or older) – 7753, 773, 863, 873, 963
- John Deere – 325, 328, 332
- GEHL – 4640, 4840, 5640, 6640
- Volvo – MC90, MC110
- ASV – RC100
Product Details:
- Style: Flat Face
- ISO Body Size: 1/2″
- Thread Type: SAE/ORB
- Thread Size: 3/4″
- Body Material: Hardened Steel
- Coupling Type: Male (Plug)
- Brand: AKSpare
Complete Set Available – This male coupler connects to its female equivalent. We also offer a full coupler set (male + female) for convenience and efficiency.
