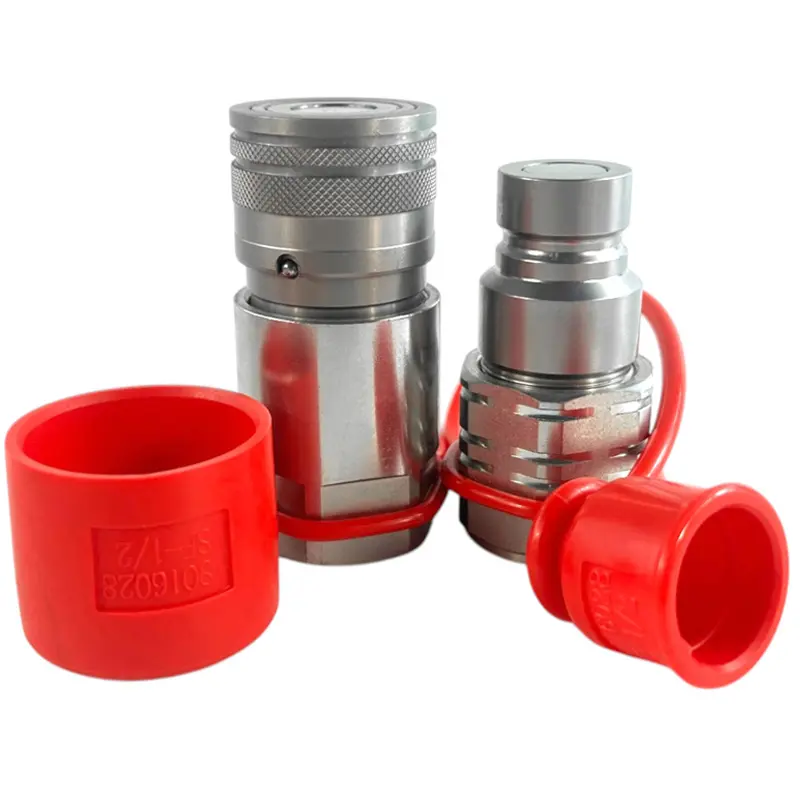

1/2” Flat Face Hydraulic Quick Coupler Set – M22 Thread
SKU: FF12-22M-SET
This 1/2” ISO 16028 flat face quick coupler set is designed for high-pressure hydraulic applications, offering reliable, leak-free connections with M22 female threads. Engineered with hardened steel construction, zinc-nickel plating, and a secure locking sleeve, this coupler set ensures long-lasting durability and superior corrosion resistance.
Key Benefits & Features
- Heavy-Duty Design – Withstands up to 5,076 PSI for high-pressure applications.
- Flat Face Design – Reduces fluid loss and prevents air inclusion.
- Corrosion-Resistant Plating – Zinc-nickel coating provides enhanced protection.
- Compact & High Flow Performance – Optimized for 23.78 GPM max flow rate.
- Secure Locking Sleeve – Prevents accidental disconnections.
- Minimal Pressure Drop – Efficient valve design for improved performance.
- Single-Handed Operation – Quick push-connect functionality.
- Temperature Resistant Seals – Buna-N seals with Teflon backup ring, rated up to 250°F.
Specifications
- Body Size: 1/2″
- Thread Type: M22 Female
- Max Pressure: 5,076 PSI
- Max Flow Rate: 23.78 GPM
- Nominal Flow Rate: 12 GPM
- Seals: Buna-N with Teflon backup ring (operates up to 250°F)
- Male Face Diameter: 0.94” (24.5mm)
- Female Face Diameter: 1.50” (38mm)
- Male Hex Size: 1.41” (36mm)
- Female Hex Size: 1.42” (36mm)
- Weight: 2 lbs
Additional Details
- Style: Flat Face
- Body Material: Hardened Steel
- Locking Type: Ball
- Brand: AKSpare
Ideal for hydraulic systems in construction, agriculture, and industrial equipment, this M22-threaded quick coupler set ensures durability, efficiency, and leak-free performance in demanding applications.
