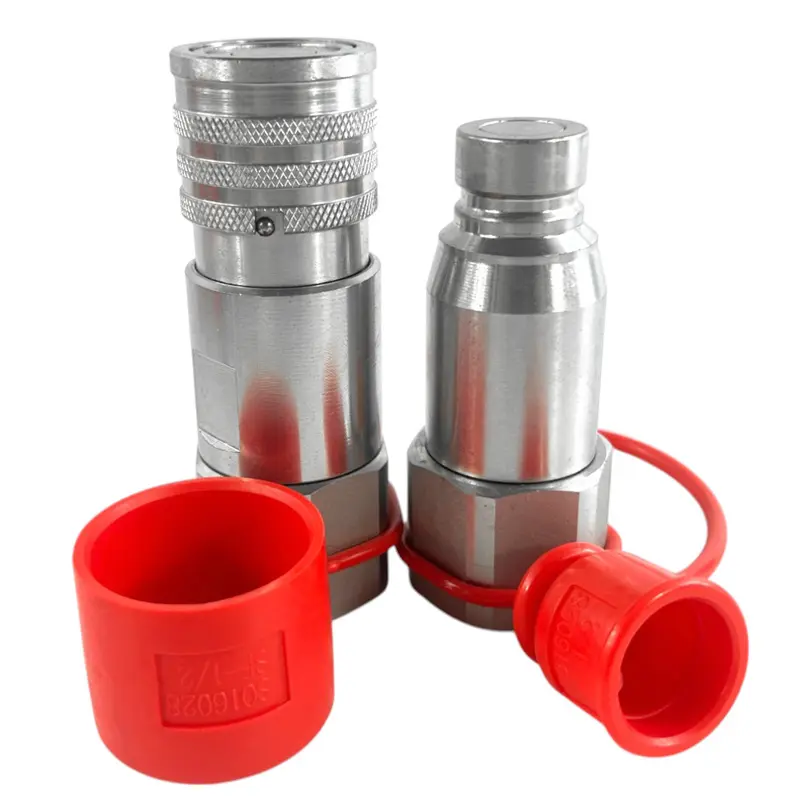

Flat Face Connect Under Pressure Hydraulic Quick Connect Coupler Set, 3/4″ NPT Thread

1/2” Flat Face Hydraulic Quick Coupler Set – 3/4” NPT (Connect Under Pressure)

SKU: FFP12-12N-SET

This 1/2” ISO 16028 flat face quick coupler set is designed for high-pressure hydraulic applications, allowing you to connect under pressure without fluid loss or contamination. Featuring a flush face design, a zinc-nickel plated finish for corrosion resistance, and hardened steel construction, this coupler set ensures superior durability and leak-free performance.

Key Benefits & Features

• Connect Under Pressure – Allows connection even when the hydraulic line is pressurized.
• Flat Face Design – Minimizes fluid loss and prevents air inclusion.
• Hardened Steel Build – Designed for extreme durability in demanding applications.
• High Pressure & Flow Capacity – Handles up to 5,076 PSI with a 23.78 GPM max flow rate.
• Easy Single-Handed Operation – Quick push-connect design for convenience.
• Secure Locking Sleeve – Prevents accidental disconnections.
• ISO 16028 Interchangeable – Compatible with various industry-standard couplers.

Specifications

• body Size: 1/2″
• Port Thread: 3/4” NPT
• Max Pressure: 5,076 PSI
• Max Flow Rate: 23.78 GPM
• Nominal Flow Rate: 12 GPM
• Seals: Buna-N with Teflon backup ring (operates up to 250°F)
• Male Face Diameter: 0.94” (24.5mm)
• Female Face Diameter: 1.50” (38mm)
• Male Length: 3.75” (95mm)
• Female Length: 3.43” (87mm)
• Male Hex: 1.34” (34mm)
• Female Hex: 1.42” (36mm)
