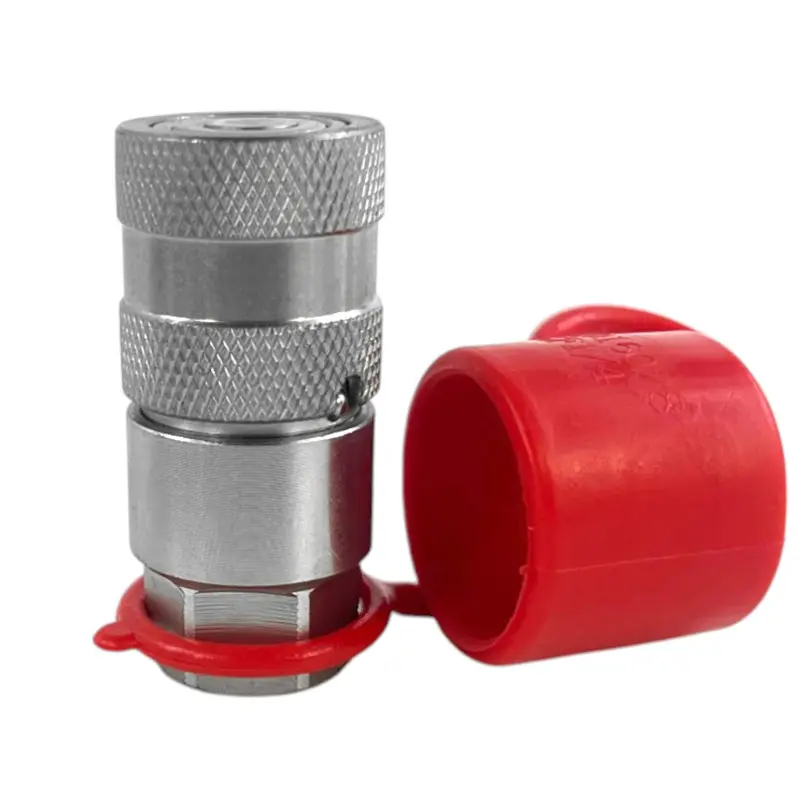

Direct Replacement for Bobcat® 7246786 Hydraulic Female Flat Face Quick Coupler

Direct Replacement for Bobcat® 7246786 Hydraulic Female Flat Face Quick Coupler

SKU: 7246786

This hydraulic female flat face coupler is designed as a direct replacement for Bobcat® part number 7246786. Built to ISO 16028 standards, it provides reliable, leak-free connections in compact hydraulic systems. Ideal for skid steers, mini excavators, and other equipment requiring a 1/4″ body size coupler.

Specifications:

• ISO Body Size: 1/4″
• Thread Type: ORB
• Thread / Port Size: 9/16-18
• Coupling Type: Female (Coupler)
• Body Material: Hardened Steel
• Plating: Zinc Nickel for corrosion resistance

Features:

• Flush Face Valve Design: Minimizes fluid loss during disconnection.
• Low Pressure Drop: Allows efficient hydraulic performance.
• Single-Handed Operation: Easy push-to-connect mechanism.
• Durable Construction: Hardened steel body and sleeves resist wear and tear.
• Reliable Sealing: Nipple seal resists blow-outs; seals rated up to 250˚F.
• High Working Pressure: Rated for up to 5,076 PSI.
• Interchangeable: Compatible with other ISO 16028 standard flat face couplers.

Fit the following Bobcat Equipment

All Wheel Loaders:

• A220, A300, A770

Skid Steer Loaders:

• 653, 751, 753, 763, 773, 853, 863, 864, 873, 883, 963, 3650, S130, S150, S160, S175, S185, S205, S220, S250, S300, S330, S450, S510, S530, S550, S570, S590, S595, S630, S650, S740, S750, S770, S850

Track Loaders:

• T140, T180, T190, T200, T250, T300, T320, T450, T550, T590, T595, T630, T650, T740, T750, T770, T870

Attachments:

• Angle Broom, Backhoe, Grapple, Planer, Snow Blade, Snowblower, Trencher, V-Blade, Wheel Saw

Packaging Details:

• Weight: 1.24 lbs
• Dimensions: 6 × 3 × 3 in

Upgrade or replace your worn Bobcat® 7246786 female coupler with this high-quality, corrosion-resistant flat face alternative from AKSpare. Designed for performance, ease of use, and compatibility.
