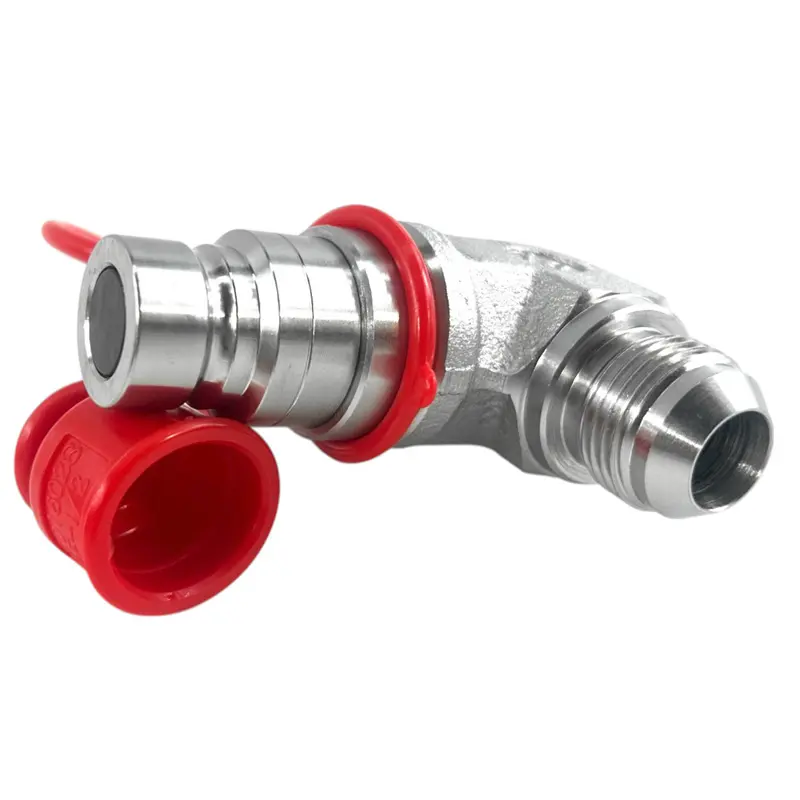

90 Degree Male Flat Face Hydraulic Quick Connect Coupler Set, 3/4″ JIC Male Thread

1/2” ISO 16028 Flush Face Hydraulic Male Coupler – 90° Male 3/4” JIC

High-Performance 90° Hydraulic Coupler for Secure & Efficient Connections

The FF12M-12J-90 is a heavy-duty flat face hydraulic male coupler designed for maximum durability and efficiency in demanding hydraulic applications. With a 90-degree connection angle, this coupler reduces strain on hydraulic lines, prevents hose damage, and allows for low-profile mounting without additional fittings. Its flush face design minimizes fluid loss and air inclusion, ensuring a cleaner, leak-free connection every time.

Key Benefits:

• 90° Connection Angle – Protects hydraulic lines by preventing kinks and excessive bending
• Flush Face Design – Reduces contamination, fluid loss, and air inclusion
• Push-to-Connect Operation – Enables fast, one-handed connection for ease of use
• Zinc-Nickel Plating – Provides superior corrosion resistance for extended service life
• Hardened Steel Construction – Built for strength and durability, even in extreme conditions
• Minimal Pressure Drop – Ensures smooth and efficient hydraulic flow
• ISO 16028 Standard – Fully interchangeable with other industry-standard flat face couplings

Specifications:

• ISO Body Size: 1/2”
• Port Thread: Male 3/4” JIC (#12 JIC)
• Maximum Pressure: 5,076 PSI
• Nominal Flow Rate: 12 GPM
• Seal Material: Buna-N with Teflon backup ring (operates up to 250°F)
• Male Face Diameter: 0.94” (24.5mm)
• Male Length: 3.7” (94mm)
• Hex Size: 1.42” (36mm)
• Locking Type: Ball Lock
• Body Material: Hardened Steel

Industry-Standard Compatibility:

This coupler is fully interchangeable with other ISO 16028 standard couplings from leading manufacturers:
