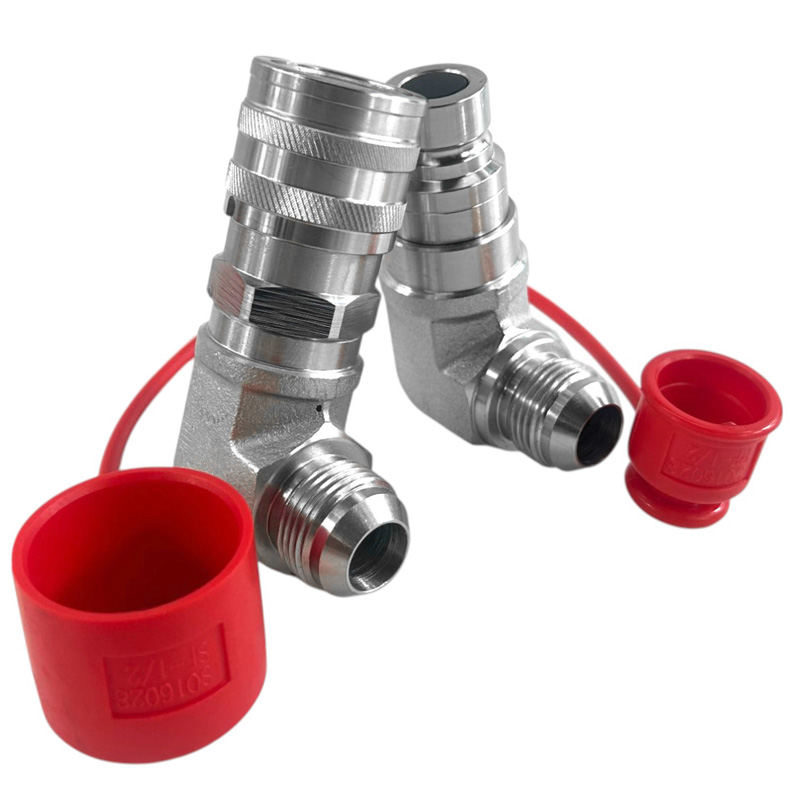

90 Degree Flat Face Hydraulic Quick Connect Coupler Set, 3/4″ JIC Male Thread

1/2” ISO 16028 Flush Face Hydraulic Coupler Set – 90° Male 3/4” JIC

Premium 90° Hydraulic Coupler Set for Heavy-Duty Applications

The FF12-12J-90-SET is a high-performance flat face hydraulic coupler set designed to provide secure, leak-free connections while protecting hydraulic lines from strain and damage. With a 90-degree connection angle, this set enables low-profile mounting without additional fittings, making it an ideal solution for skid steer grapples, excavator boom arms, and other hydraulic attachments.

Key Benefits:

• 90° Connection Angle – Reduces stress on hydraulic hoses and prevents kinking
• Flush Face Design – Minimizes fluid loss and air inclusion for a cleaner connection
• Easy One-Handed Operation – Push-to-connect functionality simplifies use in the field
• Secure Locking Sleeve – Prevents accidental disconnection in high-vibration environments
• Zinc-Nickel Plating – Provides superior corrosion resistance for long-lasting performance
• Hardened Steel Construction – Built for durability with reinforced sleeves
• Optimized Flow Efficiency – Minimal pressure drop ensures smooth hydraulic performance
• ISO 16028 Interchangeability – Compatible with other industry-standard flat face couplings

Specifications:

• ISO Body Size: 1/2”
• Port Thread: Male 3/4” JIC (#12 JIC)
• Maximum Pressure: 5,076 PSI
• Nominal Flow Rate: 12 GPM
• Seal Material: Buna-N with Teflon backup ring (operates up to 250°F)
• Female Face Diameter: 1.50” (38mm)
• Male Face Diameter: 0.94” (24.5mm)
• Female Length: 3.39” (86mm)
• Male Length: 3.7” (94mm)
• Hex Size: 1.42” (36mm)
• Locking Type: Ball Lock
• Body Material: Hardened Steel

Industry-Standard Compatibility:

This coupler set is fully interchangeable with other ISO 16028 standard couplings, ensuring seamless compatibility with major brands:
