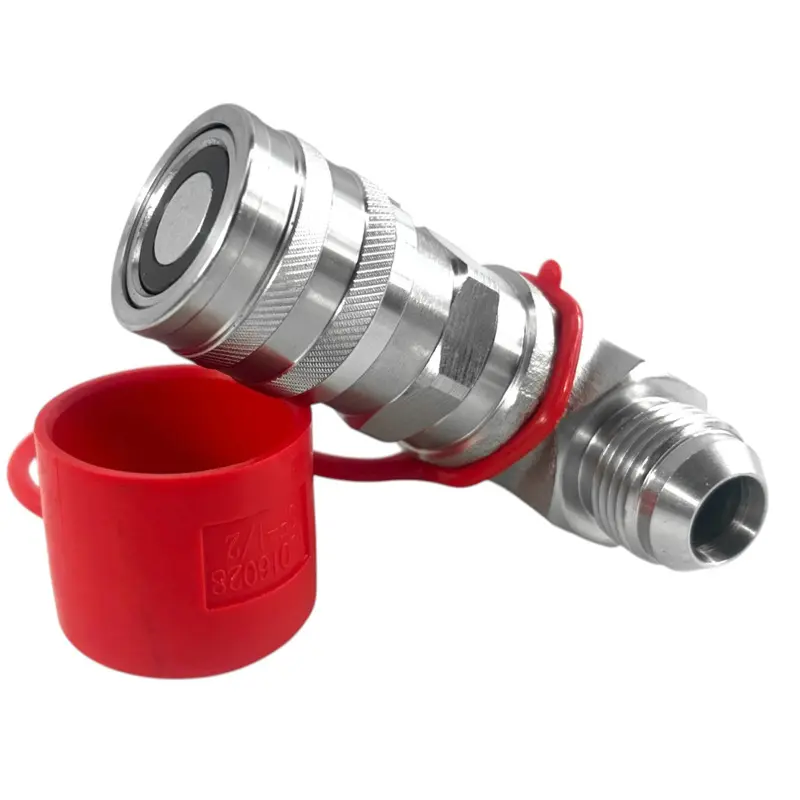

ISO 16028 Flat Face Hydraulic Coupler – Male 3/4” JIC (#12 JIC)
SKU: FF12F-12J-90
Body Size: 1/2”
Port Thread: Male 3/4” JIC (#12 JIC)
This high-performance ISO 16028 hydraulic coupler is designed for applications where reliable, efficient connections are critical. With a 90-degree connection angle, it prevents hydraulic line damage while ensuring minimal fluid loss and air inclusion. Perfect for adding a grapple to a skid steer or for use on an excavator boom arm, this coupler is built for durability and ease of use. The locking sleeve prevents accidental disconnection, and the zinc-nickel plating offers superior corrosion resistance for long-lasting reliability.
Key Benefits:
- 90-Degree Connection Angle: Minimizes strain on hydraulic lines, reducing the risk of damage.
- Low Profile Design: Allows for easy mounting without the need for extra fittings.
- Flush Face Valve: Minimizes fluid loss and air inclusion for cleaner operation.
- Locking Sleeve: Ensures a secure connection, preventing accidental disconnections.
- Superior Corrosion Resistance: Zinc-nickel plating extends the coupler’s lifespan in harsh environments.
- Durable Construction: Hardened steel body and sleeves provide exceptional strength and wear resistance.
- Minimal Pressure Drop: Ensures efficient hydraulic performance.
- Single-Handed Push-Connect Design: Quick and easy connection with one hand.
- Nipple Seal: Resists blow-outs for reliable performance under pressure.
- ISO 16028 Standard: Fully interchangeable with other ISO 16028 compliant couplers for versatile applications.
Specifications:
- Pressure Rating: 5,076 PSI
- Flow Rate: 12 GPM Nominal
- Seals: Buna-N Seals with Teflon backup ring (operates up to 250°F)
- Female Face Diameter: 1.50” (38mm)
- Female Length: 3.39” (86mm)
- Hex Size: 1.42” (36mm)
Interchangeable With:
- SUMMIT: FF12F-12J-90
- Faster: FFH08-61/34SAE F
- Holmbury: H12-F-12JM90
Weight: 1.45 lbs
Dimensions: 6 × 6 × 4 in
Body Material: Hardened Steel
Thread Type: JIC
Locking Type: Ball
