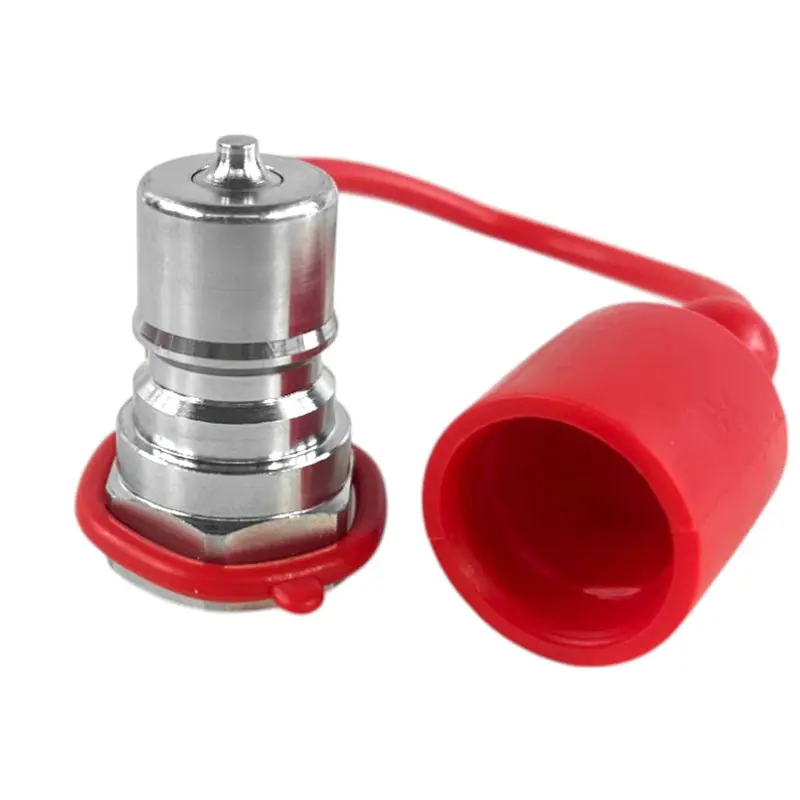

3/8″ NPT ISO 7241-B Quick Disconnect Hydraulic Male Coupler

3/8″ ISO 7241-B Quick Coupler – Male (3/8″ NPT Thread)

• SKU: B38M-06N
• ISO Standard: 7241-B
• Body Size: 3/8″
• Thread Type: NPT
• Thread Size: 3/8″ NPT
• Coupling Type: Male Coupler
• Body Material: Hardened Steel

Reliable & High-Performance Hydraulic Quick Coupler

The B38M-06N quick disconnect coupler is designed to ISO 7241-B standards, ensuring full compatibility with all standard ISO 7241-B hydraulic couplings. This male coupler features a self-sealing poppet valve, radial locking balls, and a corrosion-resistant finish, making it ideal for industrial machinery, mobile hydraulics, automotive, aerospace, and general-purpose hydraulic applications.

Key Features & Benefits:

• ISO 7241-B Interchangeable – Works with all standard ISO 7241-B couplings
• Hardened Steel Body – Ensures long-lasting durability and strength
• Corrosion-Resistant ZN-Fe (CRIII) Plating – Protects against wear and rust
• Leak-Proof Sealing – Self-sealing poppet valve ensures secure operation
• 304 Stainless Steel Spring – Built for long-lasting performance
• Radial Locking Balls – Provides secure coupling under high loads
• 3600 PSI Pressure Rating – High-pressure capability for hydraulic systems
• Compact & Lightweight – Ideal for tight-space installations

Technical Specifications:

• Body Material: Hardened Steel
• Finish: ZN-Fe (CRIII) Plating
• Seal Material: NBR (Buna-N)
• Spring Material: 304 Stainless Steel
• Max Working Pressure: 3,600 PSI
• Burst Pressure (Coupled): 14,500 PSI
• Nominal Flow Rate: 6.5 GPM
• Max Flow Rate: 12.15 GPM
• Locking Type: Sleeve Lock

Dimensions:

Male Coupler:

• Face Diameter: 0.75” (19mm)
• Length: 1.67” (42.5mm)
• Hex Size: 0.86” (22mm)
