High-Quality Hydraulic Quick Coupler for Various Applications

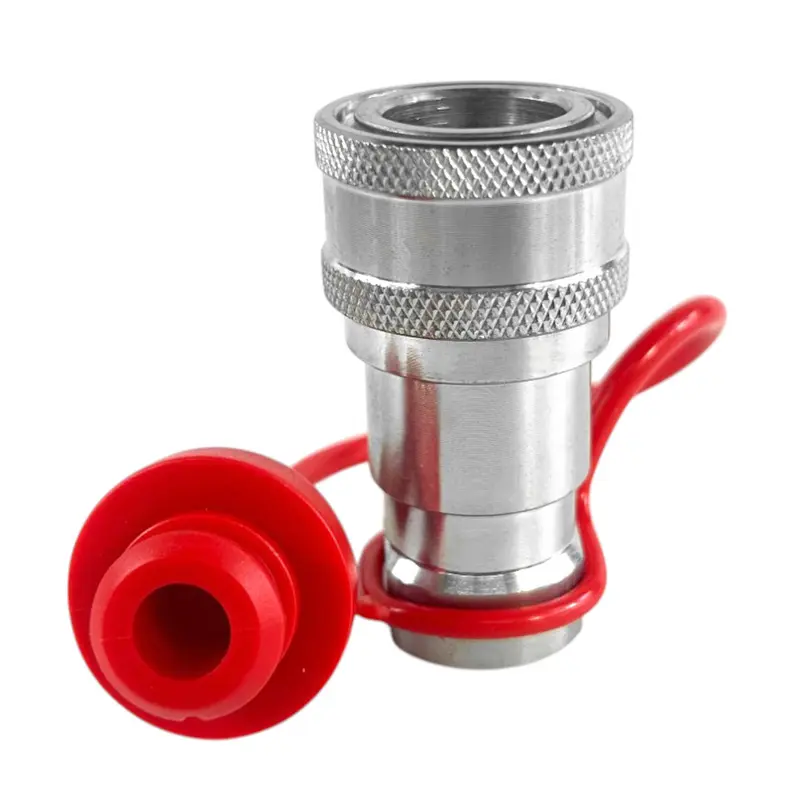

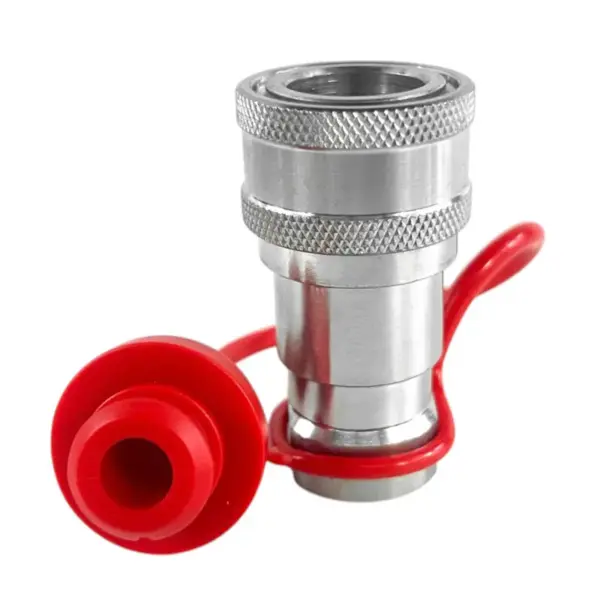

The B38F-06N quick disconnect coupler is designed to meet ISO 7241-B standards, ensuring seamless compatibility with a wide range of hydraulic applications across aerospace, automotive, industrial machinery, and mobile hydraulics. Built with hardened steel construction, a self-sealing poppet valve, and radial locking balls, this coupler offers secure and leak-proof hydraulic connections under both high and low pressures.
Key Features & Benefits:
- ISO 7241-B Interchangeable – Compatible with all standard ISO 7241-B couplings
- Heavy-Duty Carbon Steel Body – Ensures long-lasting performance
- Corrosion-Resistant Finish – ZN-Fe (CRIII) plating for enhanced durability
- Reliable Sealing – Self-sealing poppet valve maintains a tight connection under pressure
- High-Pressure Rated – 3,600 PSI working pressure and 14,500 PSI burst pressure
- 304 Stainless Steel Spring – Provides superior strength and corrosion resistance
- Compact & Efficient – Ideal for mid-size hydraulic systems requiring precise flow control
Technical Specifications:
- Body Material: Hardened Steel
- Finish: ZN-Fe (CRIII) Plating
- Spring Material: 304 Stainless Steel
- Seal Material: NBR (Buna-N)
- Max Working Pressure: 3,600 PSI
- Burst Pressure (Coupled): 14,500 PSI
- Nominal Flow Rate: 6.5 GPM
- Max Flow Rate: 12.15 GPM
- Locking Type: Sleeve Lock
Dimensions:
Female Coupler
- Face Diameter: 1.38” (35mm)
- Length: 2.57” (65mm)
- Hex: 0.86” (22mm)
Interchangeable With:
| Manufacturer | Female Coupler |
|---|---|
| SUMMIT | B38F-06N |
| Parker 60 Series | H3-62 |
| Safeway S10 Series | S105-3 |
| Faster HNV | HNV 38 NPT F |
| Snap-Tite 72 Series | 72C6-6F |
| Stucchi IRB Series | F IRB38 NPT (800601004) |
| Dixon H-Series | 3HF3 |
| Eaton HK Series | 3H21 |
| DNP HNV Series | HNV-06-06-C-NPT |
What’s Included?
- 1 x Female Quick Coupler
Product Details:
- ISO Standard: 7241-B
- Style: ISO 7241-B
- Body Size: 3/8″
- Thread Type: NPT
- Thread Size: 3/8″
- Body Material: Hardened Steel
- Locking Type: Sleeve Lock
- Weight: 0.43 lbs
- Brand: AKSpare
Perfect for Various Hydraulic Applications:
- Aerospace, Automotive, Electronics, and Industrial Machinery
- Hydraulic Systems in General-Purpose and Mobile Equipment
- Mid-Sized Hydraulic Tools Requiring High-Pressure Sealing
