3/8″ NPT ISO 7241-B Quick Disconnect Hydraulic Coupler Set

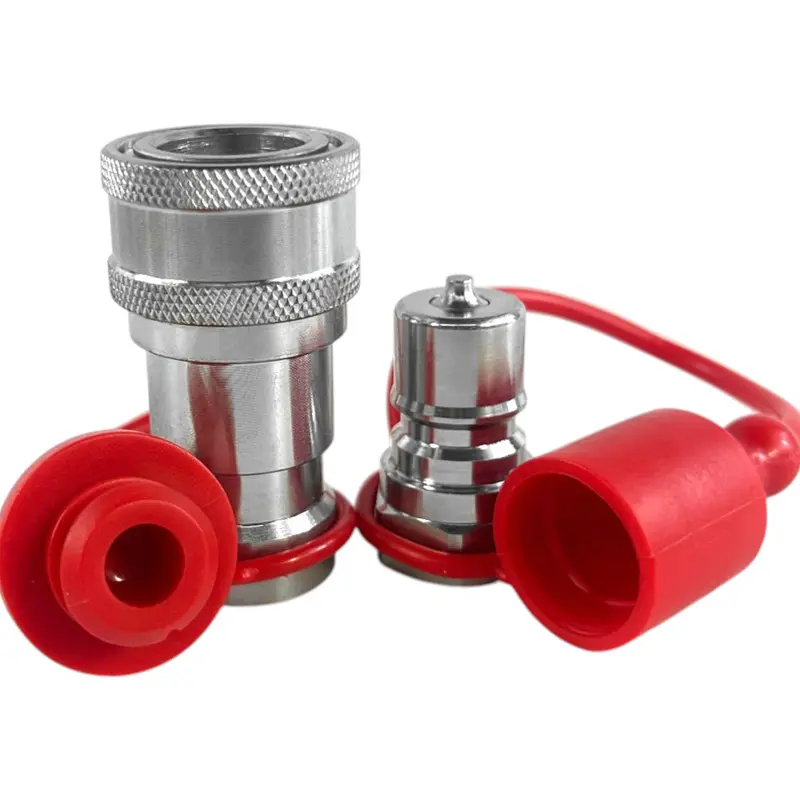

3/8″ NPT Hydraulic Quick Coupler Set – ISO 7241-B (Poppet Valve, Hardened Steel)

SKU: B38-06N-SET

The B38-06N-SET is a 3/8″ body size quick coupler set designed to meet ISO 7241-B standards, ensuring full compatibility with all other ISO 7241-B series hydraulic couplings. This set includes one male and one female coupler, both constructed from hardened steel for exceptional durability and resistance to high-pressure applications. It is ideal for aerospace, automotive, electronics, industrial machinery, mobile hydraulics, and general-purpose hydraulic systems.

Key Features & Benefits

• Durable Hardened Steel Construction – Ensures long-lasting strength and wear resistance
• Self-Sealing Poppet Valve – Provides leak-free performance under high and low pressures
• ISO 7241-B Standard – Fully interchangeable with all ISO 7241-B series couplings
• High-Pressure Performance – Rated for 3,600 PSI operating pressure, with a 14,500 PSI burst rating
• Optimized Flow Design – Supports nominal flow of 6.08 GPM and a max flow rate of 12.15 GPM
• Sleeve Locking Mechanism – Ensures secure and easy one-handed connection/disconnection
• Corrosion-Resistant Finish – Suitable for various hydraulic applications

Specifications

• Body Size: 3/8″
• Thread Type: NPT
• Thread Size: 3/8″ NPT
• Max Operating Pressure: 3,600 PSI
• Burst Pressure (Coupled): 14,500 PSI
• Nominal Flow Rate: 6.08 GPM
• Max Flow Rate: 12.15 GPM
• Female Face Diameter: 1.38” (35mm)
• Female Length: 2.57” (65mm)
• Female Hex Size: 0.86” (22mm)
• Male Face Diameter: 0.75” (19mm)
• Male Length: 1.67” (42.5mm)
• Locking Mechanism: Sleeve Lock

Interchangeable With:
