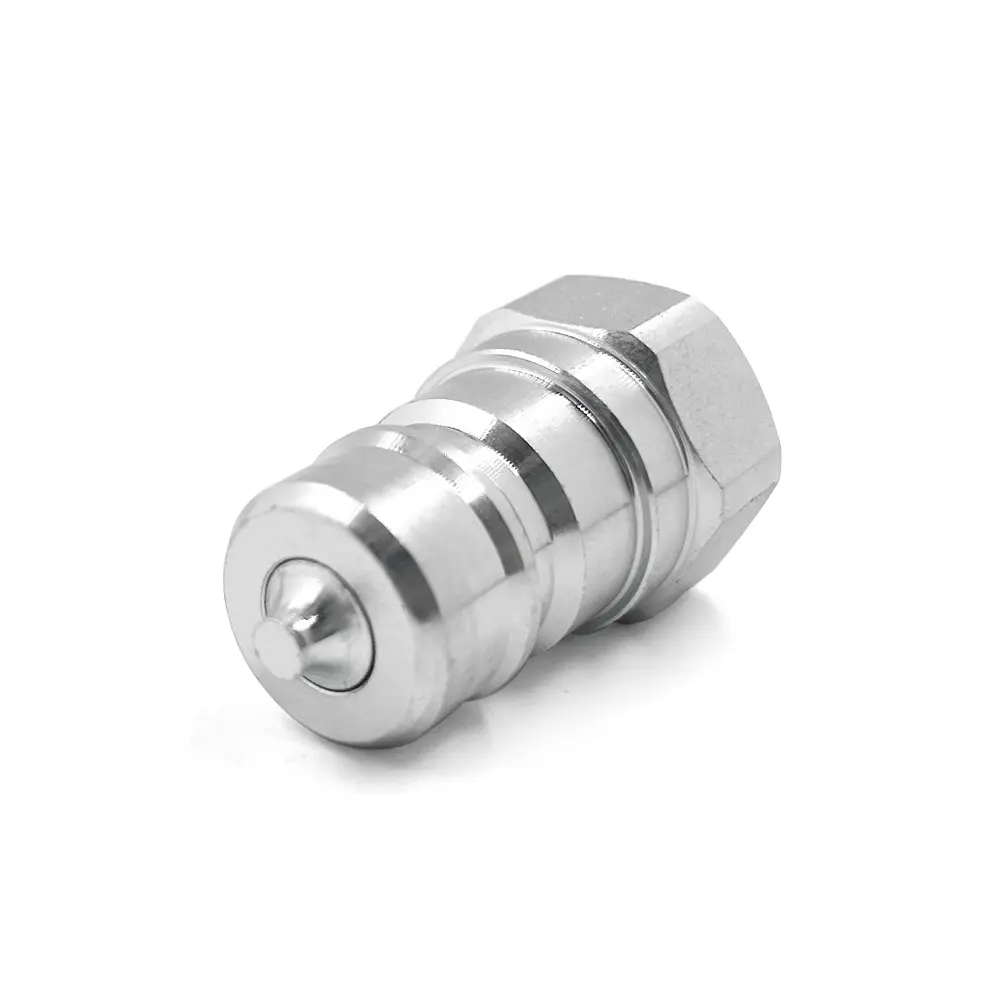

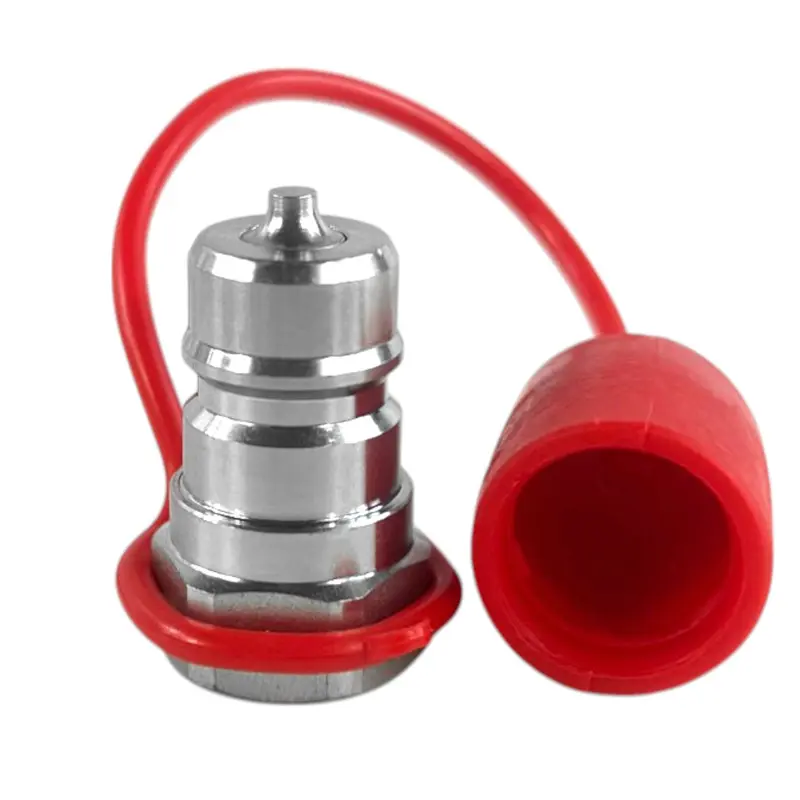

3/8″ NPT ISO 7241 A Quick Disconnect Male Coupler
Reliable Hydraulic Connection for Heavy-Duty Applications
SKU: A38M-06N
The ISO 7241 A Series 3/8″ NPT Male Quick Disconnect Coupler is a rugged, high-performance hydraulic fitting designed to meet strict industry standards. This poppet-style male coupler is used in aerospace, automotive, industrial machinery, and mobile hydraulic systems where leak-free, high-efficiency connections are critical.
Built for seamless compatibility, this coupler pairs with its corresponding female coupler and is interchangeable with all ISO 7241 A series couplings. A complete male-female coupler set is also available.
Key Benefits:
- Hardened Steel Construction – Ensures superior durability in demanding environments.
- Self-Sealing Poppet Valve – Prevents fluid loss and contamination for a clean, leak-free operation.
- Interchangeable Design – Works with all ISO 7241 A series couplers for quick integration.
- Optimized Flow Efficiency – Nominal flow rate of 6.5 GPM and maximum flow rate of 12.15 GPM for smooth hydraulic performance.
- High-Pressure Rating – Withstands up to 4,410 PSI, making it ideal for high-demand hydraulic applications.
- Radial Locking Balls – Enhances connection security, preventing accidental disconnection under pressure.
- Premium Nitrile Buna-N Seals – Delivers exceptional resistance to hydraulic fluids, heat, and wear.
- Manual Quick-Connect & Disconnect – No tools required, allowing for fast and efficient operation.
Specifications:
- Body Size: 3/8″
- Thread Type: NPT
- Thread Size: 3/8″
- Working Pressure: 4,410 PSI
- Nominal Flow Rate: 6.5 GPM
- Maximum Flow Rate: 12.15 GPM
- Seals: Nitrile Buna-N
- Locking Type: Radial Locking Balls
- Male Face Diameter: 0.67” (17mm)
- Male Length: 1.673” (42mm)
- Hex Size: 0.868” (19mm)
Interchangeable With:
| Manufacturer | Male Coupler | Female Coupler |
|---|---|---|
| Parker 6600 Series | 1717528 | 1717163 |
| Faster | ANV 38 NPT M | ANV 38 NPT F |
| Tomco 5600 | PA5603-21 | CA5603-21 |
| Aeroquip 5600 | 5602-6-6S | 5601-6-6S |
| Dixon K | K3F3 | 3KF3 |
| Snaptite 61 | 61N6-6F | 61C4-4F |
| Stucchi BIR | M BIR38 NPT | F BIR38 NPT |
What’s Included?
- 1 x 3/8″ NPT Male Coupler
This ISO 7241 A Series 3/8” NPT Male Quick Disconnect Coupler is an essential component for high-pressure hydraulic systems, offering reliability, durability, and efficiency.
