3/8″ NPT ISO 7241-A Quick Disconnect Hydraulic Female Coupler

3/8″ NPT ISO 7241 A Quick Disconnect Female Coupler

High-Performance Hydraulic Coupling for Versatile Applications
SKU: A38F-06N

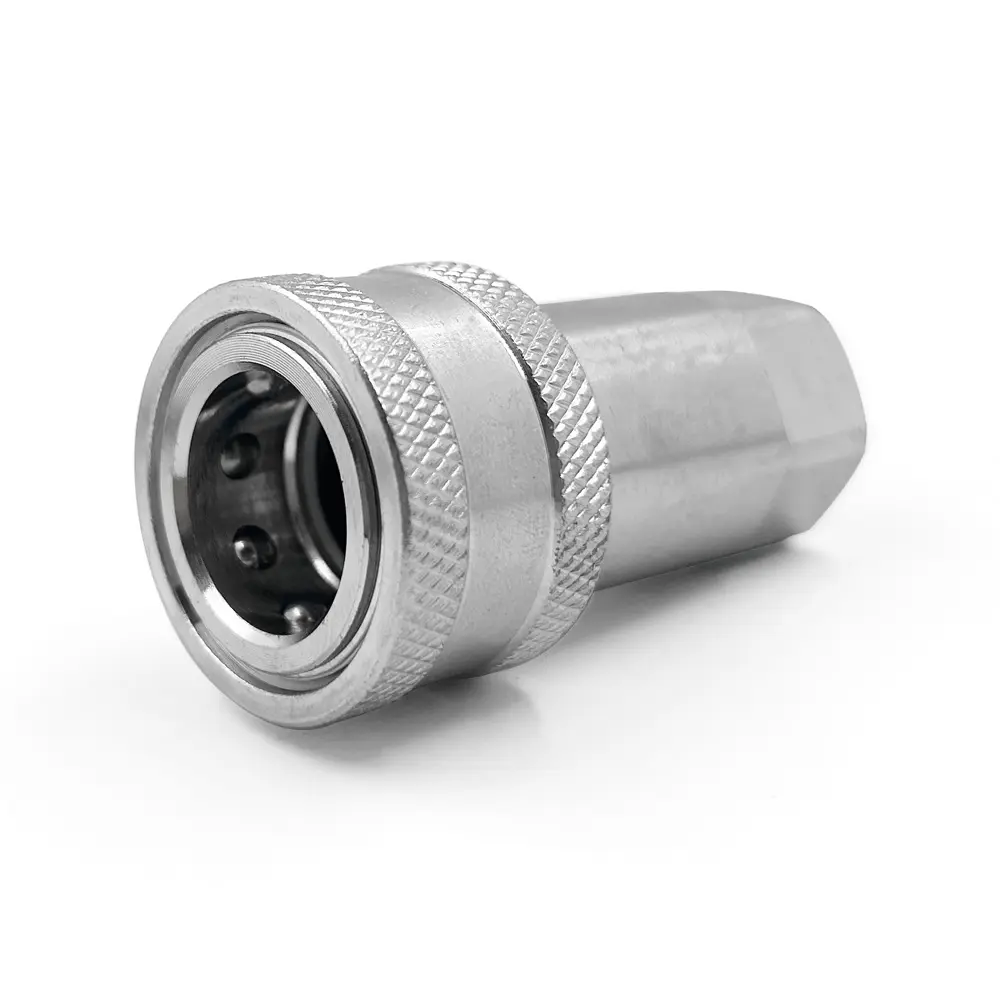

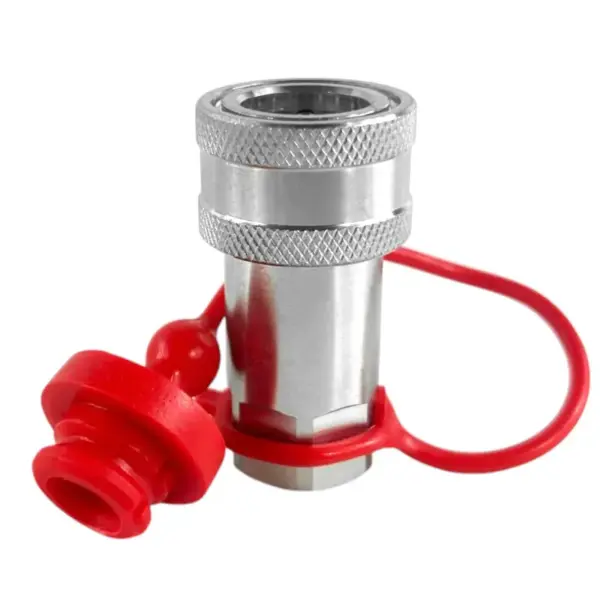

The ISO 7241 A Series 3/8″ NPT Female Quick Disconnect Coupler is designed for secure, high-efficiency hydraulic connections in industries such as aerospace, automotive, industrial machinery, and mobile hydraulics. Built to ISO 7241 A standards, this poppet-style female coupler ensures leak-free performance and full compatibility with all other ISO 7241 A series couplings.

This female coupler connects to its corresponding male coupler for a reliable and efficient hydraulic connection. A complete coupler set (male and female) is also available.

Key Benefits:

• Hardened Steel Construction – Provides exceptional durability for demanding applications.
• Self-Sealing Poppet Valve – Minimizes fluid loss and contamination, ensuring clean operation.
• Interchangeable Compatibility – Works with all ISO 7241 A series couplings for easy integration.
• Optimized Flow Performance – Nominal flow rate of 6.5 GPM and maximum flow rate of 12.15 GPM for efficient operation.
• High-Pressure Resistance – Rated for 4,410 PSI, making it suitable for heavy-duty hydraulic applications.
• Radial Locking Balls – Ensures a secure, vibration-resistant connection for safety and stability.
• Premium Nitrile Buna-N Seals – Offers superior resistance to hydraulic fluids, extreme temperatures, and wear.
• Manual Quick-Connect & Disconnect – No tools required, allowing for fast and efficient operation to reduce downtime.

Specifications:

• Body Size: 3/8″
• Thread Type: NPT
• Thread Size: 3/8″
• Working Pressure: 4,410 PSI
• Nominal Flow Rate: 6.5 GPM
• Maximum Flow Rate: 12.15 GPM
• Seals: Nitrile Buna-N
• Locking Type: Radial Locking Balls
• Female Face Diameter: 1.184” (26mm)
• Female Length: 2.38” (49mm)
• Hex Size: 0.868” (19mm)

Interchangeable With:
