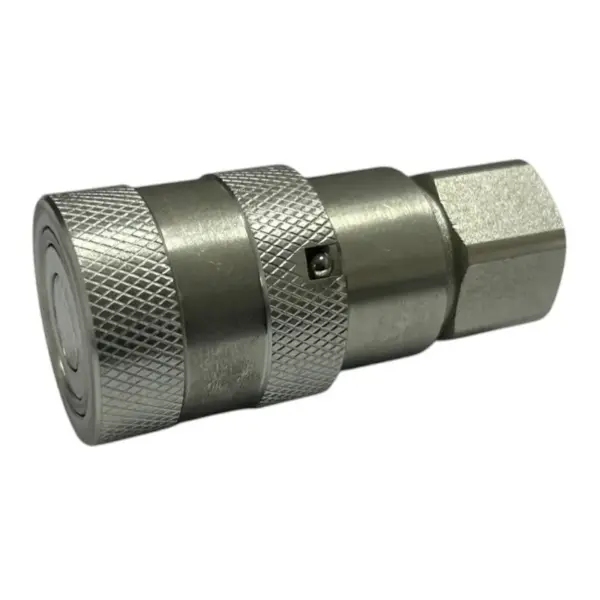

3/8″ Female Hydraulic Flat Face Quick Coupler – 3/8″ NPT Thread
SKU: FF-10-F-NPT38
This 3/8″ female flat face hydraulic quick coupler is built for high-pressure hydraulic applications requiring leak-free connections. With a flush face valve design, it prevents fluid loss and air contamination, ensuring clean and efficient hydraulic operations. Designed to meet ISO 16028 interchange standards, it seamlessly integrates with other flat face couplers.
Key Benefits & Features
- Flush Face Valve Design – Reduces hydraulic fluid loss and prevents system contamination.
- Heavy-Duty Hardened Steel Construction – Engineered for durability in tough working conditions.
- Trivalent Zinc Plating – Superior corrosion resistance for extended service life.
- Locking Sleeve Mechanism – Helps prevent accidental disconnection.
- Optimized Flow Performance – Designed for minimal pressure drop.
- High-Performance Sealing System – Buna-N seals with a Teflon backup ring, capable of withstanding temperatures up to 250°F.
Technical Specifications
- Maximum Pressure: 6,090 PSI
- Maximum Flow Rate: 7 GPM
- Female Face Diameter: 1.22” (31mm)
- Female Length: 3.03” (77mm)
- Hex Size: 1.18” (30mm)
- Port Thread: 3/8″ NPT
- Weight: 0.64 lbs
Interchangeable With
(Compatible with ISO 16028 standard couplings.)
| Manufacturer | Female Model |
|---|---|
| AKSpare | FF-10-F-NPT38 |
| Parker FE Series | FEM-371-6FP |
| Safeway FFE49 Series | FF495-3 |
| Faster FFH Series | FFH06 38NPT F |
| Eaton Aeroquip FD89 | FD89-1001-06-06 |
| Snap Tite 74 Series | 74C6-6F |
| Stucchi FIRG Series | 800801004 |
| Dixon HT Series | 3HTF3 |
| DNP PLT4 Series | FF-HPG-06-06C-NPT |
Kit Includes:
- 1 Female Coupler
This rugged hydraulic coupler is ideal for construction, agriculture, industrial machinery, and heavy-duty hydraulic systems. Its high-pressure rating and secure locking mechanism ensure safe and reliable performance.
