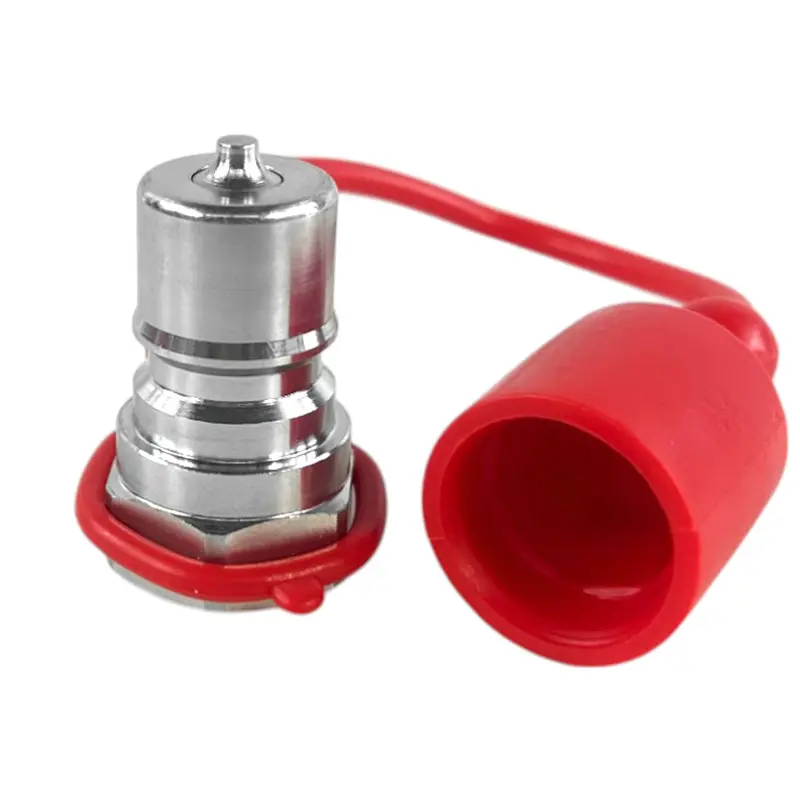

3/8″ ISO 7241-B Quick Disconnect Hydraulic Male Coupler, 1/2″ SAE Thread

3/8″ ISO 7241-B Quick Coupler – Male (1/2″ SAE Thread)

• SKU: B38M-08S
• ISO Standard: 7241-B
• Body Size: 3/8″
• Thread Type: SAE/ORB
• Thread Size: 1/2″ SAE (ORB)
• Coupling Type: Male Coupler
• Body Material: Hardened Steel

High-Performance Hydraulic Quick Coupler

The B38M-08S quick disconnect coupler is built to ISO 7241-B standards, ensuring full compatibility with all ISO 7241-B hydraulic couplings. It features a self-sealing poppet valve for leak-proof operation, a hardened steel body for durability, and radial locking balls for secure engagement. This male coupler is ideal for industrial machinery, mobile hydraulics, machine tools, automotive, aerospace, and general-purpose hydraulic applications.

Key Features & Benefits:

• ISO 7241-B Interchangeable – Works with all standard ISO 7241-B couplings
• Hardened Steel Construction – Designed for high-pressure applications
• Self-Sealing Poppet Valve – Ensures secure sealing under various pressures
• 304 Stainless Steel Spring – Provides long-lasting durability
• Corrosion-Resistant ZN-Fe (CRIII) Plating – Protects against wear and rust
• Radial Locking Balls – Provides reliable coupling security
• 3600 PSI Pressure Rating – High-pressure capability for demanding applications
• Compact & Lightweight – Suitable for confined spaces

Technical Specifications:

• Body Material: Hardened Steel
• Finish: ZN-Fe (CRIII) Plating
• Seal Material: NBR (Buna-N)
• Spring Material: 304 Stainless Steel
• Max Working Pressure: 3,600 PSI
• Burst Pressure (Coupled): 14,500 PSI
• Locking Type: Sleeve Lock

Flow Performance:

• Nominal Flow Rate: 6.5 GPM
• Max Flow Rate: 12.15 GPM

Dimensions:

Male Coupler:

• Face Diameter: 0.75” (19mm)
• Length: 1.67” (42.5mm)
• Hex Size: 0.86” (22mm)
