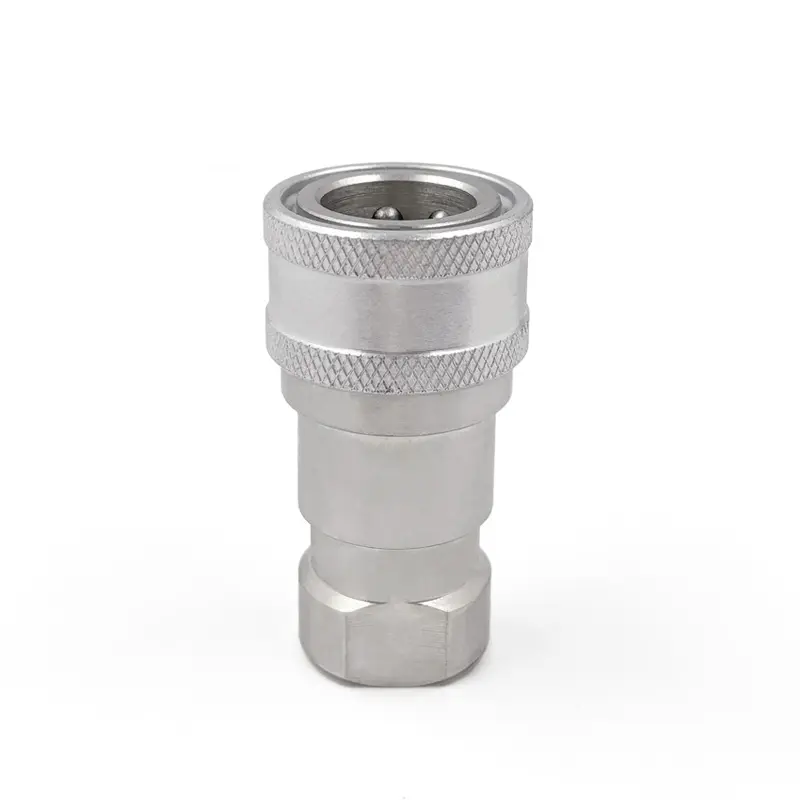

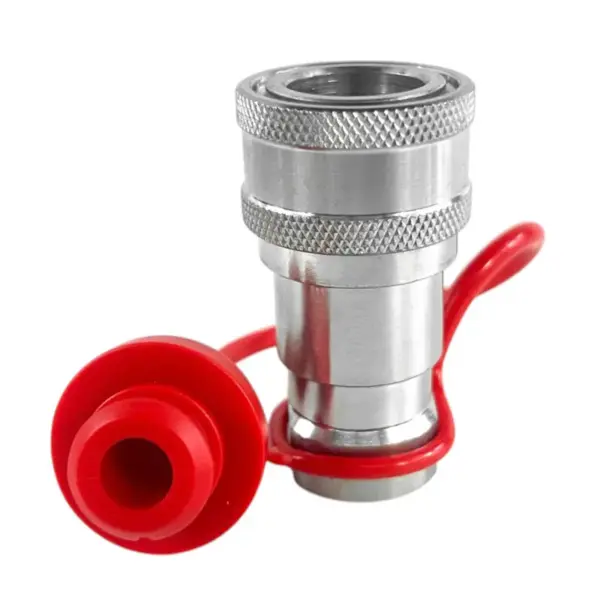

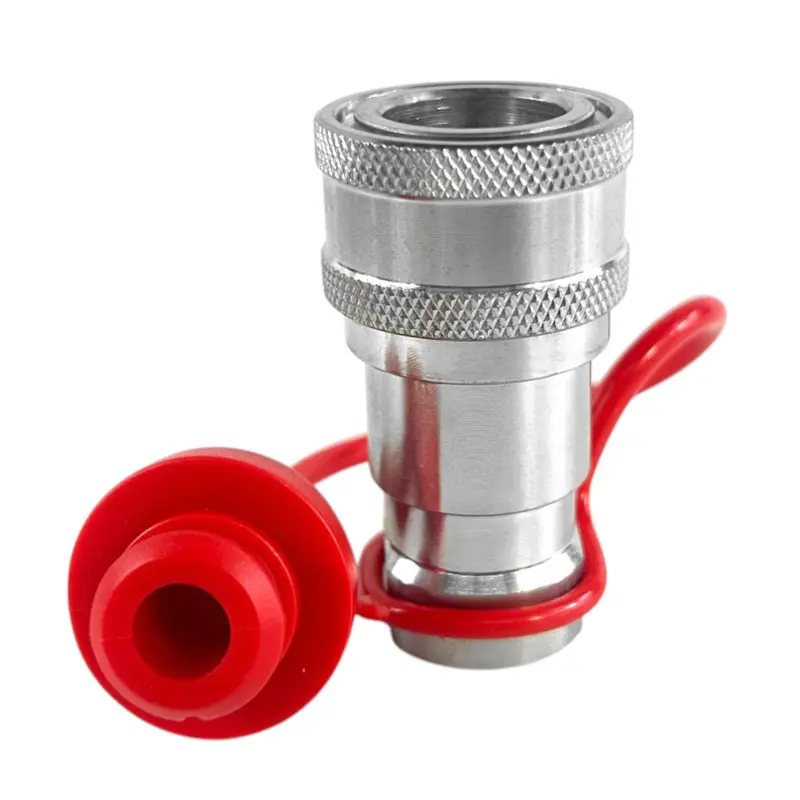

3/8″ ISO 7241-B Quick Disconnect Hydraulic Female Coupler, 1/2″ SAE Thread

3/8″ ISO 7241-B Quick Coupler – Female (1/2″ SAE ORB Thread)

• SKU: B38F-08S
• ISO Standard: 7241-B
• Body Size: 3/8″
• Thread Type: SAE O-Ring Boss (ORB)
• Thread Size: 1/2″Coupling
• Type: Female Coupler
• Body Material: Hardened Steel

High-Quality Hydraulic Quick Coupler for Industrial Applications

The B38F-08S quick disconnect coupler is designed to meet ISO 7241-B standards, ensuring universal compatibility with all standard ISO 7241-B hydraulic couplings. Built with hardened steel construction, self-sealing poppet valve, and radial locking balls, this coupler provides secure and leak-proof connections under both high and low pressure conditions.

Perfect for use in automotive, aerospace, machine tools, mobile hydraulics, and general industrial applications, this coupler guarantees long-lasting durability and efficient performance.

Key Features & Benefits:

• ISO 7241-B Interchangeable – Compatible with all standard ISO 7241-B couplings
• Heavy-Duty Hardened Steel Body – Provides superior strength and longevity
• Corrosion-Resistant ZN-Fe (CRIII) Plating – Protects against rust and wear
• Reliable Sealing – Self-sealing poppet valve ensures leak-proof connections
• High-Pressure Rated – 3,600 PSI working pressure, 14,500 PSI burst pressure
• 304 Stainless Steel Spring – Offers excellent corrosion resistance
• Efficient Hydraulic Flow – Designed for optimal performance under various pressures

Technical Specifications:

• Body Material: Hardened Steel
• Finish: ZN-Fe (CRIII) Plating
• Spring Material: 304 Stainless Steel
• Seal Material: NBR (Buna-N)
• Max Working Pressure: 3,600 PSI
• Burst Pressure (Coupled): 14,500 PSI
• Locking Type: Sleeve Lock

Dimensions:

• Face Diameter: 1.38” (35mm)
• Length: 2.57” (65mm)
• Hex: 0.86” (22mm)

Interchangeable With:
