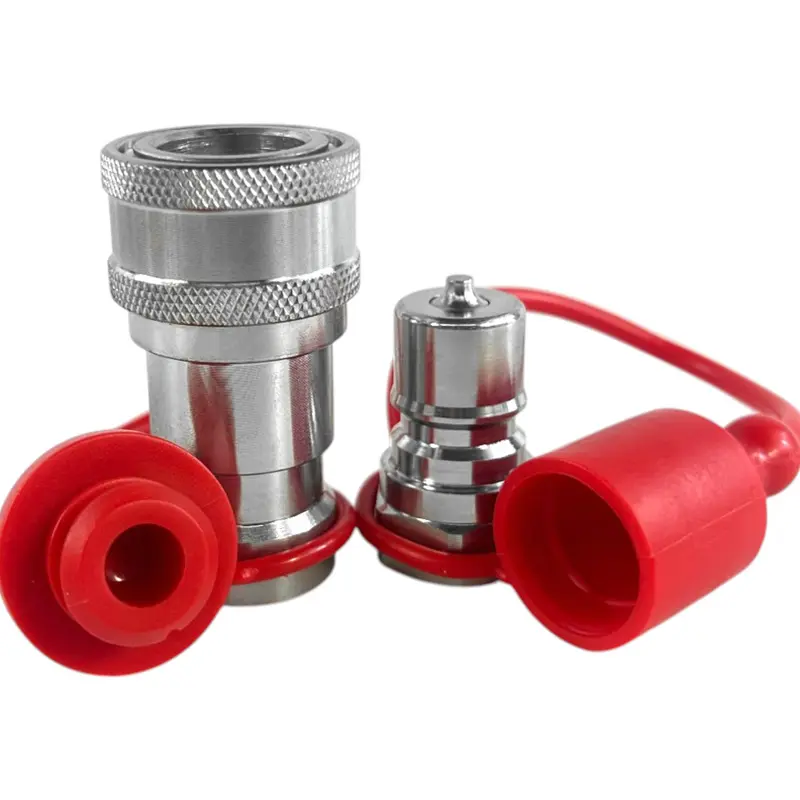

3/8″ ISO 7241-B Quick Disconnect Hydraulic Coupler Set, 1/2″ SAE Thread

3/8″ ISO 7241-B Hydraulic Quick Coupler Set (1/2″ SAE Thread, Male & Female)

• SKU: B38-08S-SET
• ISO Standard: 7241-B
• Body Size: 3/8″
• Thread Type: SAE / ORB
• Thread Size: 1/2″
• Coupling Type: Male & Female Set
• Body Material: Hardened Steel

High-Quality Hydraulic Quick Coupler Set

The B38-08S-SET quick coupler set is designed to meet ISO 7241-B standards, ensuring full interchangeability with other ISO 7241-B series couplings. Manufactured from hardened steel, these couplers provide reliable, leak-free connections for high and low-pressure hydraulic applications across industrial, agricultural, and mobile hydraulic systems.

Key Features & Benefits:

• ISO 7241-B Interchangeable – Compatible with all ISO 7241-B couplings
• Hardened Steel Construction – Enhances durability and longevity
• Self-Sealing Poppet Valve – Ensures minimal fluid loss and prevents contamination
• Corrosion-Resistant ZN-Fe (CRIII) Plating – Provides superior protection
• Radial Locking Balls – Offers secure and easy coupling
• 304 Stainless Steel Spring – Improves corrosion resistance
• Optimized Flow Performance – Supports high-pressure hydraulic systems

Technical Specifications:

• Body Material: Hardened Steel
• Finish: ZN-Fe (CRIII) Plating
• Seal Material: Nitrile Buna-N (NBR)
• Spring Material: 304 Stainless Steel
• Max Working Pressure: 3,600 PSI
• Burst Pressure (Coupled): 14,500 PSI
• Locking Type: Sleeve Lock

Flow Performance:

• Nominal Flow Rate: 6.08 GPM
• Max Flow Rate: 12.15 GPM

Interchangeable With:
