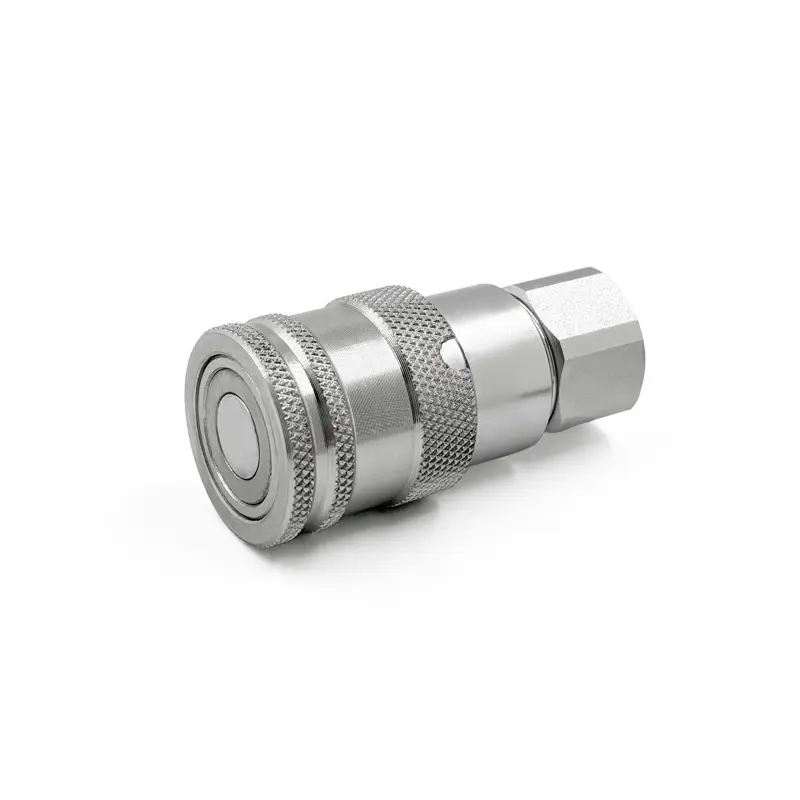

3/8″ Female Hydraulic Flat Face Quick Coupler – 3/8″ NPT Thread
SKU: FF38F-06N
This 3/8″ female flat face hydraulic quick coupler is engineered for leak-free, high-pressure connections in hydraulic systems. Complying with ISO 16028 interchange standards, it ensures compatibility with other flat face couplers. The flush face valve design effectively minimizes fluid loss and air inclusion, making it ideal for demanding hydraulic applications.
Key Benefits & Features
- Flush Face Valve Design – Prevents hydraulic fluid loss and reduces contamination.
- Zinc-Nickel Plating – Superior corrosion resistance for extended service life.
- Hardened Steel Construction – Provides durability in high-wear environments.
- Locking Sleeve Mechanism – Helps prevent accidental disconnection.
- Optimized Flow Performance – Ensures minimal pressure drop for maximum efficiency.
- High-Performance Sealing System – Buna-N seals with a Teflon backup ring, capable of withstanding temperatures up to 250°F.
Technical Specifications
- Maximum Pressure: 5,076 PSI
- Maximum Flow Rate: 12.12 GPM
- Nominal Flow Rate: 6.08 GPM
- Female Face Diameter: 1.26” (32mm)
- Female Length: 2.89” (73.5mm)
- Hex Size: 1.18” (30mm)
- Port Thread: 3/8″ NPT
Interchangeable With
(Compatible with ISO 16028 standard couplings.)
| Manufacturer | Female Model |
|---|---|
| SUMMIT | FF38F-06N |
| Parker FE Series | FEM-371-6FP |
| Safeway FFE49 Series | FF495-3 |
| Faster FFH Series | FFH06 38NPT F |
| Eaton Aeroquip FD89 | FD89-1001-06-06 |
| Snap Tite 74 Series | 74C6-6F |
| Stucchi FIRG Series | 800801004 |
| Dixon HT Series | 3HTF3 |
| DNP PLT4 Series | FF-HPG-06-06C-NPT |
Kit Includes:
- 1 Female Coupler
- 1 Female Dust Cap
This rugged hydraulic coupler is built for maximum reliability and performance, making it ideal for industrial, agricultural, and mobile hydraulic applications. Need a complete coupler set? We also offer matching male couplers for a secure and efficient hydraulic system
