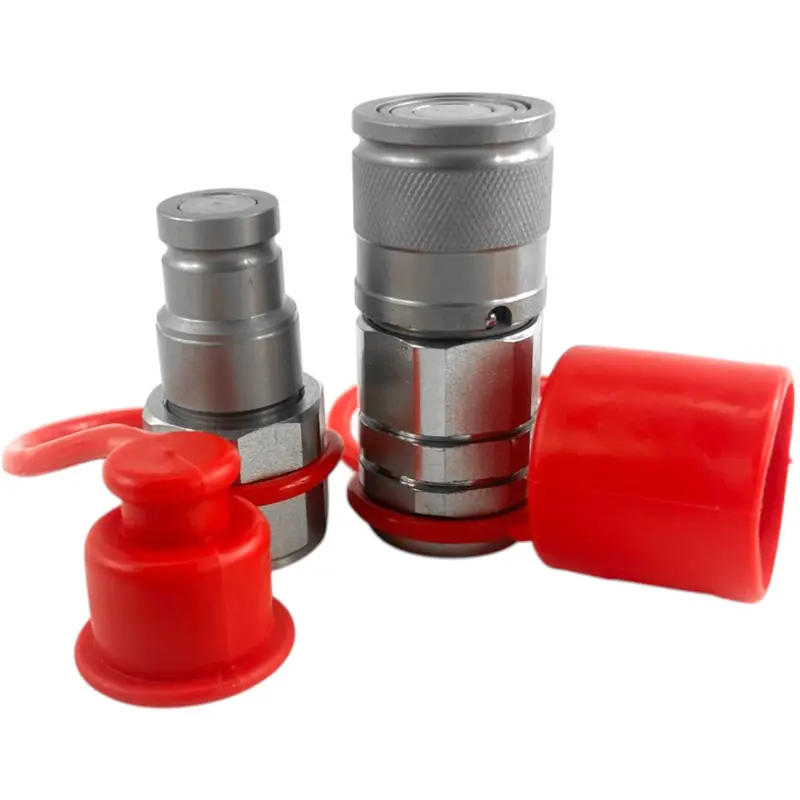

3/8″ Flat Face Hydraulic Quick Connect Coupler Set, 1/2″ SAE Thread

3/8″ Flat Face Hydraulic Quick Connect Coupler Set, 1/2″ SAE Thread

SKU: FF38-08S-SET
Size: 3/8″ Body with 1/2″ SAE Thread

High-Performance Hydraulic Coupler Set for Secure and Efficient Connections
The 3/8″ Flat Face Hydraulic Quick Connect Coupler Set is engineered for heavy-duty hydraulic applications, ensuring leak-free, high-flow performance in construction, agriculture, forestry, and industrial equipment. This set includes both male and female quick couplers, offering a reliable, durable, and easy-to-use connection for your hydraulic systems.

Manufactured to ISO 16028 standards, these couplers feature a flush face valve design, reducing fluid loss and air inclusion during connection and disconnection. The hardened steel construction with anti-corrosive plating enhances durability, while the locking sleeve prevents accidental disconnects, ensuring a secure operation under high pressure.

Key Benefits:

• Heavy-Duty Design – Withstands up to 5,076 PSI for high-pressure applications
• Flush Face Valve – Minimizes fluid loss and prevents contamination
• Superior Corrosion Resistance – Zinc-nickel plating extends lifespan
• Minimal Pressure Drop – Maximizes hydraulic system efficiency
• Locking Sleeve – Prevents accidental disconnections for added safety
• One-Hand Operation – Quick and easy push-connect design
• Hardened Steel Construction – Durable and wear-resistant
• Compatible with ISO 16028 Standard Couplings – Interchangeable with major brands

Technical Specifications:

• Max Working Pressure: 5,076 PSI
• Max Flow Rate: 12.15 GPM
• Seal Material: Buna-N with Teflon backup ring (operates up to 250°F)
• Locking Type: Ball Lock
• ISO Standard: 16028

Dimensions:

• Male Face Diameter: 0.78” (19.8mm)
• Female Face Diameter: 1.26” (32mm)
• Male Length: 3.30” (84mm)
• Female Length: 2.97” (75.6mm)
• Male Hex Size: 1.05” (27mm)
• Female Hex Size: 1.05” (27mm)
• Weight: 2 lbs
• Dimensions: 6 × 5 × 3 in
