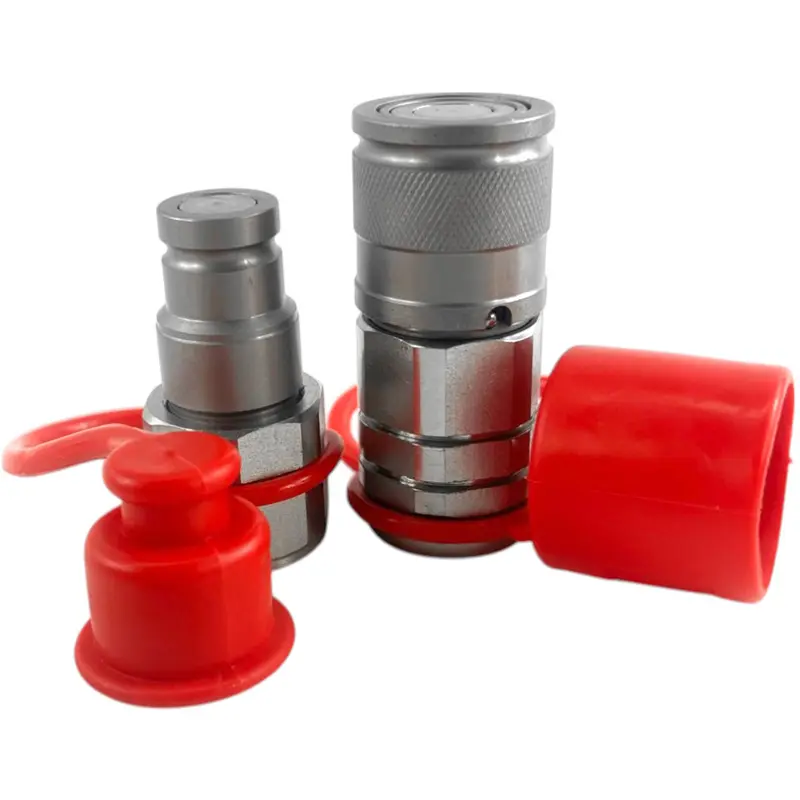

3/8″ Flat Face Hydraulic Quick Connect Coupler Set, 1/2″ NPT Thread

3/8″ Flat Face Hydraulic Quick Connect Coupler Set, 1/2″ NPT Thread

SKU: FF-10 NPT12
Size: 3/8″ Body with 1/2″ NPT Thread

High-Performance Hydraulic Coupler Set for Demanding Applications
The 3/8″ Flat Face Hydraulic Quick Connect Coupler Set is engineered for reliability and durability, making it an excellent choice for hydraulic systems in agriculture, construction, industrial equipment, and heavy machinery. This set includes both male and female quick couplers, ensuring a secure and leak-free connection.

Built to ISO 16028 standards, these couplers feature a flush face valve design that minimizes fluid loss and air inclusion, promoting a clean and efficient hydraulic system. The hardened steel construction with anti-corrosive plating enhances durability, while the locking sleeve prevents accidental disconnections, providing added security during operation.

Key Benefits:

• Heavy-Duty Design – Rated for 5,076 PSI to withstand high-pressure applications
• Flush Face Valve – Reduces fluid loss and prevents contamination
• Anti-Corrosive Plating – Extends lifespan with superior resistance to corrosion
• Minimal Pressure Drop – Enhances hydraulic system efficiency
• Locking Sleeve – Prevents accidental disconnections for safety
• Single-Hand Push-Connect Operation – Enables easy and quick connections
• Hardened Steel Construction – Increases durability and longevity
• Interchangeable with Other ISO 16028 Standard Couplings – Compatible with major brands

Technical Specifications:

• Max Working Pressure: 5,076 PSI
• Max Flow Rate: 12.15 GPM
• Seal Material: Buna-N with Teflon backup ring (operates up to 250°F)
• Locking Type: Ball Lock
• ISO Standard: 16028

Dimensions:

• Male Face Diameter: 0.78” (19.8mm)
• Female Face Diameter: 1.26” (32mm)
• Male Length: 3.30” (84mm)
• Female Length: 2.97” (75.6mm)
• Male Hex Size: 1.05” (27mm)
• Female Hex Size: 1.05” (27mm)
• Weight: 1 lb
• Dimensions: 8 × 5 × 4 in

Interchangeable With:
