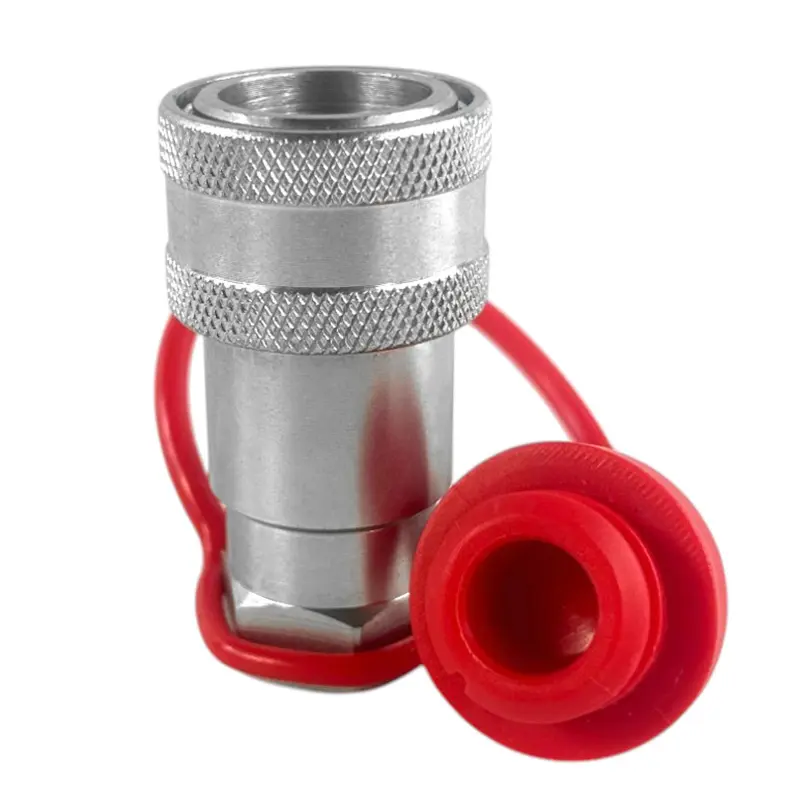

3/8” NPT Female Hydraulic Quick Coupler – ISO 5675 Standard
SKU: AG38F-06N
- Commonly used in: Agriculture, Construction, and Logging Industries
- Interchangeable with: All ISO 5675 series, including ball seat valve, poppet seal, and push-pull couplings
Specifications:
- ISO Body Size: 3/8”
- Thread Type: 3/8” NPT Female
- Max Pressure: 4,400 PSI
- Max Flow Rate: 12.15 GPM
- Valve Type: Poppet Valve
- Material: Hardened Steel with Corrosion-Resistant Plating
- Seals: Buna-N with Teflon Backup Ring (Operating Temperature: Up to 250°F)
Dimensions:
- Female Coupler Length: 2.38”
- Hex Size: 0.868”
Interchangeable with:
| Manufacturer | Female Coupler |
|---|---|
| SUMMIT | AG38F-06N |
| Parker 4000 Series | 4050-3P |
| Safeway S20 Series | S25-3P |
| Faster NV/NS Series | NV 38 NPT F |
| Snap-Tite 60/21 Series | 60C6-6F |
| Stucchi IRV Series | 800101002 / F IR38V NPT |
| Dixon AG Series | 3AGF3-PV |
What’s Included?
- 1 x Female Quick Coupler
- 1 x Female Dust Cap
