3/8” NPT Hydraulic Quick Coupler Set – ISO 5675 Standard
SKU: AG38-06N-SET
- Commonly used in: Agriculture, Construction, and Logging Industries
- Interchangeable with: All ISO 5675 series, including ball seat valve, poppet seal, and push-pull couplings
Specifications:
- ISO Body Size: 3/8”
- Thread Type: 3/8” NPT Female & Male
- Max Pressure: 4,400 PSI
- Max Flow Rate: 12.15 GPM
- Valve Type: Poppet Valve
- Material: Hardened Steel with Corrosion-Resistant Plating
- Seals: Buna-N with Teflon Backup Ring (Operating Temperature: Up to 250°F)
Dimensions:
- Female Coupler Length: 2.38”
- Male Coupler Length: 1.673”
- Coupled Length: 3.346”
- Hex Size: 0.868”
Interchangeable with:
| Manufacturer | Male Coupler | Female Coupler |
|---|---|---|
| SUMMIT | AG38M-06N | AG38F-06N |
| Parker 4000 Series | 4010-3P | 4050-3P |
| Safeway S20 Series | S41-3P | S25-3P |
| Faster NV/NS Series | NV 38 NPT M | NV 38 NPT F |
| Snap-Tite 60/21 Series</strong > | 60C6-6M | 60C6-6F |
| Stucchi IRV Series | 800101003 M IR38V NPT | 800101002 F IR38V NPT |
| Dixon AG Series | AG3F3-PV | 3AGF3-PV |

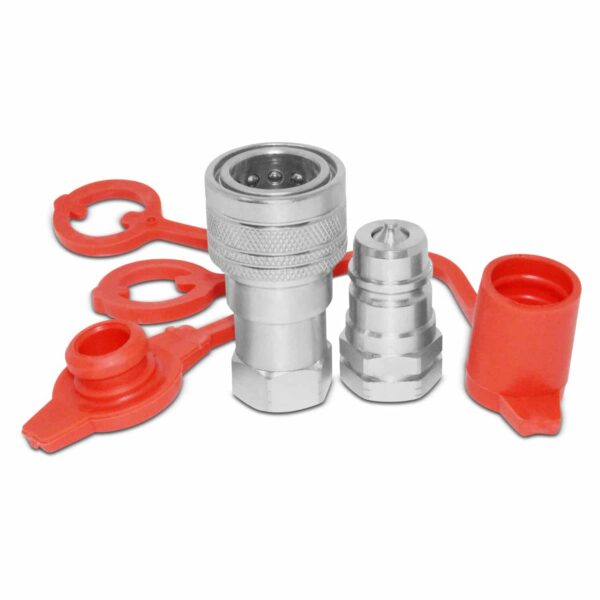

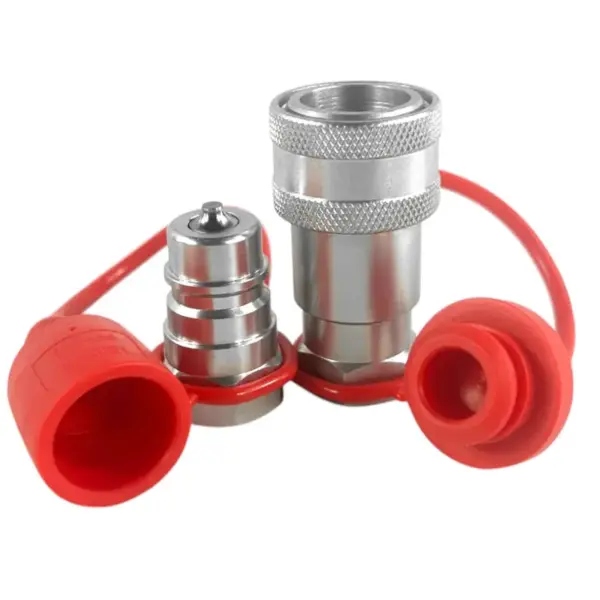

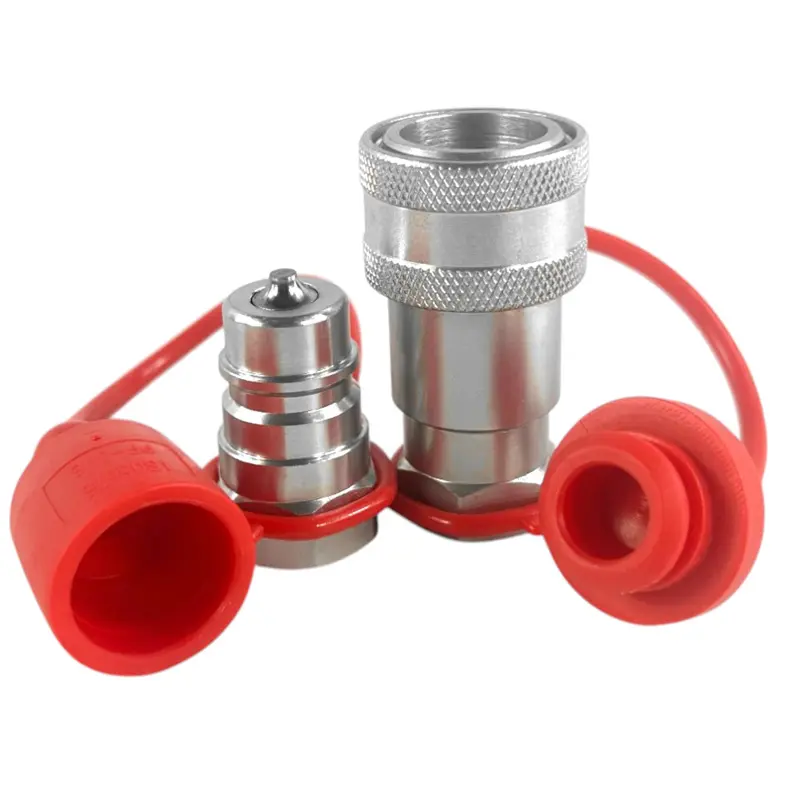

What’s Included?
- 1 x Male Quick Coupler
- 1 x Female Quick Couple
- 1 x Male Dust Cap
- 1 x Female Dust Cap
