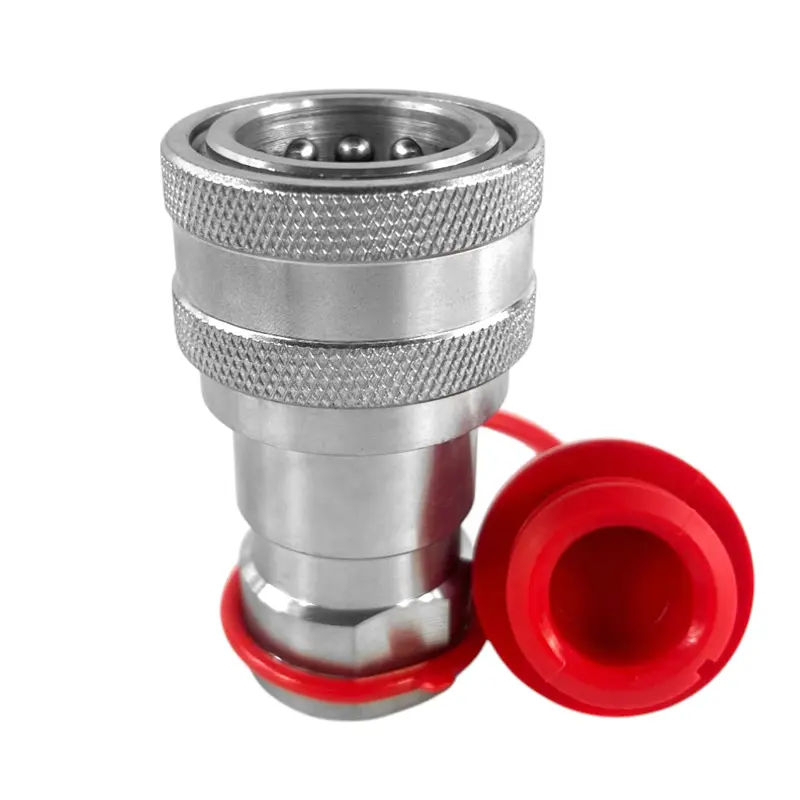

3/4″ ISO 7241-B Quick Coupler – Female (3/4″ NPT Thread)
- SKU: B34F-12N
- ISO Standard: 7241-B
- Body Size: 3/4″
- Thread Type: NPT
- Thread Size: 3/4″
- Coupling Type: Female Coupler
- Body Material: Hardened Steel
Premium Hydraulic Quick Coupler for High-Performance Applications
The B34F-12N quick disconnect coupler is engineered to ISO 7241-B standards, ensuring full compatibility with all standard ISO 7241-B hydraulic couplings. Designed with hardened steel, a self-sealing poppet valve, and radial locking balls, this coupler delivers secure, leak-proof connections under both high and low pressure conditions.
Ideal for industrial machinery, mobile hydraulics, automotive, and aerospace applications, this coupler is built to withstand demanding environments while maintaining high flow efficiency and exceptional durability.
Key Features & Benefits:
- ISO 7241-B Interchangeable – Compatible with all standard ISO 7241-B couplings
- Hardened Steel Construction – Ensures superior strength and longevity
- Corrosion-Resistant ZN-Fe (CRIII) Plating – Protects against rust and wear
- Leak-Proof Sealing – Self-sealing poppet valve prevents leaks under varying pressures
- High-Pressure Rated – 3,600 PSI working pressure, 14,500 PSI burst pressure
- 304 Stainless Steel Spring – Provides durability in extreme conditions
- Optimized Hydraulic Flow – Designed for maximum efficiency
Technical Specifications:
- Body Material: Hardened Steel
- Finish: ZN-Fe (CRIII) Plating
- Spring Material: 304 Stainless Steel
- Seal Material: NBR (Buna-N)
- Max Working Pressure: 3,600 PSI
- Burst Pressure (Coupled): 14,500 PSI
- Locking Type: Sleeve Lock
Dimensions:
Female Coupler:
- Face Diameter: 2.05” (52mm)
- Length: 3.54” (90mm)
- Hex: 1.34” (34mm)
Interchangeable With:
| Manufacturer | Female Coupler |
|---|---|
| SUMMIT | B34F-12N |
| Parker 60 Series | H6-62 |
| Safeway S10 Series | S105-6 |
| Faster HNV | HNV 34 NPT F |
| Snap-Tite 72 Series | 72C12-12F |
| Stucchi IRB Series | F IRB34 NPT 800601008 |
| Dixon H-Series | 6HF6 |
| Eaton HK Series | 6HP31 |
| DNP HNV Series | HNV-12-12-C-NPT |
What’s Included?
- 1 x Female Quick Coupler
Product Details:
- ISO Standard: 7241-B
- Style: ISO 7241-B
- Body Size: 3/4″
- Thread Type: NPT
- Thread Size: 3/4″
- Body Material: Hardened Steel
- Locking Type: Sleeve Lock
- Weight: 1.2 lbs
- Brand: AKSpare
Ideal for Various Hydraulic Applications:
- Industrial Machinery & Mobile Hydraulics
- Automotive & Aerospace Equipment
- General-Purpose Hydraulic Systems
