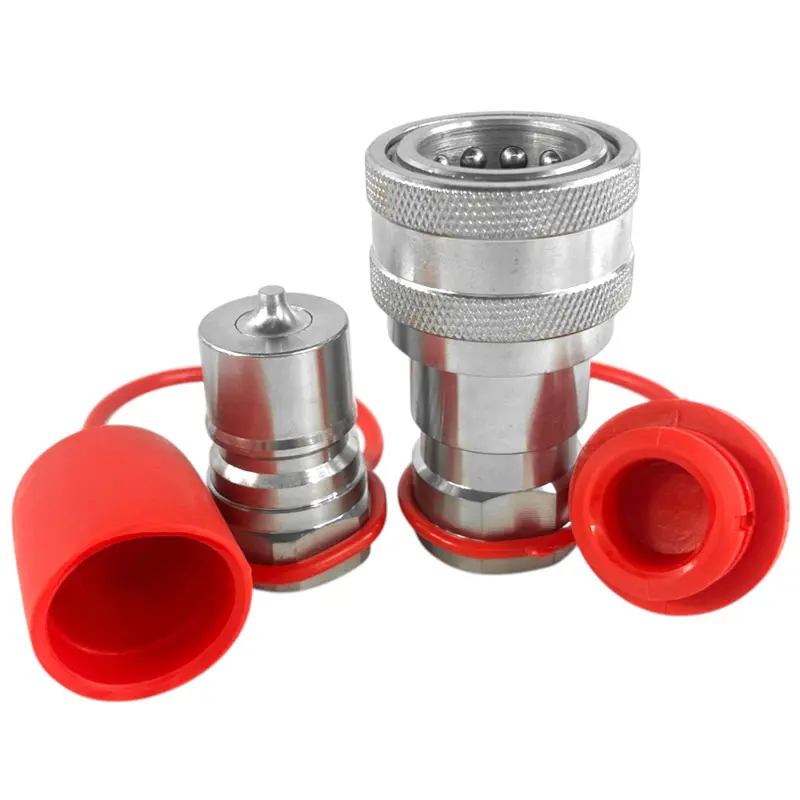

3/4″ ISO 7241-B Hydraulic Quick Coupler Set (3/4″ NPT Thread, Male & Female)
- SKU: B34-12N-SET
- ISO Standard: 7241-B
- Body Size: 3/4″
- Thread Type: NPT
- Thread Size: 3/4″
- Coupling Type: Male & Female Set
- Body Material: Hardened Steel
Reliable Hydraulic Quick Coupler Set
The B34-12N-SET is a premium quick disconnect coupler set, designed to ISO 7241-B standards for full interchangeability with other ISO 7241-B series couplings. Engineered for high-performance hydraulic applications, it provides secure, leak-free connections under high and low pressures in construction, industrial, mobile, and general-purpose hydraulic systems.
Key Features & Benefits:
- ISO 7241-B Interchangeable – Fully compatible with other ISO 7241-B couplings
- Hardened Steel Construction – Ensures durability and long service life
- Self-Sealing Poppet Valve – Prevents fluid loss and contamination
- Corrosion-Resistant ZN-Fe (CRIII) Plating – Extends longevity
- Radial Locking Balls – Secure and easy connection
- 304 Stainless Steel Spring – Enhanced corrosion resistance
- High Flow Performance – Optimized hydraulic fluid transfer
Technical Specifications:
- Body Material: Hardened Steel
- Finish: ZN-Fe (CRIII) Plating
- Seal Material: Nitrile Buna-N (NBR)
- Spring Material: 304 Stainless Steel
- Max Working Pressure: 3,600 PSI
- Locking Type: Sleeve Lock
Flow Performance:
- Nominal Flow Rate: 28 GPM
- Max Flow Rate: 58.12 GPM
Interchangeable With:
| Manufacturer | Male Part Number | Female Part Number |
|---|---|---|
| SUMMIT | B34M-12N | B34F-12N |
| Parker 60 Series | H6-63 | H6-62 |
| Safeway S10 Series | S101-6 | S105-6 |
| Faster HNV | HNV 34 NPT M | HNV 34 NPT F |
| Snap-Tite 72 Series | 72N12-12F | 72C12-12F |
| Stucchi IRB Series | M IRB34 NPT | F IRB34 NPT (800601009) |
| Dixon H-Series | H6F6 | 6HF6 |
| Eaton HK Series | 6KP31 | 6HP31 |
| DNP HNV Series | HNV-12-12-N-NPT | HNV-12-12-C-NPT |
Compatible Fluids & Applications:
- Hydraulic Fluids
- Water
- Diesel / Petroleum
Ideal for:
- Construction Equipment
- Agricultural Machinery
- Industrial & Mobile Hydraulics
- General-Purpose Hydraulic Systems
What’s Included?
- 1 x Male Quick Coupler
- 1 x Female Quick Coupler
Product Details:
- ISO Standard: 7241-B
- Style: ISO 7241-B
- Body Size: 3/4″
- Thread Type: NPT
- Thread Size: 3/4″
- Body Material: Hardened Steel
- Locking Type: Sleeve Lock
- Coupling Type: Set (Male & Female)
- Weight: 1.75 lbs
- Dimensions: 5 × 4 × 3 in
- Brand: AKSpare
