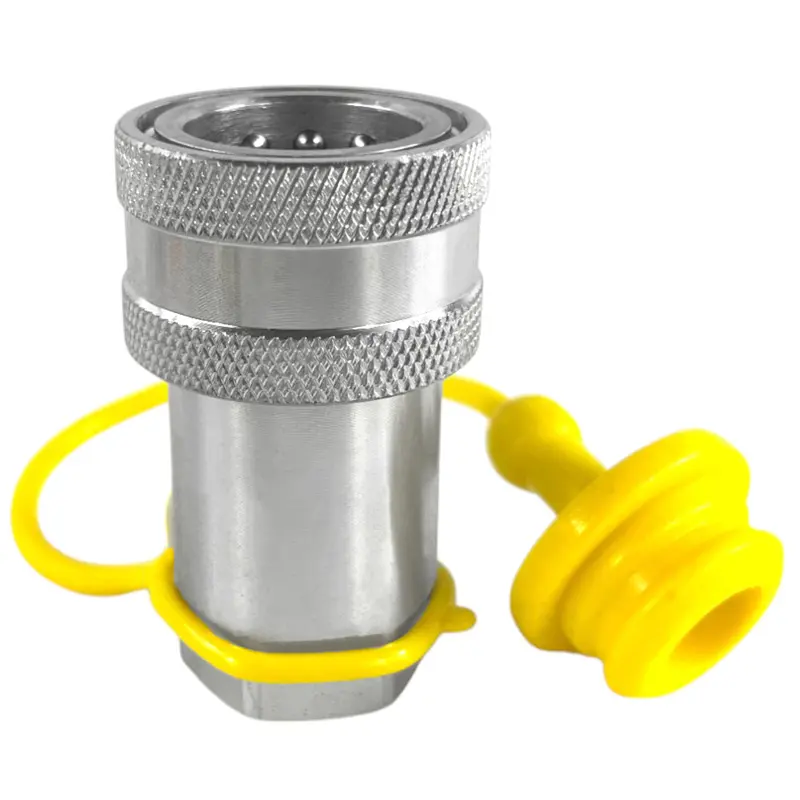

3/4″ NPT ISO 7241-A Quick Disconnect Hydraulic Female Coupler

3/4″ NPT ISO 7241 A Quick Disconnect Female Coupler

High-Performance Hydraulic Connection for Industrial Applications
SKU: A34F-12N

The ISO 7241 A Series 3/4″ NPT Female Quick Disconnect Coupler is designed to provide exceptional durability, reliability, and efficiency for hydraulic applications in industries such as aerospace, automotive, industrial machinery, and mobile hydraulics. Engineered to meet ISO 7241 A standards, this coupler ensures seamless compatibility and interchangeability with all ISO 7241 A series couplings.

This 3/4” NPT female coupler pairs with its corresponding male coupler, offering a secure and leak-free hydraulic connection.

Key Benefits:

• Heavy-Duty Hardened Steel Construction – Built to endure high-pressure and demanding environments.
• Self-Sealing Poppet Valve – Reduces fluid loss and contamination, ensuring clean and efficient operation.
• Universal Compatibility – Interchangeable with all ISO 7241 A series couplings, making it a versatile choice for various hydraulic systems.
• Optimized Hydraulic Performance – Nominal flow rate of 6.5 GPM and maximum flow rate of 12.15 GPM for smooth operation.
• High-Pressure Resistance – Rated for a maximum working pressure of 4,410 PSI to withstand tough hydraulic applications.
• Reliable Radial Locking Balls – Provides a secure, vibration-resistant connection for enhanced stability.
• Premium Sealing Material – Equipped with Nitrile Buna-N seals for superior resistance to hydraulic fluids and extreme temperatures.
• Effortless Manual Connection & Disconnection – Allows for quick, tool-free operation, reducing downtime.

Specifications:

• Body Size: 3/4″
• Thread Type: NPT
• Thread Size: 3/4″
• Working Pressure: 4,410 PSI
• Nominal Flow Rate: 6.5 GPM
• Maximum Flow Rate: 12.15 GPM
• Seals: Nitrile Buna-N
• Locking Type: Radial Locking Balls
• Face Diameter: 1.770” (45mm)
• Overall Length: 3.326” (84mm)
• Hex Size: 1.341” (34mm)
