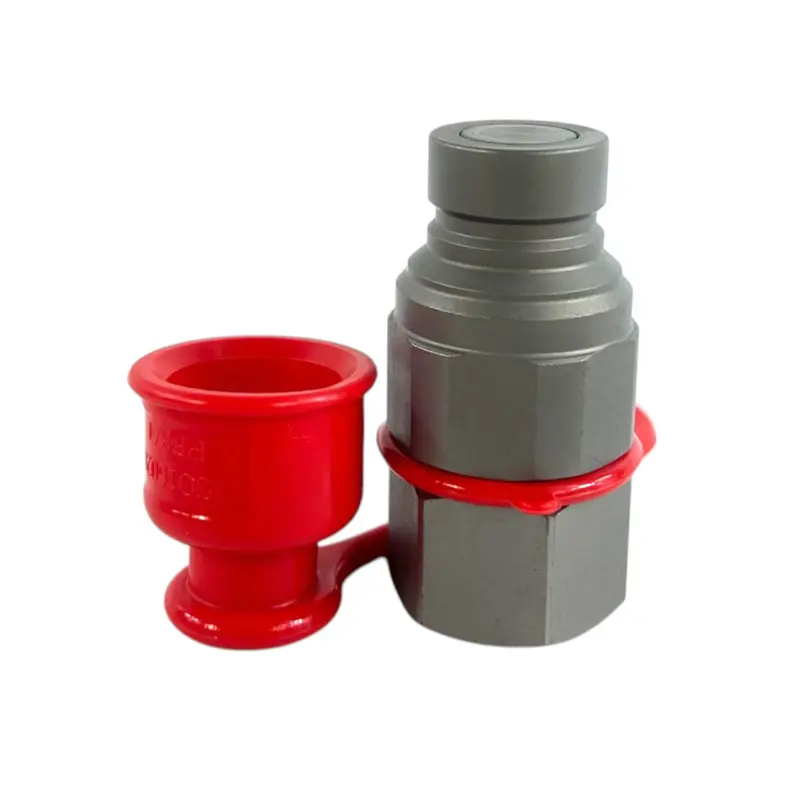

3/4″ Flat Face High Flow Hydraulic Quick Connect Male Coupler, 3/4″ SAE Thread

3/4″ Flat Face High Flow Hydraulic Quick Connect Male Coupler – 3/4″ SAE Thread

SKU: FF-19 M SAE34

This 3/4″ flat face male coupler is built to ISO 16028 standards, ensuring compatibility with other flat face hydraulic couplers. Designed for high-flow applications in construction, agriculture, and industrial hydraulics, this coupler provides a secure, leak-free connection with minimal fluid loss.

Key Benefits:

• Flush Face Valve Design – Reduces fluid loss and air inclusion for a cleaner system.
• Trivalent Zinc Plating – Offers superior corrosion resistance in harsh environments.
• Hardened Steel Construction – Increases durability and longevity.
• Optimized Flow Path – Minimizes pressure drop, ensuring efficient hydraulic performance.
• Easy One-Handed Connection – Push-to-connect design for quick and secure coupling.
• Blowout-Resistant Nipple Seal – Enhances sealing reliability under pressure.

Technical Features:

• Max Pressure Rating: 5,076 PSI
• Max Flow Rate: 52 GPM
• Nominal Flow Rate: 28 GPM
• Seal Type: Buna-N with Teflon Backup Ring (operating temperature up to 250°F)
• Male Face Diameter: 1.18” (30mm)
• Male Length: 3.19” (81mm)
• Hex Size: 1.61” (40.89mm)
• Thread Type: 3/4″ SAE
• Body Size: 3/4”
• Body Material: Hardened Steel with Trivalent Zinc Plating
