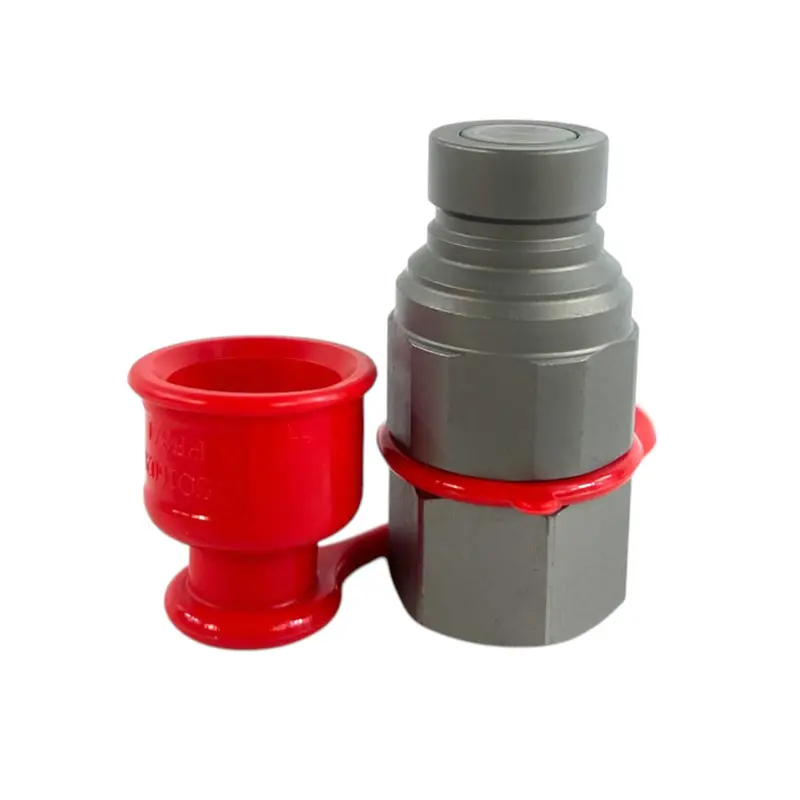

3/4″ Flat Face High Flow Hydraulic Quick Connect Male Coupler, 3/4″ NPT Thread

3/4″ Flat Face High Flow Hydraulic Quick Connect Male Coupler – 3/4″ NPT Thread

SKU: FF-19 M NPT34

This 3/4″ flat face male coupler is designed to meet ISO 16028 standards, making it fully interchangeable with other flat face hydraulic couplers. Engineered for high flow efficiency and minimal pressure drop, it is widely used in construction, agriculture, and industrial hydraulic systems.

Key Benefits:

• Flush Face Valve Design – Minimizes fluid loss and prevents air inclusion.
• Trivalent Zinc Plating – Superior corrosion resistance for extended durability.
• Hardened Steel Body & Sleeves – Increases wear resistance and longevity.
• Optimized Flow Path – Ensures minimal pressure drop and maximum efficiency.
• Easy Single-Handed Connection – Push-to-connect mechanism for quick and secure coupling.
• Blowout-Resistant Nipple Seal – Prevents leakage for reliable operation.

Technical Features:

• Max Pressure Rating: 5,076 PSI
• Max Flow Rate: 52 GPM
• Nominal Flow Rate: 28 GPM
• Seal Type: Buna-N with Teflon Backup Ring (operating temperature up to 250°F)
• Male Face Diameter: 1.18” (30mm)
• Male Length: 3.19” (81mm)
• Hex Size: 1.61” (40.89mm)
• Thread Type: 3/4″ NPT
• Body Size: 3/4” (ISO 19)
• Body Material: Hardened Steel

Interchangeable With:
