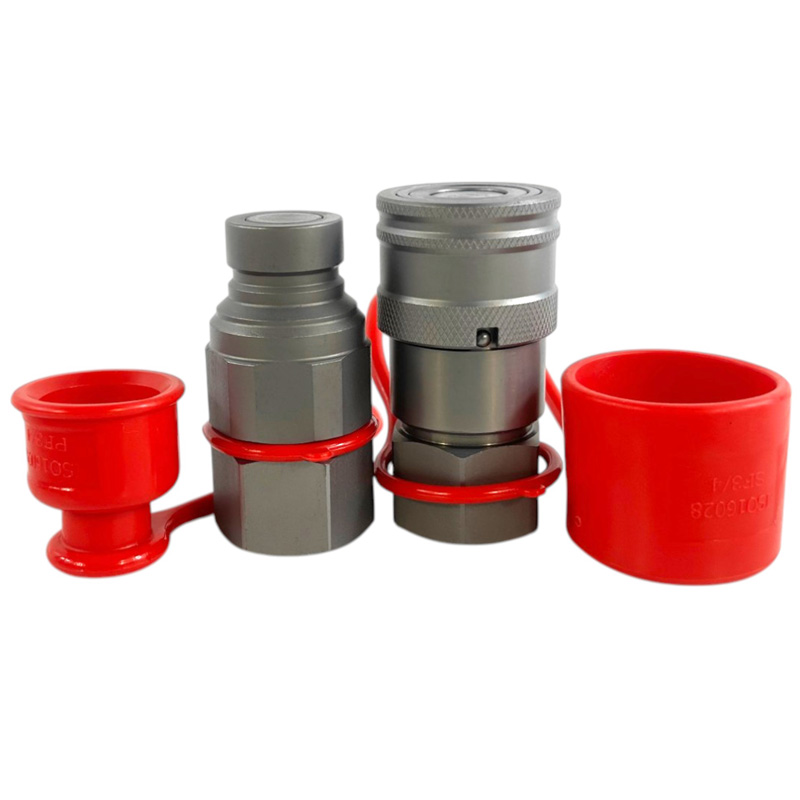

3/4″ Flat Face High Flow Hydraulic Quick Connect Coupler Set – 3/4″ SAE ORB Thread (Dash -12)
SKU: FF-19 SAE34
This 3/4″ flat face quick coupler set is designed for high-pressure hydraulic applications, providing secure, leak-free connections while minimizing pressure drops. The set includes both male and female couplers, built for durability, reliability, and optimal hydraulic performance.
Key Features:
- Heavy-Duty Construction: Made from hardened steel with an anti-corrosive coating (Trivalent Zinc Plating)for long-lasting durability.
- High Pressure Rating: 5076 PSI maximum working pressure, suitable for demanding applications.
- Optimized Flow Rate: Handles a maximum flow of 52 GPM for efficient performance.
- Secure Locking Sleeve: Prevents accidental disconnection, ensuring safety.
- Minimal Pressure Drop: Engineered valve design provides smooth fluid transfer and high efficiency.
- Easy One-Hand Operation: Designed for quick and effortless connection/disconnection.
- Heat-Resistant Seals: Rated for temperatures up to 250°F, ensuring reliableperformance in extreme conditions.
Specifications:
- Body Size: 3/4″
- Thread Type: SAE ORB
- Thread Size: 3/4″ (1 1/16-12 UNF Female) – Dash -12
- ISO Standard: 16028
- Coupling Style: Flat Face
- Locking Type: Ball Lock
- Body Material: Hardened Steel
- Weight: 6 lbs
- Dimensions: 6 × 5 × 4 in
Interchangeable With:
| Manufacturer | Male Coupler | Female Coupler |
|---|---|---|
| AKSpare | FF-19 M SAE34 | FF-19 F SAE34 |
| Parker FE Series | FEM-752-12FO | FEM-751-12FO |
| Faster FFH Series | FFH12 34SAE M | FFH12 34SAE F |
| Eaton Aeroquip FD89 | FD89-1004-12-10 | FD89-1005-12-10 |
| Snap-Tite 74 Series | 74N12-12EF | 74C12-12EF |
| Stucchi FIRG Series | 800804021 | 800804020 |
| DNP PLT4 Series | FF-HPG-12-12N-SAE | FF-HPG-12-12C-SAE |
