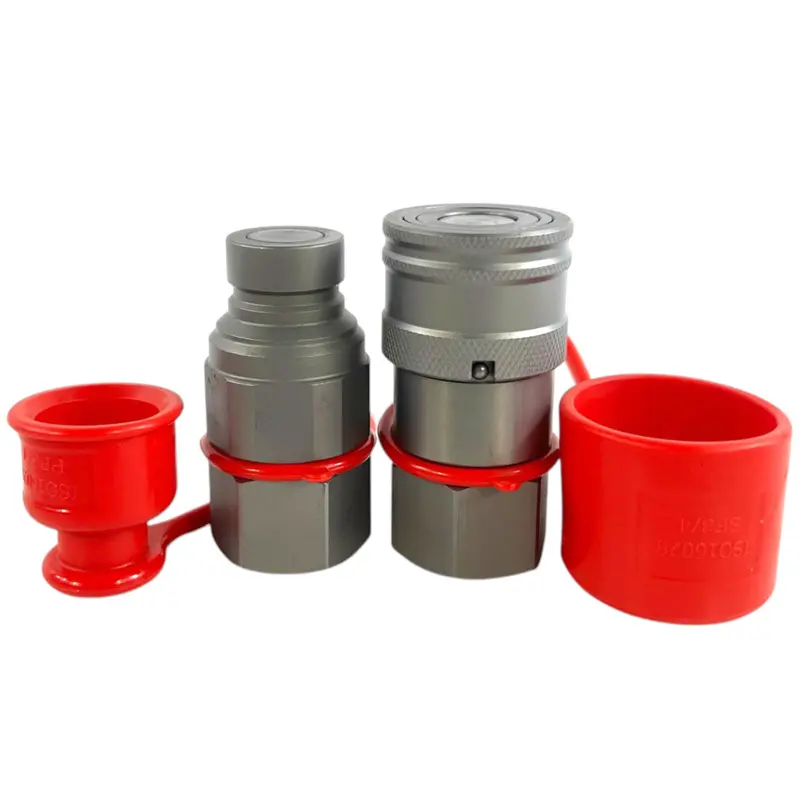

3/4″ Flat Face High Flow Hydraulic Quick Connect Coupler Set – 3/4″ NPT
Thread
SKU: FF-19 NPT34
This 3/4″ flat face quick coupler set includes both male and female couplers,designed for high-performance hydraulic applications. Engineered for durability, reliability, and ease of use, this coupler set ensures secure, leak-free connections while minimizing pressure drops.
Key Features:
- Heavy-Duty Construction:Built from hardened steel with an anti-corrosive coating for long-lasting durability.
- High-Pressure Rating: Handles up to 5076 PSI, making it suitable for demanding hydraulic systems.
- Optimized Flow Rate: Supports a maximum flow of 52 GPM,ensuring efficient operation.
- Secure Locking Mechanism: Locking sleeve prevents accidental disconnections for enhanced safety.
- Minimal Pressure Drop: Engineered valve design allows for smooth fluid transfer and high efficiency.
- One-Hand Operation: User-friendly design enablesquick and effortless connection/disconnection.
- Heat-Resistant Seals: Seals rated for temperatures up to 250°F, ensuring reliable performance in extreme conditions.
Specifications:
- Body Size: 3/4″
- Thread Type: NPT
- Thread Size: 3/4″
- ISO Standard:16028
- Coupling Style: Flat Face
- Locking Type: Ball Lock
- Body Material: Hardened Steel
- Weight: 3.3 lbs
- Dimensions: 6 × 5 × 4 in
| Manufacturer | Male Coupler | Female Coupler |
|---|---|---|
| AKSpare | FF-19 M NPT34 | FF-19 F NPT34 |
| Parker FE Series | FEM-752-12FP | FEM-751-12FP |
| Safeway FFE49 Series | FFE491-6 | FFE495-6 |
| Faster FFH Series | FFH12 34NPT M | FFH12 34NPT F |
| Eaton Aeroquip FD89 | FD89-1002-12-10 | FD89-1001-12-10 |
| Snap-Tite 74 Series | 74N12-12F | 74C12-12F |
| Stucchi FIRG Series | 800801021 | 800801020 |
| Dixon HT Series | HT6F6 | 6HTF6 |
| DNP PLT4 Series | FF-HPG-12-12N-NPT | FF-HPG-12-12C-NPT |
| Tomco FE Series | EP6-31 | EC6-31 |
