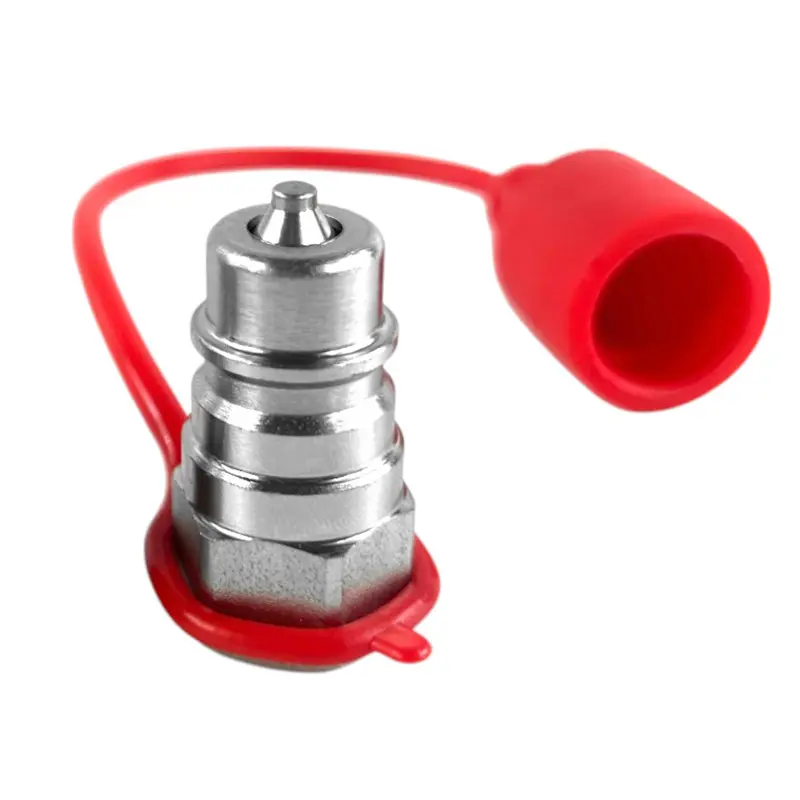

1/4″ ISO 5675 Hydraulic Quick Coupler – Male, #6 SAE (Dash-06), Poppet Valve
SKU: AG14M-06S
Product Overview
This 1/4″ ISO 5675 male quick coupler is a high-quality solution for agricultural, construction, and logging hydraulic applications. Designed with a poppet valve for leak-free performance, it features a radial locking ball system for secure connections and effortless single-handed push-connect operation.
Key Features:
- ISO 5675 compliant – interchangeable with other standard couplings
- Radial locking balls ensure a secure hold
- Manual connect and disconnect for ease of use
- Blowout-resistant nipple seal enhances durability
- Single-handed push-connect design for quick operation
Specifications:
- ISO Body Size: 1/4″
- Thread Type: SAE/ORB
- Port Thread Size: #6 SAE (9/16″-18 ORB)
- Max Pressure: 5100 PSI
- Nominal Flow Rate: 3.2 GPM
- Max Flow Rate: 6.34 GPM
- Male Face Diameter: 1.026″ (26mm)
- Male Length: 1.38″ (35mm)
- Hex Size: 0.751″ (19mm)
Interchangeable With:
| Manufacturer | Male Part Number |
|---|---|
| SUMMIT | AG14M-06S |
| Parker 4000 Series | 4010-T6 |
| Faster NV/NS Series | NV 14-38SAE M |
| Stucchi IRV Series | 800104001 / M IR14V 38 SAE |
What’s Included:
- 1 x 1/4″ Male Hydraulic Quick Coupler
This coupler offers superior durability, reliable performance, and seamless compatibility with industry-standard hydraulic systems. Need a complete set? We also offer matching female couplers.
