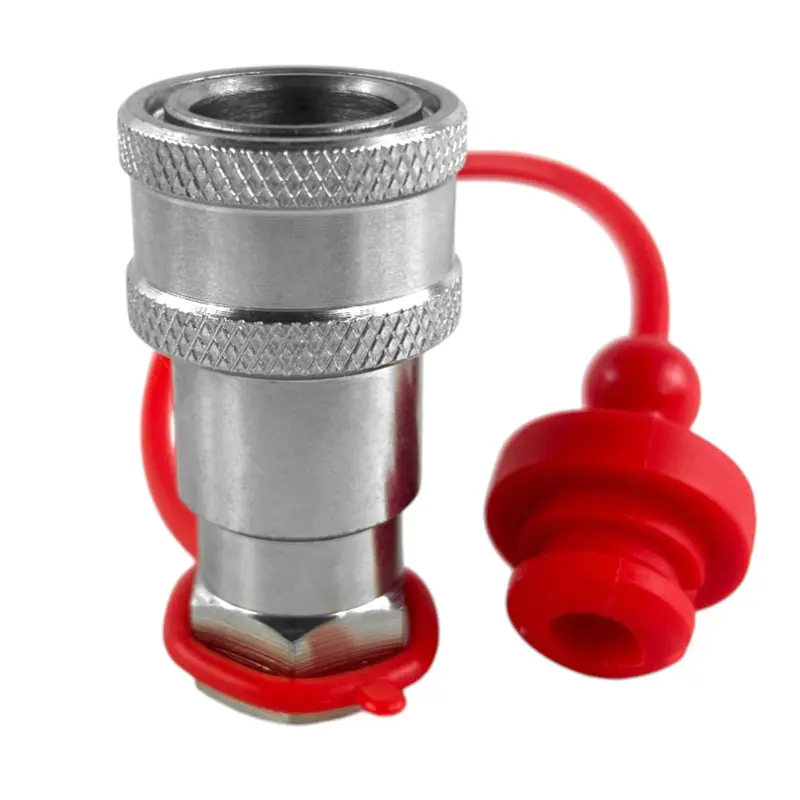

1/4″ ISO 5675 Hydraulic Quick Coupler – Female, 3/8″ SAE (Dash-06), Poppet Valve
SKU: AG14F-06S-G
This 1/4″ ISO 5675 female quick coupler is designed for agricultural, construction, and logging applications. It features a poppet valve design for reliable performance and compatibility with various industry-standard couplings. Engineered with a radial locking ball system, this coupler offers a secure connection and easy single-handed push-connect operation.
Key Features:
- General-purpose hydraulic quick coupler
- ISO 5675 compliant – interchangeable with other standard couplings
- Radial locking balls for a secure hold
- Manual connect and disconnect for ease of use
- Blowout-resistant nipple seal ensures durability
- Single-handed push-connect design for quick operation
Specifications:
- ISO Body Size: 1/4″
- Thread Type: SAE/ORB
- Port Thread Size: 3/8″ SAE (9/16″-18 ORB)
- Max Pressure: 5100 PSI
- Nominal Flow Rate: 3.2 GPM
- Max Flow Rate: 6.34 GPM
- Female Face Diameter: 1.026″ (26mm)
- Female Length: 1.931″ (49mm)
- Hex Size: 0.751″ (19mm)
Interchangeable With:
| Manufacturer | Female Part Number |
|---|---|
| SUMMIT | AG14F-06S-G |
| Parker 4000 Series | 4050-T6 |
| Faster NV/NS Series | NV 14-38SAE F |
| Stucchi IRV Series | 800104000 / F IR14V 38 SAE |
| Aeroquip FD42 | FD42–1008–06–04 |
What’s Included:
- 1 x 1/4″ Female Hydraulic Quick Coupler
This coupler ensures reliable performance, ease of use, and seamless compatibility with industry-standard connectors. Need a complete set? We also offer matching male couplers.
