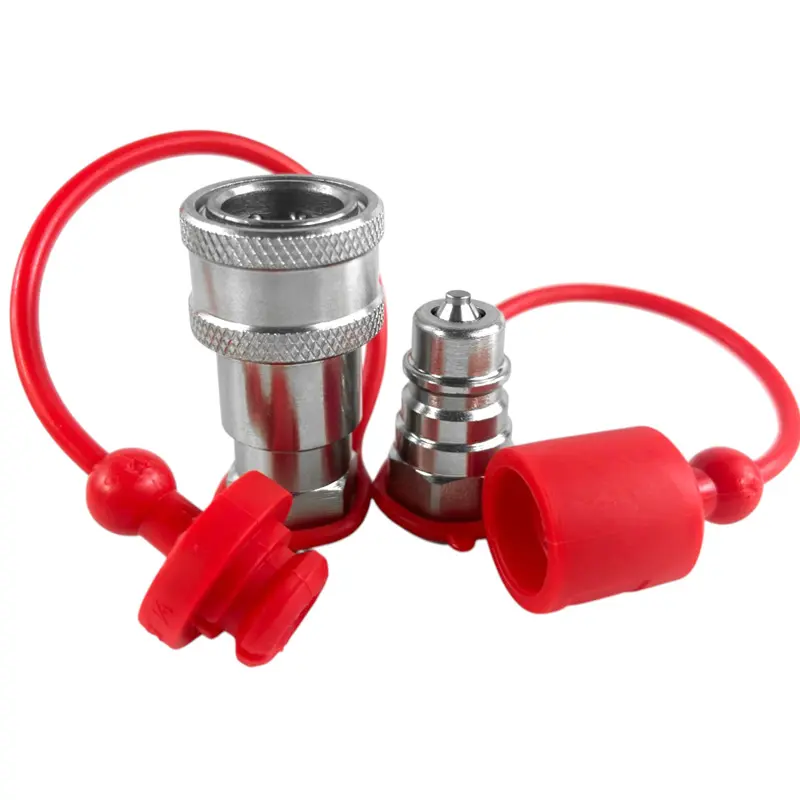

1/4” Body Hydraulic Quick Coupler Set – #6 SAE (9/16″-18 ORB) – ISO 5675
SKU: AG14-06S-SET
- Commonly used in: Agriculture, Construction, and Logging Industries
- Interchangeable with: All ISO 5675 series, including ball seat valve, poppet seal, and push-pull couplings
Specifications:
- ISO Body Size: 1/4”
- Port Thread: #6 SAE (9/16″-18 ORB)
- Valve Type: Poppet Valve
- Max Pressure: 5,100 PSI
- Max Flow Rate: 6.34 GPM
- Material: Hardened Steel with Corrosion-Resistant Plating
- Seals: Buna-N with Teflon Backup Ring (Operating Temperature: Up to 250°F)
Dimensions:
- Female Coupler Length: 1.931”
- Male Coupler Length: 1.380”
- Coupled Length: 2.75”
- Hex Size: 0.751”
Benefits:
- General Purpose: Designed for a wide range of hydraulic applications
- ISO 5675 Interchangeable: Compatible with other standard couplings
- Push-to-Connect Design: Quick and effortless manual connection
- Secure Seal: Prevents blowouts and ensures reliable performance
- Heavy-Duty Construction: Built to withstand high-pressure applications
Interchangeable with:
| Manufacturer | Male Coupler | Female Coupler |
|---|---|---|
| SUMMIT | AG14M-06S | AG14F-06S |
| Parker 4000 Series | 4010-T6 | 4050-T6 |
| Faster NV/NS Series | NV 14-38SAE M | NV 14-38SAE F |
| Stucchi IRV Series | 800104001 / M IR14V 38 SAE | 800104000 / F IR14V 38 SAE |
| Aeroquip FD42 | FD42–1010–06–04 2 | FD42–1008–06–04 |
What’s Included?

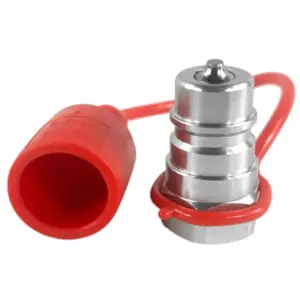

- 1 x Male Quick Coupler
- 1 x Female Quick Coupler
- 1 x Male Dust Cap
- 1 x Female Dust Cap
