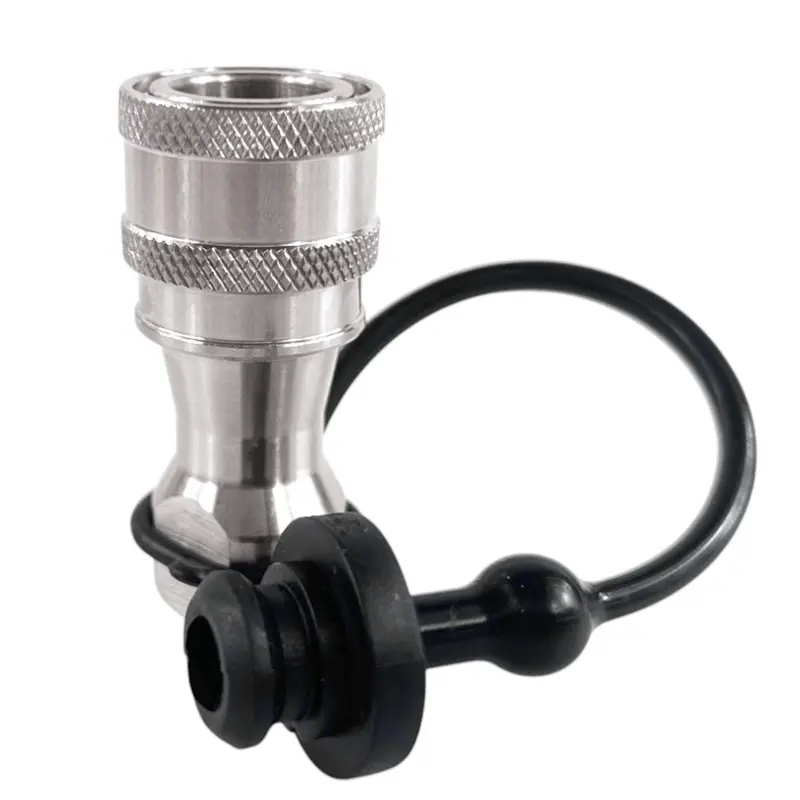

1/4″ NPT Stainless Steel ISO 7241-B Female Quick Disconnect Coupler
Premium-Grade Hydraulic Connection for Corrosive Environments
SKU: BSS14F-04N
The ISO 7241-B Series 1/4″ NPT Female Quick Disconnect Coupler is an industrial-grade stainless steel fitting engineered for high-pressure and corrosive environments. Designed for precision hydraulic applications, it is widely used in aerospace, automotive, marine, and industrial machinery where durability and reliability are essential.
This stainless steel female coupler seamlessly connects with its male counterpart and is fully interchangeable with all ISO 7241-B series couplings. A complete set (male and female coupler) is also available.
Key Benefits:
- 316 or 304 Stainless Steel Body – Exceptional corrosion resistance, ideal for marine, chemical, and industrial applications.
- Self-Sealing Poppet Valve – Ensures leak-free operation under high and low pressures.
- Interchangeable Design – Works with all ISO 7241-B series couplers for universal compatibility.
- High-Performance Seals – Viton® (FKM) seals offer superior resistance to heat, chemicals, and hydraulic fluids.
- Extreme Pressure & Temperature Tolerance – Rated for 3,600 PSI and can withstand up to 14,500 PSI burst pressure (coupled).
- Manual Sleeve Locking Mechanism – Provides secure connections with quick and easy coupling/uncoupling.
- Temperature Range: -15°F to +400°F – Reliable performance in harsh environmental conditions.
Specifications:
- Body Size: 1/4″
- Thread Type: NPT
- Thread Size: 1/4″
- Material: 316 or 304 Stainless Steel
- Locking Type: Sleeve
- Seal Material: Viton® (FKM)
- Working Pressure: 3,600 PSI
- Burst Pressure (Coupled): 14,500 PSI
- Nominal Flow Rate: 3.17 GPM
- Maximum Flow Rate: 6.34 GPM
- Female Face Diameter: 1.1” (27.94mm)
- Female Length: 2.26” (57.4mm)
- Hex Size: 0.74” (18.79mm)
- Weight: 0.3 lbs
316 Stainless Steel Variant – Interchangeable With:
| Manufacturer | Female Coupler |
|---|---|
| SUMMIT | BSS14F-04N |
| Parker 60 Series | SSH2-62Y |
| Safeway SS10 Series | SS105-2 |
| Faster HNV Stainless Steel</strong > | HNV 14 NPT F 2V |
| Snap-Tite 72 Series | SS72C4-4F |
| Stucchi IRBX Series | F IRBX14 NPT |
| Dixon H-Series | 2HF2-SS |
| Eaton HK Series | LL2H16 |
| DNP HNV Series | HNV-SS316-04-04-C-NPT |
What’s Included?
- 1 x 1/4″ NPT Stainless Steel Female Coupler
This ISO 7241-B 1/4” Stainless Steel Female Quick Disconnect Coupler is the ideal solution for corrosion-resistant, high-performance hydraulic systems.
