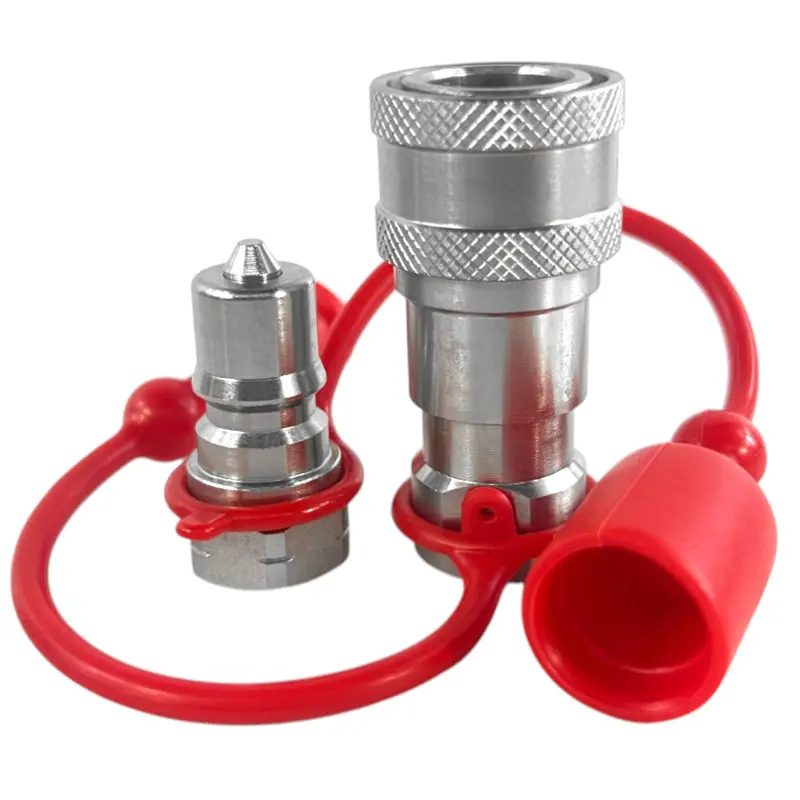

1/4″ NPT ISO 7241-B Quick Disconnect Hydraulic Coupler Set

1/4″ ISO 7241-B Hydraulic Quick Coupler Set (1/4″ NPT Thread, Male & Female)

• SKU: B14-04N-SET
• ISO Standard: 7241-B
• Body Size: 1/4″
• Thread Type: NPT
• Thread Size: 1/4″
• Coupling Type: Male & Female Set
• Body Material: Hardened Steel

Reliable Hydraulic Quick Coupler Set

The B14-04N-SET is a high-quality quick disconnect coupler set, designed to ISO 7241-B standards for full interchangeability with other ISO 7241-B series couplings. Ideal for general-purpose hydraulics, mobile equipment, machine tools, and industrial applications, this coupler set ensures secure, leak-free connections under high and low pressures.

Key Features & Benefits:

• ISO 7241-B Interchangeable – Fully compatible with other ISO 7241-B couplings
• Hardened Steel Construction – Provides superior strength and durability
• Self-Sealing Poppet Valve – Prevents fluid loss and contamination
• Corrosion-Resistant ZN-Fe (CRIII) Plating – Enhances longevity
• Radial Locking Balls – Ensures secure and easy connection
• 304 Stainless Steel Spring – Corrosion-resistant for extended lifespan
• High Flow Performance – Efficient hydraulic fluid transfer

Technical Specifications:

• Body Material: Hardened Steel
• Finish: ZN-Fe (CRIII) Plating
• Seal Material: Nitrile Buna-N (NBR)
• Spring Material: 304 Stainless Steel
• Max Working Pressure: 3,600 PSI
• Burst Pressure (Coupled): 14,500 PSI
• Locking Type: Sleeve Lock

Flow Performance:

• Nominal Flow Rate: 3.17 GPM
• Max Flow Rate: 6.34 GPM

Interchangeable With:
