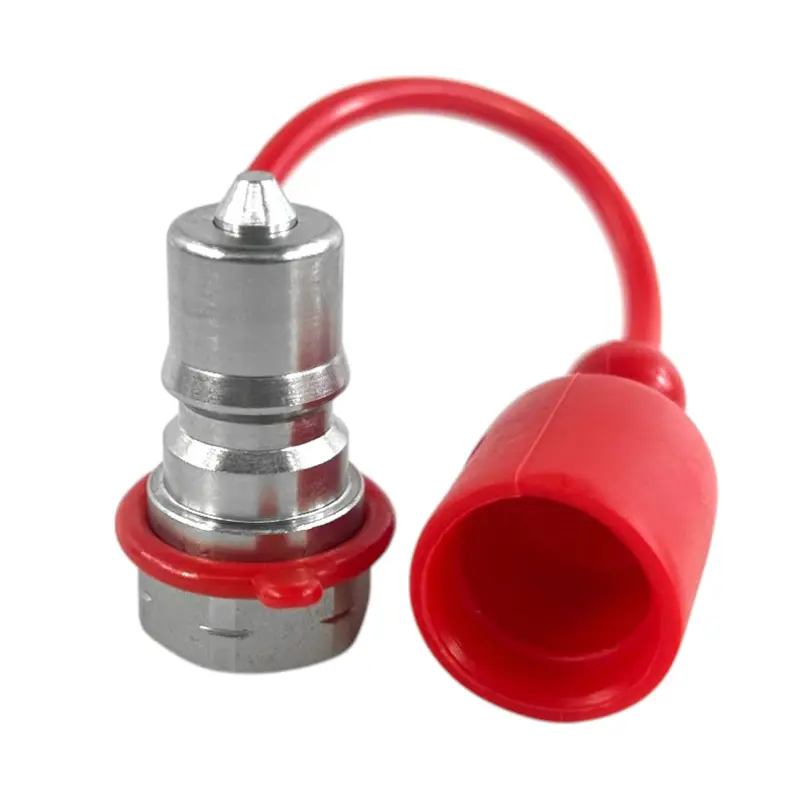

1/4″ ISO 7241-B Quick Disconnect Hydraulic Male Coupler, 3/8″ SAE Thread

1/4″ ISO 7241-B Quick Coupler – Male (3/8″ SAE ORB Thread)

• SKU: B14M-06S
• ISO Standard: 7241-B
• Body Size: 1/4″
• Thread Type: SAE/ORB
• Thread Size: 3/8″ (9/16-18 ORB)
• Coupling Type: Male Coupler
• Body Material: Hardened Steel

High-Performance Hydraulic Quick Coupler

The B14M-06S quick disconnect coupler is designed to ISO 7241-B standards, ensuring full compatibility with all standard ISO 7241-B hydraulic couplings. This male coupler features a self-sealing poppet valve, radial locking balls, and a corrosion-resistant finish, making it ideal for industrial machinery, mobile hydraulics, automotive, and aerospace applications.

Key Features & Benefits:

• ISO 7241-B Interchangeable – Compatible with all standard ISO 7241-B couplings
• Hardened Steel Body – Provides superior strength and durability
• Corrosion-Resistant ZN-Fe (CRIII) Plating – Protects against wear and rust
• Leak-Proof Sealing – Self-sealing poppet valve ensures secure operation
• 304 Stainless Steel Spring – Designed for long-lasting performance
• Radial Locking Balls – Offers secure coupling under high loads
• 3600 PSI Pressure Rating – High-pressure performance for hydraulic applications
• Compact & Lightweight – Perfect for tight-space installations

Technical Specifications:

• Body Material: Hardened Steel
• Finish: ZN-Fe (CRIII) Plating
• Seal Material: NBR (Buna-N)
• Spring Material: 304 Stainless Steel
• Max Working Pressure: 3,600 PSI
• Burst Pressure (Coupled): 14,500 PSI
• Nominal Flow Rate: 3.2 GPM
• Max Flow Rate: 6.34 GPM
• Locking Type: Sleeve Lock

Dimensions:

Male Coupler:

• Face Diameter: 0.55” (13.97mm)
• Length: 1.37” (39.79mm)
• Hex Size: 0.74” (18.79mm)

What’s Included?

• 1 x Male Quick Coupler

Product Details:

• ISO Standard: 7241-B
• Style: ISO 7241-B
• Body Size: 1/4″
• Thread Type: SAE/ORB
• Thread Size: 3/8″ (9/16-18 ORB)
• Body Material: Hardened Steel
• Locking Type: Sleeve Lock
• Weight: 0.125 lbs
• Brand: AKSpare

Ideal for Various Hydraulic Applications:

• Industrial Machinery & Mobile Hydraulics
• Machine Tools & General-Purpose Hydraulics
• Automotive & Aerospace Equipment
