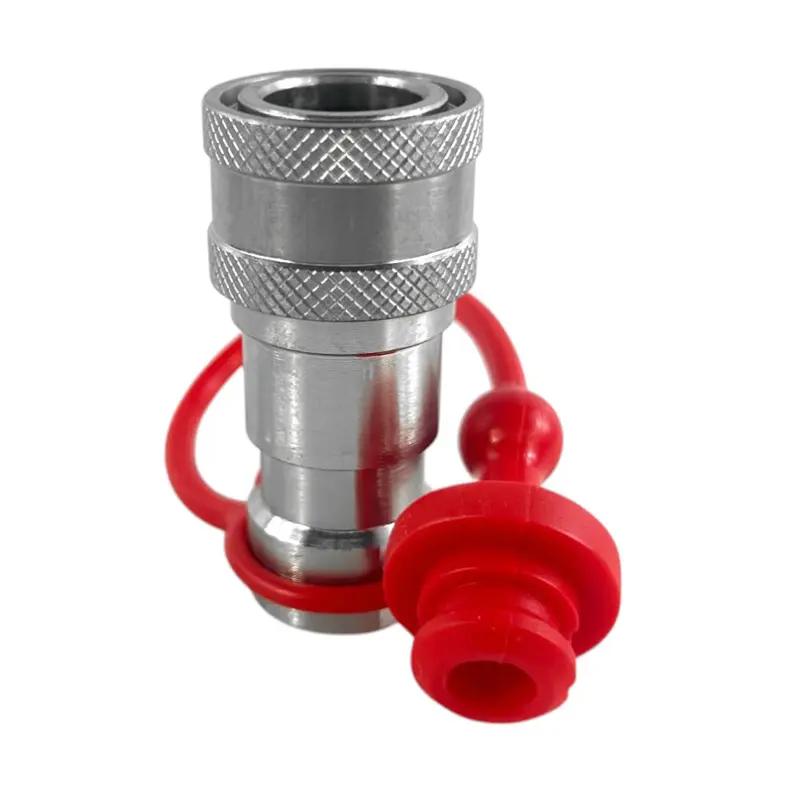

1/4″ ISO 7241-B Quick Coupler – Female (#6 SAE ORB Thread)
- SKU: B14F-06S
- ISO Standard: 7241-B
- Body Size: 1/4″
- Thread Type: SAE / ORB
- Thread Size: #6 (9/16-18 ORB)
- Coupling Type: Female Coupler
- Body Material: Hardened Steel
High-Performance Hydraulic Quick Coupler
The B14F-06S quick disconnect coupler is built to ISO 7241-B standards, ensuring compatibility with a wide range of hydraulic applications, including aerospace, automotive, electronics, industrial machinery, and mobile hydraulics. Designed for durability and high-pressure performance, this coupler features a self-sealing poppet valve and radial locking balls for a secure, leak-free connection.
Key Features & Benefits:
- ISO 7241-B Interchangeable – Works with all standard ISO 7241-B couplings
- Durable Carbon Steel Construction – Built to withstand demanding conditions
- Corrosion-Resistant Plating – ZN-Fe (CRIII) finish for enhanced longevity
- Reliable Sealing – Self-sealing poppet valve ensures tight connections under high and low pressures
- High-Pressure Rated – 3,600 PSI working pressure and 14,500 PSI burst pressure
- 304 Stainless Steel Spring – Provides superior corrosion resistance
- Compact Design – Ideal for smaller hydraulic systems requiring precise flow control
Technical Specifications:
- Body Material: Hardened Steel
- Finish: ZN-Fe (CRIII) Plating
- Spring Material: 304 Stainless Steel
- Seal Material: NBR (Buna-N)
- Max Working Pressure: 3,600 PSI
- Burst Pressure (Coupled): 14,500 PSI
- Nominal Flow Rate: 3.2 GPM
- Max Flow Rate: 6.34 GPM
- Locking Type: Sleeve Lock
Dimensions:
Female Coupler:
- Face Diameter: 1.1” (24.94mm)
- Length: 2.26” (57.40mm)
- Hex: 0.74” (18.79mm)
What’s Included?
- 1 x Female Quick Coupler
Product Details:
- ISO Standard: 7241-B
- Style: ISO 7241-B
- Body Size: 1/4″
- Thread Type: SAE / ORB
- Thread Size: #6 (9/16-18 ORB)
- Body Material: Hardened Steel
- Locking Type: Sleeve Lock
- Weight: 0.29 lbs
- Brand: AKSpare
Ideal For:
- Hydraulic Systems in Aerospace, Automotive, Electronics, and Industrial Applications
- Compact Hydraulic Equipment with High-Pressure Requirements
- Machine Tools, Mobile Hydraulics, and General-Purpose Machinery
