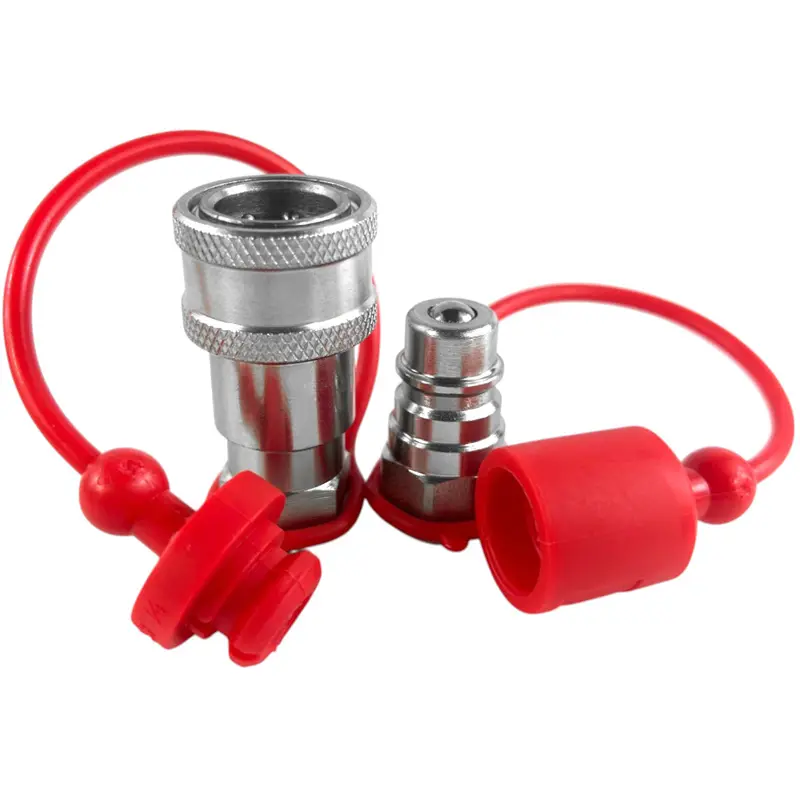

1/4″ Body AG ISO 5675, Ball Style, Hydraulic Quick Connect Coupler Set, 1/4″ NPT Thread

1/4″ ISO 5675 Hydraulic Quick Coupler Set – Ball Valve, 1/4″ NPT

SKU: AG14-04N-B-SET

This 1/4″ hydraulic quick coupler set includes both male and female couplers, designed for seamless quick connection and disconnection. Built for agriculture, construction, and logging, these ISO 5675 couplers are interchangeable with standard ball seat valve, poppet seal, and push-pull couplings.

Key Features:

• ISO 5675 compliant – Interchangeable with other standard couplings
• Ball valve design for reliable performance and leak-free sealing
• Hardened steel construction for durability and long-lasting use
• Buna-N seals with Teflon backup withstand temperatures up to 250°F
• High-pressure rating for demanding hydraulic applications

Specifications:

• ISO Body Size: 1/4″
• Thread Type: NPT
• Port Thread Size: 1/4″ NPT
• Max Pressure: 5100 PSI
• Max Flow Rate: 6.34 GPM
• Male Length: 1.380″
• Female Length: 1.931″
• Coupled Length: 2.75″
• Hex Size: 0.751″

What’s Included:

• 1 x 1/4″ Female Hydraulic Quick Coupler
• 1 x 1/4″ Male Hydraulic Quick Coupler
