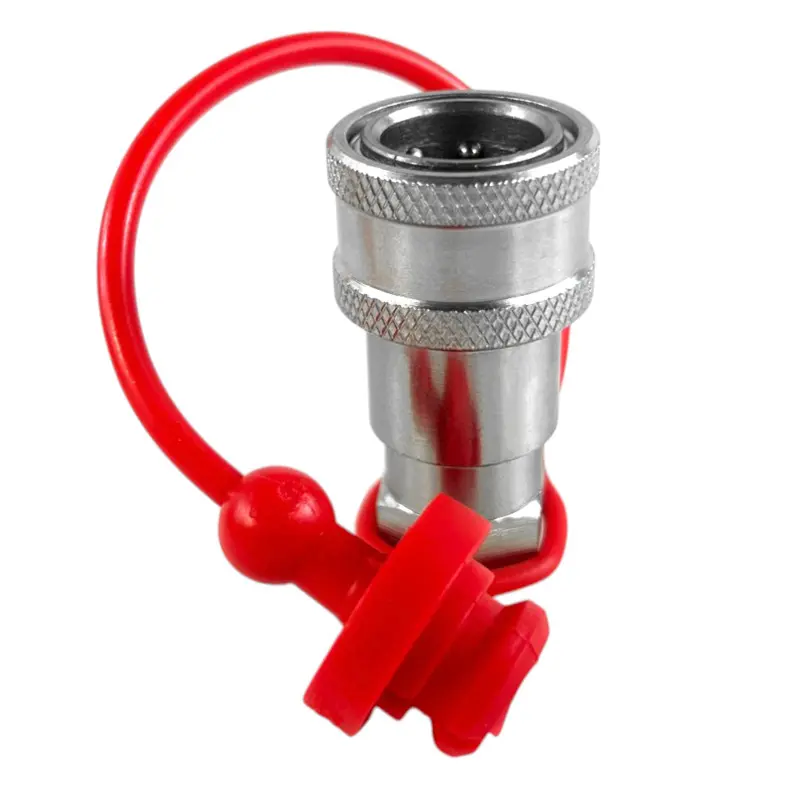

1/4” NPT Female Hydraulic Quick Coupler – ISO 5675 Standard
SKU: AG14F-04N
- Commonly used in: Agriculture, Construction, and Logging Industries
- Interchangeable with: All ISO 5675 series, including ball seat valve, poppet seal, and push-pull couplings
Specifications:
- ISO Body Size: 1/4”
- Thread Type: 1/4” NPT
- Max Pressure: 5,100 PSI
- Max Flow Rate: 6.34 GPM
- Nominal Flow Rate: 3.2 GPM
- Valve Type: Poppet Valve
- Locking Mechanism: Radial Locking Balls
- Connection Type: Manual Push-to-Connect & Disconnect
- Material: Hardened Steel with Corrosion-Resistant Plating
- Seals: Buna-N with Teflon Backup Ring (Operating Temperature: Up to 250°F)
Dimensions:
- Female Face Diameter: 1.026” (26mm)
- Female Coupler Length: 1.931” (49mm)
- Hex Size: 0.751” (19mm)
Benefits:
- General Purpose: Ideal for hydraulic applications
- ISO 5675 Interchangeable: Works with other standard couplers
- Easy One-Handed Connection: Push-to-connect design for quick operation
- Secure Seal: Nipple seal resists blowouts
- Durable Construction: Designed for heavy-duty applications
Interchangeable with:
| Manufacturer | Female Coupler |
|---|---|
| SUMMIT | AG14F-04N |
| Parker 4000 Series | 4050-2P |
| Safeway S20 Series | S25A-2P |
| Faster NV/NS Series | NV 14 NPT F |
| Snap-Tite 60/21 Series</strong > | 60C4-4F |
| Stucchi IRV Series | 800101000 / F IR14V NPT |
| Dixon AG Series | 2AGF2-PV |
| Eaton/Aeroquip FD42 | FD42–1001–04–04 |
What’s Included?
- 1 x Female Quick Coupler
- 1 x Female Dust Cap
