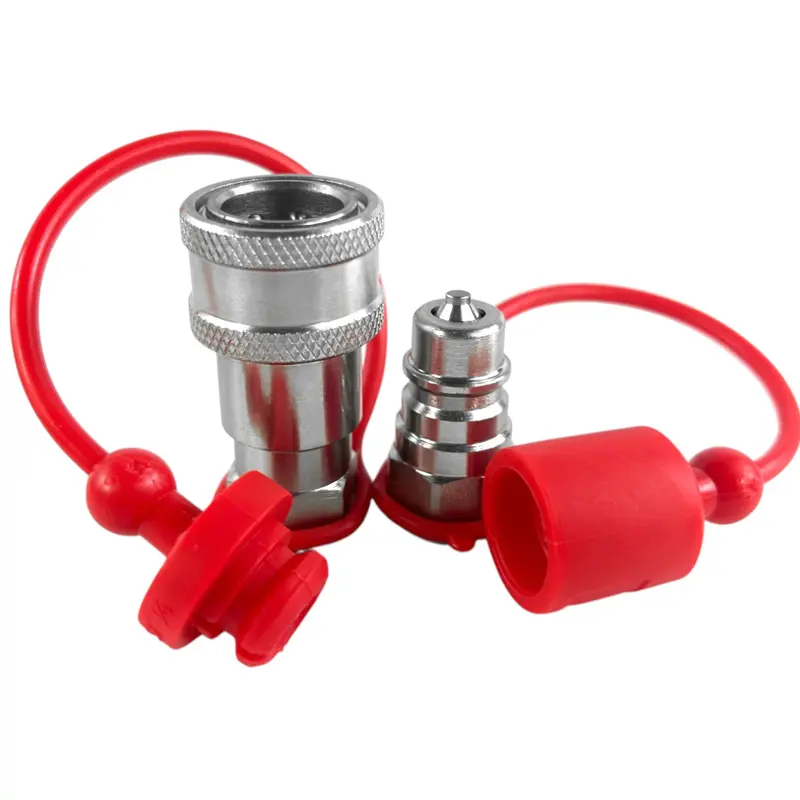

1/4” NPT Hydraulic Quick Coupler Set – ISO 5675 Standard
SKU: AG14-04N-SET
- Commonly used in: Agriculture, Construction, and Logging Industries
- Interchangeable with: All ISO 5675 series, including ball seat valve, poppet seal, and push-pull couplings
Specifications:
- ISO Body Size: 1/4”
- Thread Type: 1/4” NPT
- Max Pressure: 5,100 PSI
- Max Flow Rate: 6.34 GPM
- Valve Type: Poppet Valve
- Material: Hardened Steel with Corrosion-Resistant Plating
- Seals: Buna-N with Teflon Backup Ring (Operating Temperature: Up to 250°F)
Dimensions:
- Female Coupler Length: 1.931”
- Male Coupler Length: 1.380”
- Coupled Length: 2.75”
- Hex Size: 0.751”
Interchangeable with:
| Manufacturer | Male Coupler | Female Coupler |
|---|---|---|
| SUMMIT | AG14M-04N | AG14F-04N |
| Parker 4000 Series | 4010-2P | 4050-2P |
| Safeway S20 Series | S41-2P | S25A-2P |
| Faster NV/NS Series | NV 14 NPT M | NV 14 NPT F |
| Snap-Tite 60/21 Series</strong > | 60C4-4M | 60C4-4F |
| Stucchi IRV Series | 800101001 / M IR14V NPT | 800101000 / F IR14V NPT |
| Dixon AG Series | AG2F2-PV | 2AGF2-PV |
| Eaton/Aeroquip FD42 | FD42–1002–04–04 | FD42–1001–04–04 |
What’s Included?
- 1 x Male Quick Coupler
- 1 x Female Quick Coupler
- 1 x Male Dust Cap
- 1 x Female Dust Cap
