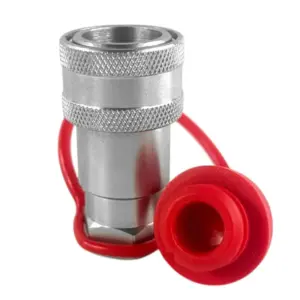

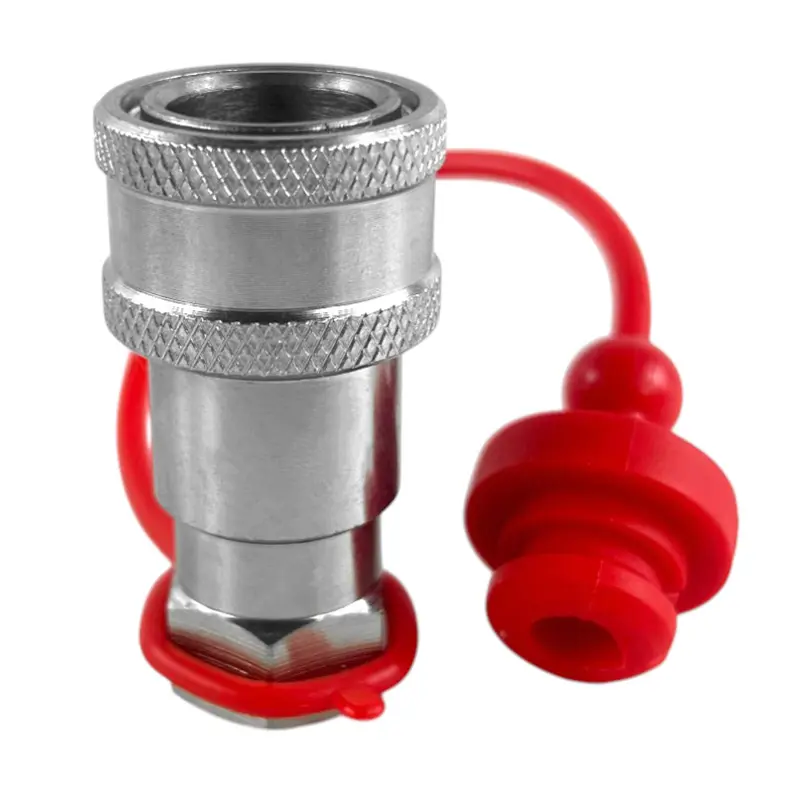

1/4″ ISO 5675 Hydraulic Quick Coupler – Female, 1/4″ NPT, Ball Valve
SKU: AG14F-04N-B
This 1/4″ ISO 5675 female quick coupler is designed for agricultural, construction, and logging hydraulic applications. Featuring a ball valve mechanism, it provides reliable, leak-resistant connections. Built with hardened steel and Buna-N seals with a Teflon backup ring, this coupler offers durability and high-performance operation.
Key Features:
- ISO 5675 compliant – interchangeable with other standard couplings
- Ball valve design for consistent sealing performance
- Hardened steel construction for superior durability
- Buna-N seals with Teflon backup withstands up to 250°F
- Compact and robust design
Specifications:
- ISO Body Size: 1/4″
- Thread Type: NPT
- Port Thread Size: 1/4″ NPT
- Max Pressure: 5100 PSI
- Max Flow Rate: 6.34 GPM
- Female Length: 1.931″
- Hex Size: 0.751″
Compatibility:
This ball valve female coupler connects to a matching male coupler and is interchangeable with other standard ISO 5675 couplers. We also offer 1/4″ poppet-style couplers, which are compatible with the ball valve versions.
