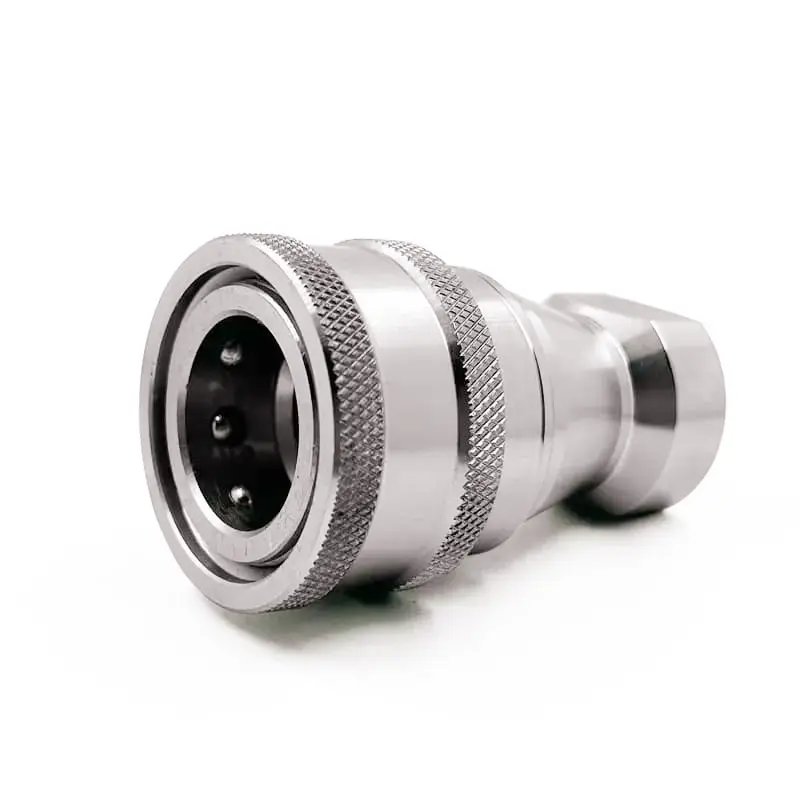

1/2″ NPT Stainless Steel ISO 7241-B Female Quick Disconnect Coupler
Durable, High-Performance Hydraulic Coupler for Corrosive Environments
SKU: BSS12F-08N
The ISO 7241-B Series 1/2″ NPT Female Quick Disconnect Coupler is built for demanding hydraulic applications in aerospace, automotive, marine, and industrial machinery. Constructed from premium 316 or 304 stainless steel, this coupler offers exceptional corrosion resistance, making it ideal for harsh and high-pressure environments.
This female coupler connects effortlessly with its male counterpart and is fully interchangeable with all ISO 7241-B series couplings. A complete set (male and female coupler) is also available.
Key Benefits:
- 316 or 304 Stainless Steel Body – Superior corrosion resistance, perfect for marine, chemical, and industrial applications.
- Self-Sealing Poppet Valve – Ensures leak-free operation under both high and low pressures.
- ISO 7241-B Standard Compatibility – Universally interchangeable with all ISO 7241-B series couplers.
- High-Performance Viton® (FKM) Seals – Resistant to extreme temperatures, hydraulic fluids, and chemicals.
- Extreme Pressure & Temperature Tolerance – Rated for 3,600 PSI working pressure and up to 14,500 PSI burst pressure (coupled).
- Manual Sleeve Locking Mechanism – Provides secure connections with quick and easy coupling/uncoupling.
- Temperature Range: -15°F to +400°F – Reliable performance in extreme conditions.
Specifications:
- Body Size: 1/2″
- Thread Type: NPT
- Thread Size: 1/2″
- Material: 316 or 304 Stainless Steel
- Locking Type: Sleeve
- Seal Material: Viton® (FKM)
- Working Pressure: 3,600 PSI
- Burst Pressure (Coupled): 14,500 PSI
- Nominal Flow Rate: 12 GPM
- Maximum Flow Rate: 23.78 GPM
- Female Face Diameter: 1.73” (44mm)
- Female Length: 2.95” (75mm)
- Hex Size: 1.06” (27mm)
- Weight: 0.79 lbs
316 Stainless Steel Variant – Interchangeable With:
| Manufacturer | Female Coupler |
|---|---|
| SUMMIT | BSS12F-08N |
| Parker 60 Series | SSH4-62Y |
| Safeway SS10 Series | SS105-4 |
| Faster HNV Stainless Steel</strong > | HNV 12 NPT F 2V |
| Snap-Tite 72 Series | SS72C8-8F |
| Stucchi IRBX Series | F IRBX12 NPT |
| Dixon H-Series | 4HF4-SS |
| Eaton HK Series | LL4HP26 |
| DNP HNV Series | HNV-SS316-08-08-C-NPT |
What’s Included?
- 1 x 1/2″ NPT Stainless Steel Female Coupler
This ISO 7241-B 1/2” Stainless Steel Female Quick Disconnect Coupler is the perfect choice for high-performance hydraulic systems in extreme environments.
