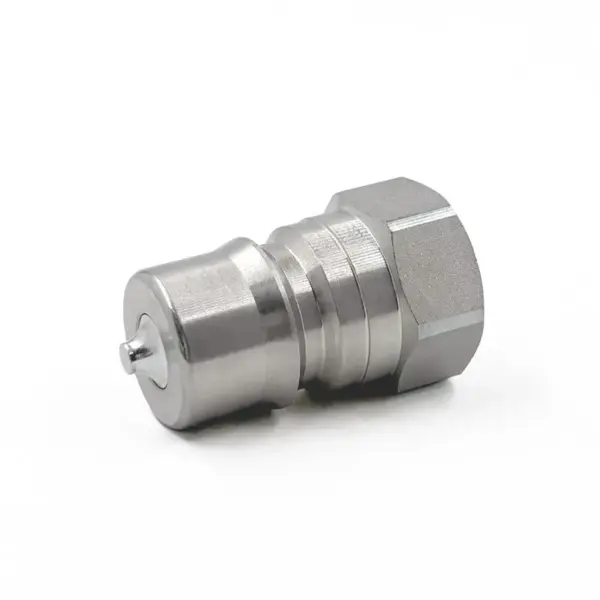

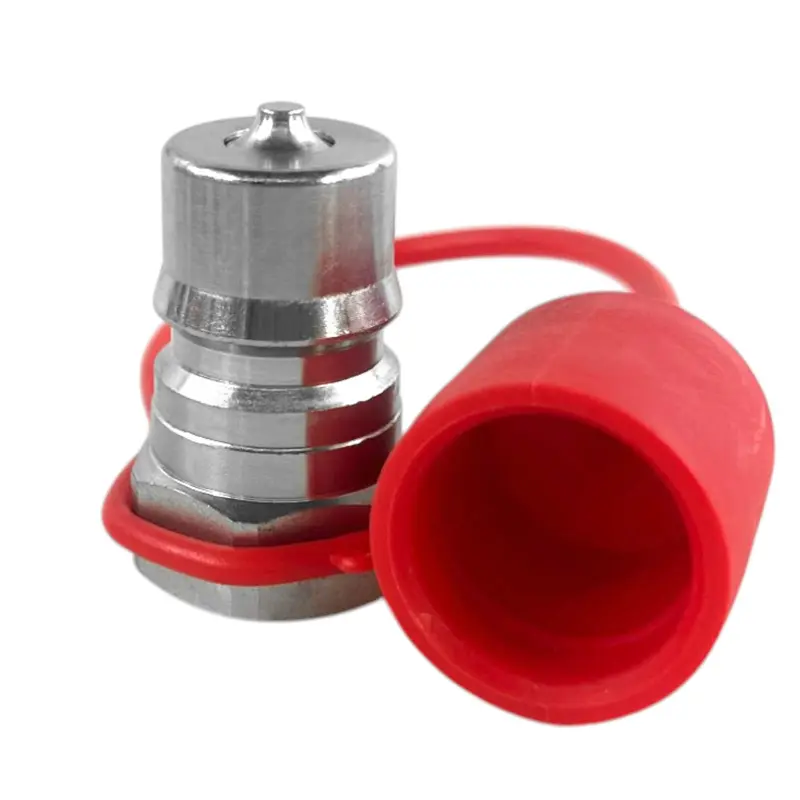

1/2″ NPT ISO 7241-B Quick Disconnect Hydraulic Male Coupler

1/2″ ISO 7241-B Quick Coupler – Male (1/2″ NPT Thread)

• SKU: B12M-08N
• ISO Standard: 7241-B
• Body Size: 1/2″
• Thread Type: NPT
• Thread Size: 1/2″ NPT
• Coupling Type: Male Coupler
• Body Material: Hardened Steel

High-Performance Hydraulic Quick Coupler

The B12M-08N quick disconnect coupler is manufactured to ISO 7241-B standards, ensuring full compatibility with all standard ISO 7241-B hydraulic couplings. It features a self-sealing poppet valve for secure leak-proof operation, a hardened steel body for extreme durability, and radial locking balls for secure engagement. This male coupler is ideal for industrial machinery, mobile hydraulics, machine tools, aerospace, automotive, and general-purpose hydraulic applications.

Key Features & Benefits:

• ISO 7241-B Interchangeable – Compatible with all standard ISO 7241-B couplings
• Hardened Steel Construction – Designed for high-pressure hydraulic applications
• Self-Sealing Poppet Valve – Provides reliable sealing under high and low pressures
• 304 Stainless Steel Spring – Ensures long-lasting durability
• Corrosion-Resistant ZN-Fe (CRIII) Plating – Protects against rust and wear
• Radial Locking Balls – Offers a secure connection and smooth engagement
• 3600 PSI Pressure Rating – High-pressure handling for demanding applications
• Lightweight & Compact – Optimized for performance in confined spaces

Technical Specifications:

• Body Material: Hardened Steel
• Finish: ZN-Fe (CRIII) Plating
• Seal Material: NBR (Buna-N)
• Spring Material: 304 Stainless Steel
• Max Working Pressure: 3,600 PSI
• Burst Pressure (Coupled): 14,500 PSI
• Locking Type: Sleeve Lock

Flow Performance:

• Nominal Flow Rate: 12 GPM
• Max Flow Rate: 24 GPM

Dimensions:

Male Coupler:

• Face Diameter: 0.93” (26.5mm)
• Length: 1.83” (46.5mm)
• Hex Size: 1.06” (27mm)

Interchangeable With:
