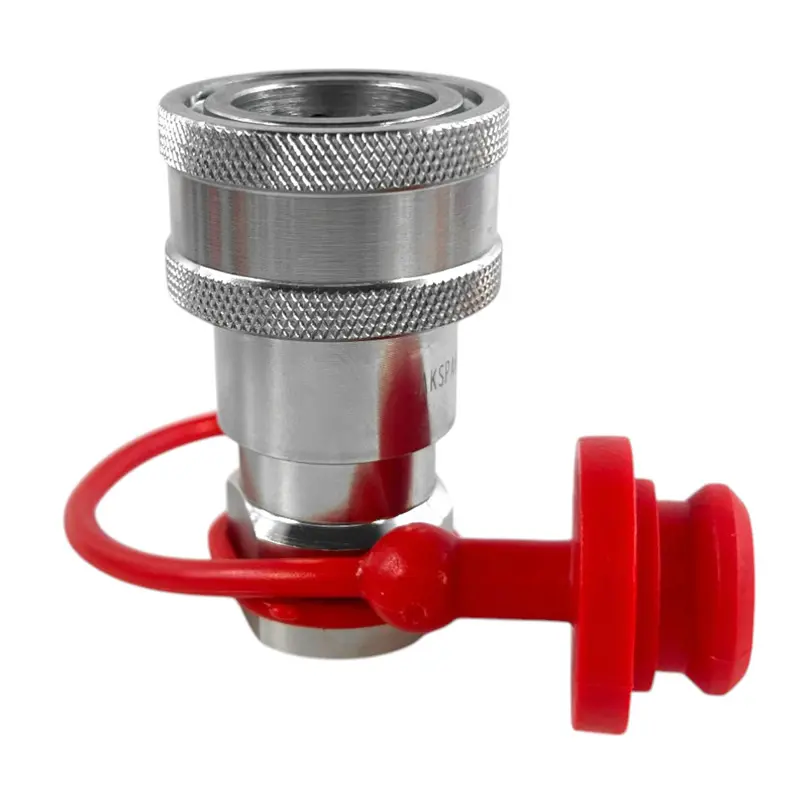

1/2″ NPT ISO 7241-B Quick Disconnect Hydraulic Female Coupler

1/2″ ISO 7241-B Quick Coupler – Female (1/2″ NPT Thread)

• SKU: B12F-08N
• ISO Standard: 7241-B
• Body Size: 1/2″
• Thread Type: NPT
• Thread Size: 1/2″
• Coupling Type: Female Coupler
• Body Material: Hardened Steel

High-Performance Hydraulic Quick Coupler for Industrial Use

The B12F-08N quick disconnect coupler is built to ISO 7241-B standards, ensuring universal compatibility with all standard ISO 7241-B hydraulic couplings. Featuring hardened steel construction, self-sealing poppet valve, and radial locking balls, this coupler guarantees secure and leak-proof connections under both high and low pressure conditions.

Designed for automotive, aerospace, industrial machinery, and mobile hydraulics, this coupler delivers exceptional durability, corrosion resistance, and high flow efficiency.

Key Features & Benefits:

• ISO 7241-B Interchangeable – Compatible with all standard ISO 7241-B couplings
• Heavy-Duty Hardened Steel Body – Provides superior strength and longevity
• Corrosion-Resistant ZN-Fe (CRIII) Plating – Protects against rust and wear
• Reliable Sealing – Self-sealing poppet valve prevents leaks under varying pressures
• High-Pressure Rated – 3,600 PSI working pressure, 14,500 PSI burst pressure
• 304 Stainless Steel Spring – Ensures long-lasting performance in harsh environments
• Optimized Hydraulic Flow – Engineered for maximum efficiency

Technical Specifications:

• Body Material: Hardened Steel
• Finish: ZN-Fe (CRIII) Plating
• Spring Material: 304 Stainless Steel
• Seal Material: NBR (Buna-N)
• Max Working Pressure: 3,600 PSI
• Burst Pressure (Coupled): 14,500 PSI
• Locking Type: Sleeve Lock

Dimensions:

Female Coupler

• Face Diameter: 1.73” (44mm)
• Length: 2.95” (75mm)
• Hex: 1.06” (27mm)
