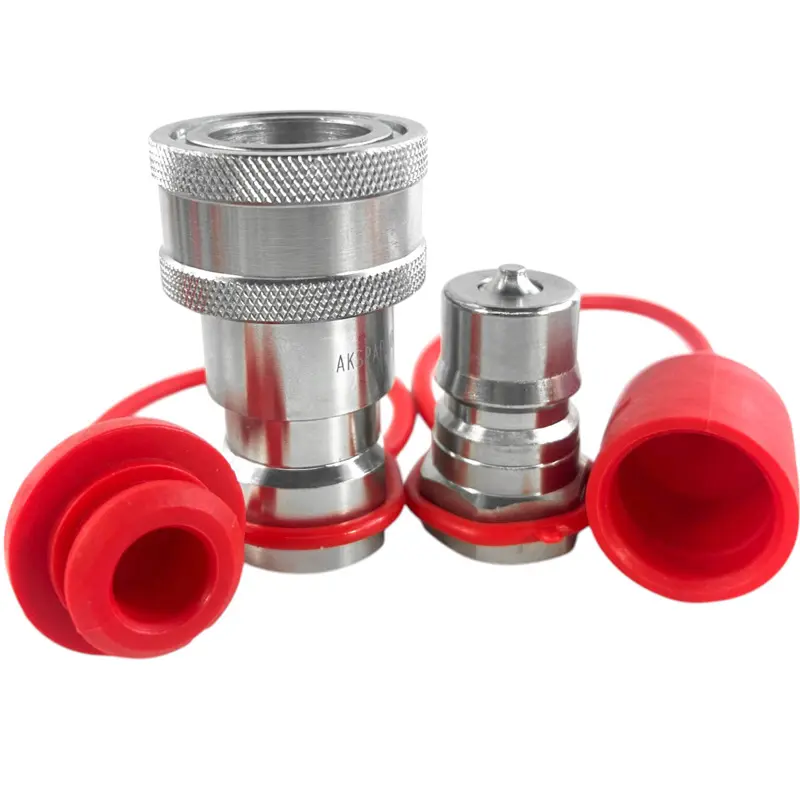

1/2″ NPT ISO 7241-B Quick Disconnect Hydraulic Coupler Set

1/2″ ISO 7241-B Hydraulic Quick Coupler Set (1/2″ NPT Thread, Male & Female)

• SKU: B12-08N-SET
• ISO Standard: 7241-B
• Body Size: 1/2″
• Thread Type: NPT
• Thread Size: 1/2″ NPT
• Coupling Type: Male & Female Set
• Body Material: Hardened Steel

Premium Hydraulic Quick Coupler Set

The B12-08N-SET quick disconnect coupler set includes one male and one female coupler, designed to ISO 7241-B standards for seamless interchangeability. These couplers are widely used in hydraulic systems for construction, agriculture, mobile hydraulics, and general industrial applications. The poppet valve mechanism ensures leak-free performance under both high and low pressures, making it an excellent choice for demanding hydraulic applications.

Key Features & Benefits:

• ISO 7241-B Interchangeable – Compatible with all standard ISO 7241-B couplings
• Hardened Steel Construction – Provides superior durability and longevity
• Self-Sealing Poppet Valve – Ensures a tight, leak-proof seal
• 304 Stainless Steel Spring – Corrosion-resistant and long-lasting
• Radial Locking Balls – Secure connection with smooth operation
• Corrosion-Resistant ZN-Fe (CRIII) Plating – Enhances longevity and resistance to wear
• High Flow Capacity – Optimized for industrial hydraulic applications
• Wide Temperature Range – Withstands extreme operating conditions

Technical Specifications:

• Body Material: Hardened Steel
• Finish: ZN-Fe (CRIII) Plating
• Seal Material: Nitrile Buna-N (NBR)
• Spring Material: 304 Stainless Steel
• Max Working Pressure: 3,675 PSI
• Burst Pressure (Coupled): 14,500 PSI
• Locking Type: Sleeve Lock

Flow Performance:

• Nominal Flow Rate: 12 GPM
• Max Flow Rate: 23.78 GPM
