1/2″ NPT ISO 7241-B Brass Quick Disconnect Hydraulic Coupler Set

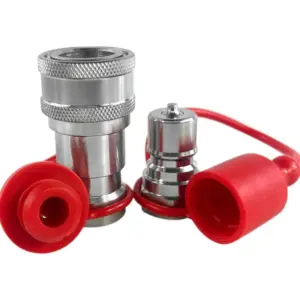

1/2″ NPT Brass ISO 7241-B Quick Coupler Set (Male & Female)

Reliable Quick-Disconnect Coupler Set for Industrial & Mobile Hydraulic Systems
SKU: BB12-08N-SET

The ISO 7241-B Series 1/2″ NPT Quick Coupler Set includes both a male and female coupler, providing a secure, high-flow connection for hydraulic systems. Constructed from corrosion-resistant brass, this set is ideal for industrial, mobile hydraulics, automotive, and petroleum applications.

With self-sealing poppet valves, these couplers prevent leaks and ensure optimal performance under both high and low pressures. Fully interchangeable with all ISO 7241-B series couplings, they seamlessly integrate with leading brands.

Key Benefits:

• Durable Brass Construction – Resists corrosion for long-lasting performance.
• Self-Sealing Poppet Valve – Prevents fluid leaks under varying pressures.
• ISO 7241-B Standard Compatibility – Interchangeable with major brands.
• Viton® (FKM) Seals – Provides excellent temperature and chemical resistance.
• Quick Sleeve Locking Mechanism – Ensures fast, secure connections.
• High Flow Capacity – Handles up to 12 GPM nominal and 23.78 GPM max flow.
• Wide Temperature Range: -15°F to +400°F – Suitable for demanding environments.

Specifications:

• Body Size: 1/2″
• Thread Type: NPT
• Thread Size: 1/2″
• Material: Brass
• Locking Type: Sleeve
• Seal Material: Viton® (FKM)
• Working Pressure: 2,600 PSI
• Nominal Flow Rate: 12 GPM
• Maximum Flow Rate: 23.78 GPM
• Female Face Diameter: 1.73” (44mm)
• Female Length: 2.95” (75mm)
• Male Face Diameter: 0.93” (23.5mm)
• Male Length: 1.83” (46.5mm)
• Hex Size: 1.06” (27mm)
• Weight: 1 lb
• Dimensions: 5″ × 5″ × 4″

Compatible Applications:

• Hydraulic Fluids
• Water
• Diesel / Petroleum

Interchangeable With:
