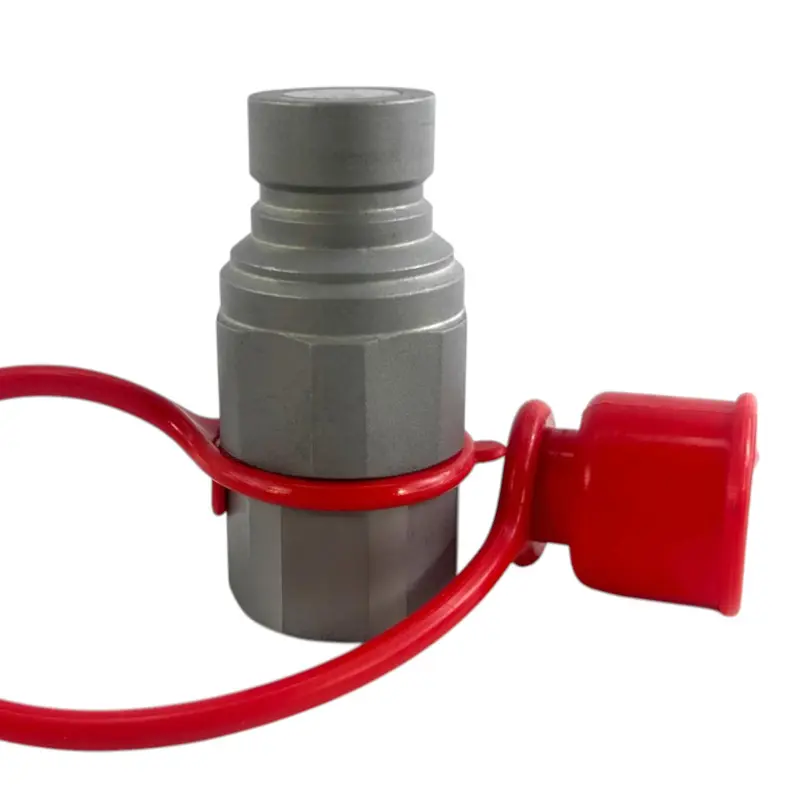

1/2” Male Flat Face Hydraulic Quick Coupler – 3/8” NPT Thread
SKU: FF12M-06N
This 1/2” male flat face hydraulic quick coupler is designed for high-pressure hydraulic systems, ensuring spill-resistant, contamination-free connections. The ISO 16028 flat face design reduces fluid loss and air inclusion, making it ideal for construction, agriculture, and industrial applications. Built from hardened steel with zinc-nickel plating, it provides superior durability and corrosion resistance.
Key Features & Benefits
- ISO 16028 Standard Compatibility – Easily connects with matching female flat face couplers.
- Leak-Resistant Flush Face Design – Minimizes fluid loss and prevents air inclusion.
- Heavy-Duty Performance – 5,076 PSI pressure rating for high-pressure applications.
- High Flow Rate – Handles up to 23.78 GPM max flow rate.
- Robust Steel Construction – Built for durability and impact resistance.
- Corrosion Protection – Zinc-nickel plating ensures long-lasting performance.
- Locking Sleeve – Prevents accidental disconnections for secure operation.
- Single-Handed Connection – Push-to-connect design for ease of use.
- Temperature-Resistant Seals – Buna-N seals with Teflon backup ring, rated up to 250°F.
Specifications
- ISO Standard: 16028
- Body Size: 1/2″
- Thread Type: NPT
- Thread Size: 3/8″
- Max Pressure: 5,076 PSI
- Max Flow Rate: 23.78 GPM
- Nominal Flow Rate: 12 GPM
- Seal Material: Buna-N with Teflon backup ring
- Face Diameter: 0.94″ (24.5mm)
- Length: 2.87” (73mm)
- Hex Size: 1.42” (36mm)
- Body Material: Hardened Steel
- Locking Type: Ball
