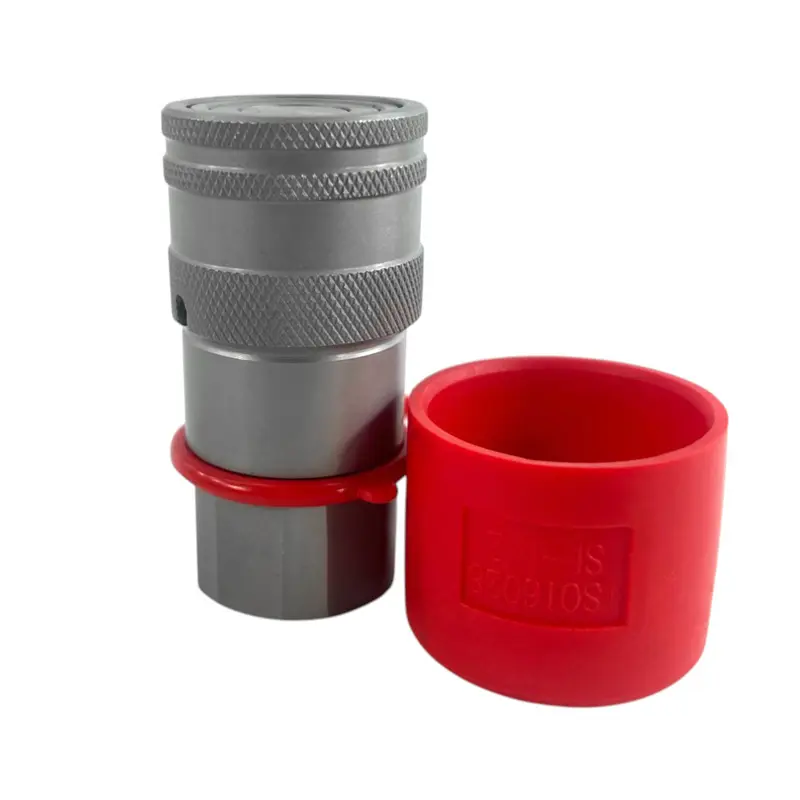

1/2″ Flat Face Hydraulic Quick Connect Female Coupler, 3/8″ NPT Thread

1/2″ Flat Face Hydraulic Quick Coupler (Female) – 3/8″ NPT Thread

SKU: FF12F-06N

This 1/2″ female flat face hydraulic quick coupler is designed for secure, leak-free hydraulic connections, minimizing fluid loss and air inclusion. Built from hardened steel with zinc-nickel corrosion-resistant plating, it ensures long-lasting durability and high performance in demanding applications.

Key Benefits

• Flush Face Valve Design – Reduces fluid loss and prevents contamination
• Locking Sleeve Mechanism – Prevents accidental disconnection for added safety
• Corrosion-Resistant Zinc-Nickel Plating – Superior protection in harsh environments
• Durable Hardened Steel Construction – Ensures long service life
• Minimal Pressure Drops – Optimized internal flow design for efficiency
• Easy One-Handed Push-Connect Operation – Quick and convenient use
• Reliable Sealing – Nipple seal resists blow-outs
• ISO 16028 Compatibility – Interchangeable with other standard flat face couplings

Specifications

• Body Size: 1/2″
• Port Thread: 3/8” NPT
• Max Pressure: 5,076 PSI
• Max Flow Rate: 23.78 GPM
• Nominal Flow Rate: 12 GPM
• Seal Material: Buna-N with Teflon backup ring (operating up to 250°F)
• Face Diameter: 1.50” (38mm)
• Length: 3.43” (87mm)
• Hex Size: 1.42” (36mm)
• Locking Type: Ball Lock
• Body Material: Hardened Steel
• Brand: AKSpare

This female coupler pairs with our FF12M-06N male coupler, or you can purchase the full set (FF12-06N-SET) for a ready-to-use hydraulic connection.
