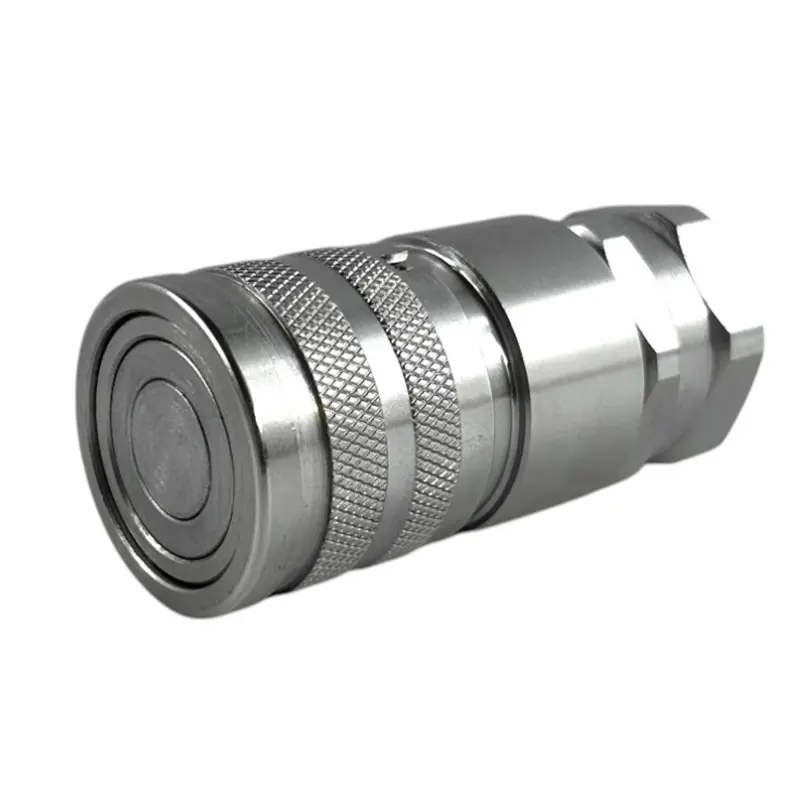

1/2″ Flat Face High Flow Hydraulic Quick Connect Female Coupler – 3/4″ SAE (ISO 16028, Carbon Steel)
SKU: FF12F-12S-GEM
The FF12F-12S-GEM is a 1/2″ body size flat face female quick coupler engineered to ISO 16028 standards, ensuring full interchangeability with other ISO 16028 couplings. Its flush face valve design minimizes fluid loss and air inclusion, improving cleanliness and efficiency in hydraulic systems.
Constructed from hardened carbon steel with galvanized treatment, this coupler is built for high-pressure performance and long-term durability in agriculture, industrial, construction, marine, mining, and heavy equipment applications.
Key Features & Benefits
- Hardened Carbon Steel Construction – Withstands demanding hydraulic environments
- Flush Face Valve Design – Reduces fluid loss, air inclusion, and contamination
- High Flow Efficiency – Ensures minimal pressure drop
- Single-Handed Push-Connect Mechanism – Allows quick and easy connections
- High-Pressure Performance – Rated for 6,090 PSI
- Interchangeable with ISO 16028 Standard Couplings – Ensures compatibility with various hydraulic systems
- Nipple Seal Resists Blow-Outs – Enhances safety and prevents leaks
Specifications
- Body Size: 1/2″
- Thread Type: SAE / ORB
- Thread Size: 3/4″ SAE
- Max Operating Pressure: 6,090 PSI
- Max Flow Rate: 18 GPM
- Female Face Diameter: 1.5”
- Female Length: 3.41”
- Hex Size: 1.34”
- Locking Mechanism: Sleeve Lock
- Finish: Galvanized Treatment for Corrosion Resistance
Applications
- Hydraulic Systems
- Construction Equipment
- Agricultural Machinery
- Heavy Equipment & Mining
- Skid Steers & Industrial Applications
Interchangeable With:
| Manufacturer | Female Coupler |
|---|---|
| SUMMIT | FF12F-12S |
| Parker FE Series | FEM-501-12FO |
| Safeway FFE49 Series | FFE495-4-12 |
| Faster FFH Series | FFH08 34SAE F |
| Eaton Aeroquip FD89 | FD89-1005-12-08 |
| Snap-Tite 74 Series | 74C8-12EM |
| Stucchi FIRG Series | 800804008 |
| Dixon HT Series | 4HTOF6 |
| DNP PLT4 Series | FF-HPG-08-12C-SAE |
| Tomco FE Series | EC4-12 |
Compatible With:
- Bobcat (2001 or older): 7753, 773, 863, 873, 963
- John Deere: 325, 328, 332
- GEHL: 4640, 4840, 5640, 6640
- Volvo: MC90, MC110
- ASV: RC100
What’s Included in the Kit?
- 1x 1/2″ Flat Face Female Quick Coupler (3/4″ SAE)
This heavy-duty ISO 16028 flat face hydraulic coupler is designed for high-flow, high-pressure applications while ensuring minimal contamination and easy operation.
