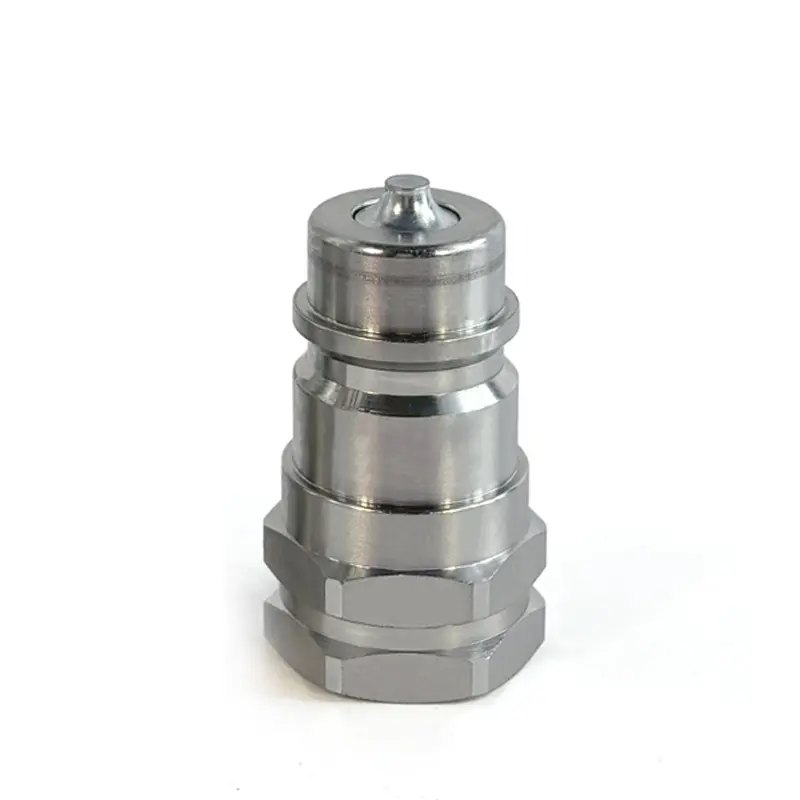

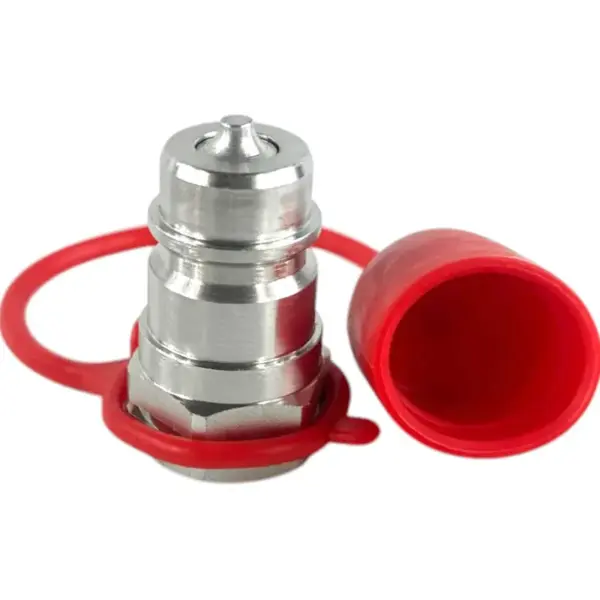

1/2″ Ag Hydraulic Quick Connect Male Coupler, Poppet Valve, #8 SAE (3/4″-16 ORB) Thread

1/2″ ISO 5675 Male Hydraulic Quick Coupler – Dash -8, SAE #8 ORB, 3600 PSI, Poppet Valve

SKU: AG12M-08S

The AG12M-08S Male Quick Coupler is a high-performance hydraulic connector designed for agriculture, construction, and logging equipment. It features a #8 SAE ORB (3/4″-16) female thread and is fully interchangeable with ISO 5675 Pioneer-style couplers and 1/2” body ISO 7241-A standard couplings.

With a poppet valve design, hardened steel body, and precision-machined sealing surfaces, this coupler ensures reliable, leak-free performance under high-pressure conditions.

Key Benefits & Features

• ISO 5675 & ISO 7241-A Compatible – Works with all Pioneer-style quick couplers
• Durable Hardened Steel Construction – Resists wear and extends lifespan
• High-Pressure Rating – 3600 PSI operating pressure
• Optimized Flow – 12 GPM nominal flow, 24 GPM max flow
• Poppet Valve Design – Provides secure hydraulic sealing and prevents leaks
• Manual Connection & Disconnection – Radial locking balls for secure attachment
• High-Temperature Resistance – Buna-N seals withstand up to 250°F
• Lightweight & Compact – Easy to install

Applications

• Agriculture & Farming Equipment
• Construction Machinery
• Forestry & Logging Equipment
• Hydraulic Implements & Attachments

Specifications

• ISO Standard: 5675 / 7241-A
• Thread Type: SAE / ORB
• Thread Size: #8 ORB (3/4″-16 Female)
• Body Size: 1/2″
• Valve Type: Poppet Valve
• Max Operating Pressure: 3,600 PSI
• Nominal Flow Rate: 12 GPM
• Maximum Flow Rate: 24 GPM
• Burst Pressure: 23,000 PSI (Coupled)
• Locking Mechanism: Sleeve with radial locking balls
• Material: Hardened Steel
• Sealing Type: Buna-N

Weight & Dimensions:

• Weight: Approx. 0.21 lbs
• Dimensions: 3″ x 3″ x 2″
