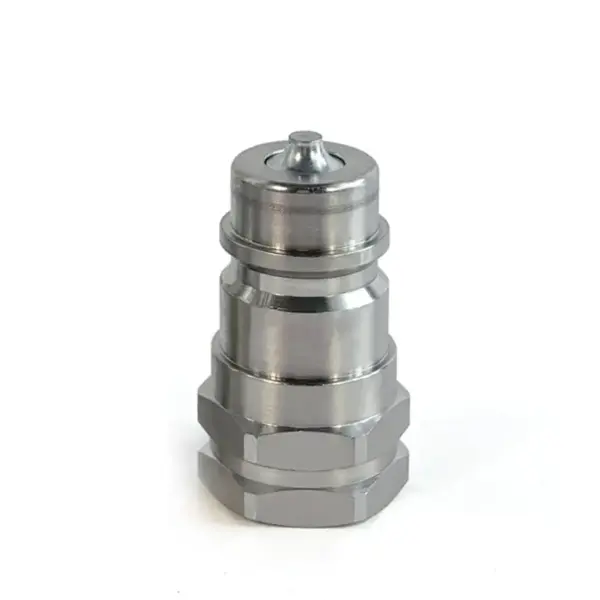

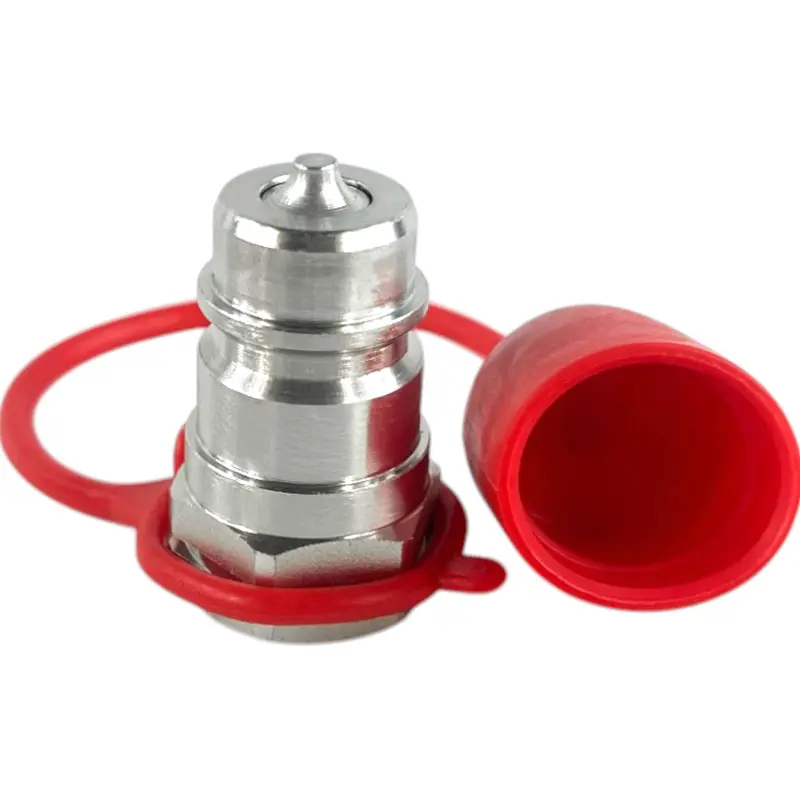

1/2″ Ag Hydraulic Quick Connect Male Coupler, Poppet Valve, #10 SAE (7/8″-14 ORB) Thread

1/2″ ISO 5675 Male Hydraulic Quick Coupler – Dash -10, SAE #10 ORB, 3600 PSI

SKU: AG12M-10S

The AG12M-10S Male Quick Coupler is a durable, high-performance hydraulic connector designed for agriculture, construction, and forestry equipment. Featuring a #10 SAE ORB (7/8-14) female thread, it is fully interchangeable with ISO 5675 Pioneer-style couplers and 1/2” body ISO 7241-A standard couplings.

Its hardened steel construction and ball valve design provide secure, leak-free hydraulic connections, making it ideal for high-pressure applications.

Key Benefits & Features

• ISO 5675 & ISO 7241-A Compatible – Works with all Pioneer-style quick couplers
• High-Pressure Rating – 3600 PSI operating pressure
• Heavy-Duty Hardened Steel – Built for long-lasting durability
• Optimal Flow Efficiency – Supports 12 GPM nominal flow, with a maximum flow of 24 GPM
• Ball Valve Design – Ensures secure hydraulic sealing
• Easy Manual Connection & Disconnection – Radial locking balls for secure attachment
• High-Temperature Resistance – Buna-N seals withstand up to 250°F
• Compact & Lightweight – Easy to install

Applications

• Agriculture & Farming Equipment
• Construction Machinery
• Forestry & Logging Equipment
• Hydraulic Implements & Attachments
• Bobcat Skid Steers & Loaders

Specifications

• ISO Standard: 5675 / 7241-A
• Thread Type: SAE / ORB
• Thread Size: #10 ORB (7/8″-14 Female)
• Body Size: 1/2″
• Max Operating Pressure: 3,600 PSI
• Nominal Flow Rate: 12 GPM
• Maximum Flow Rate: 24 GPM
• Burst Pressure: 23,000 PSI (Coupled)
• Locking Mechanism: Sleeve with radial locking balls
• Valve Type: Ball Valve
• Material: Hardened Steel
• Sealing Type: Buna-N

Weight & Dimensions:

• Weight: Approx. 0.19 lbs
• Dimensions: 3″ x 2″ x 2″
